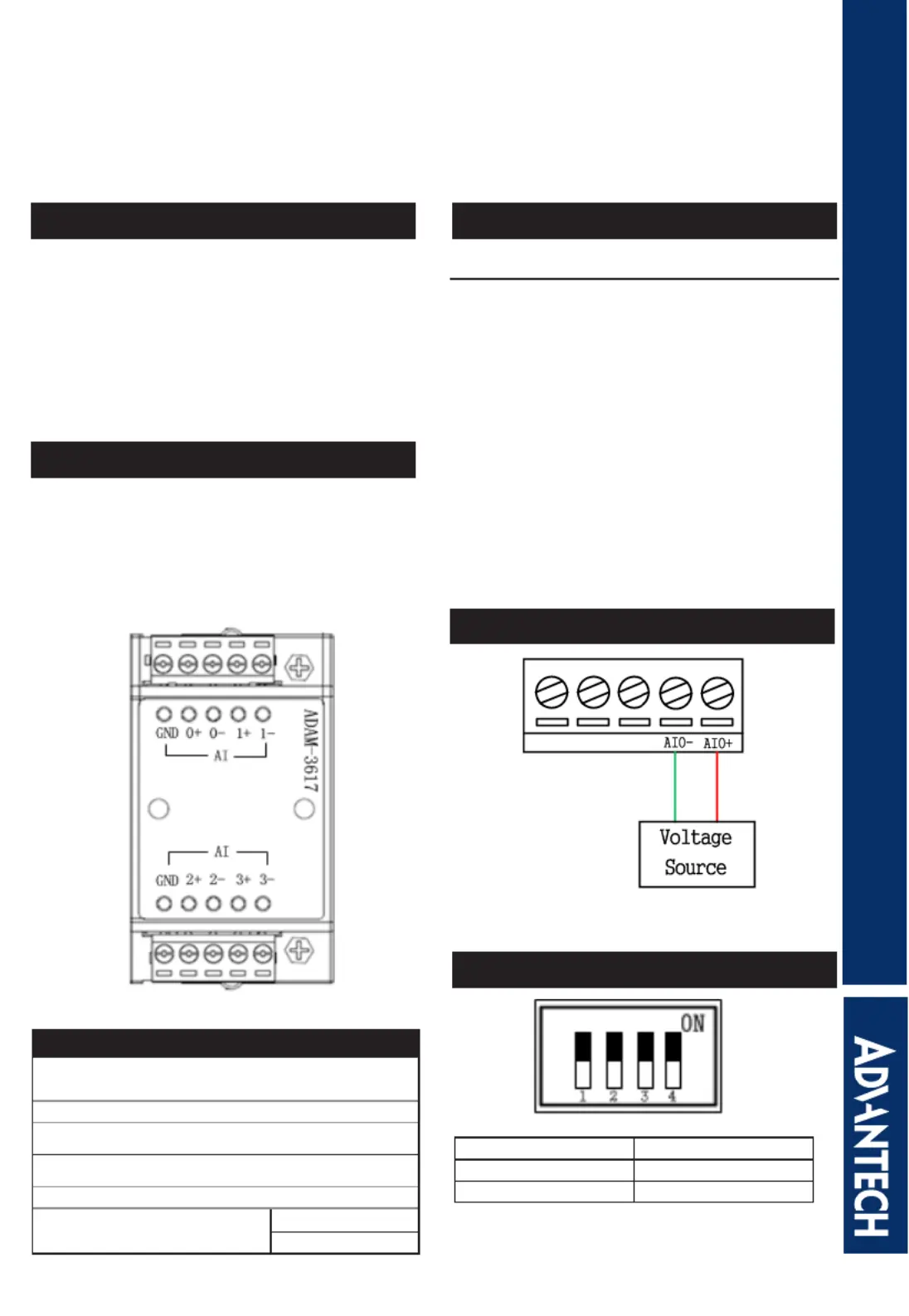

Startup Manual 1
Packing List
Before installation, make sure that you have
received the following:
• ADAM-3617 Product
• ADAM-3617 Startup Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
Specications
System Functions
• Analog Input Channels: 4 differential
• Input Type: V, mA
• Voltage/Current Range ±10V, ±2.5V, 0~20mA,
4~20 mA
• Resolution 16-bit
• Accuracy ±0.1% or better of
FSR(Voltage)
±0.2% or better of
FSR(Current)
• Isolation Voltage 2000 V
DC
• Burn-out Detection Yes(Current-only)
• Power Consumption 1w
• Operation Temp. -40 ~ 70°C
• Warranty 2 years
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
For technical support and service:
http://www.advantech.com/support/
This startup manual is for ADAM-3617
Part No: 2003A61700 1st Edition
January 2016
STARTUP MANUAL
ADAM-3617
4-ch Analog Input Module
Application Wiring
Overview
As ADAM-3600 Extension I/O, ADAM-3617 is a
16-bit analog input module that provides 4-chs
of voltage and current signal acquisition. This
module is extremely cost-effective solution for
industrial measurement and monitoring applica-
tions.
Caution:
When connecting jumpers or installing the card, you should disconnect the power to prevent surges
damaging sensitive electronic components.
Switch Description
SW1 Status Description
OFF(Default) Voltage Input
ON Current Input
