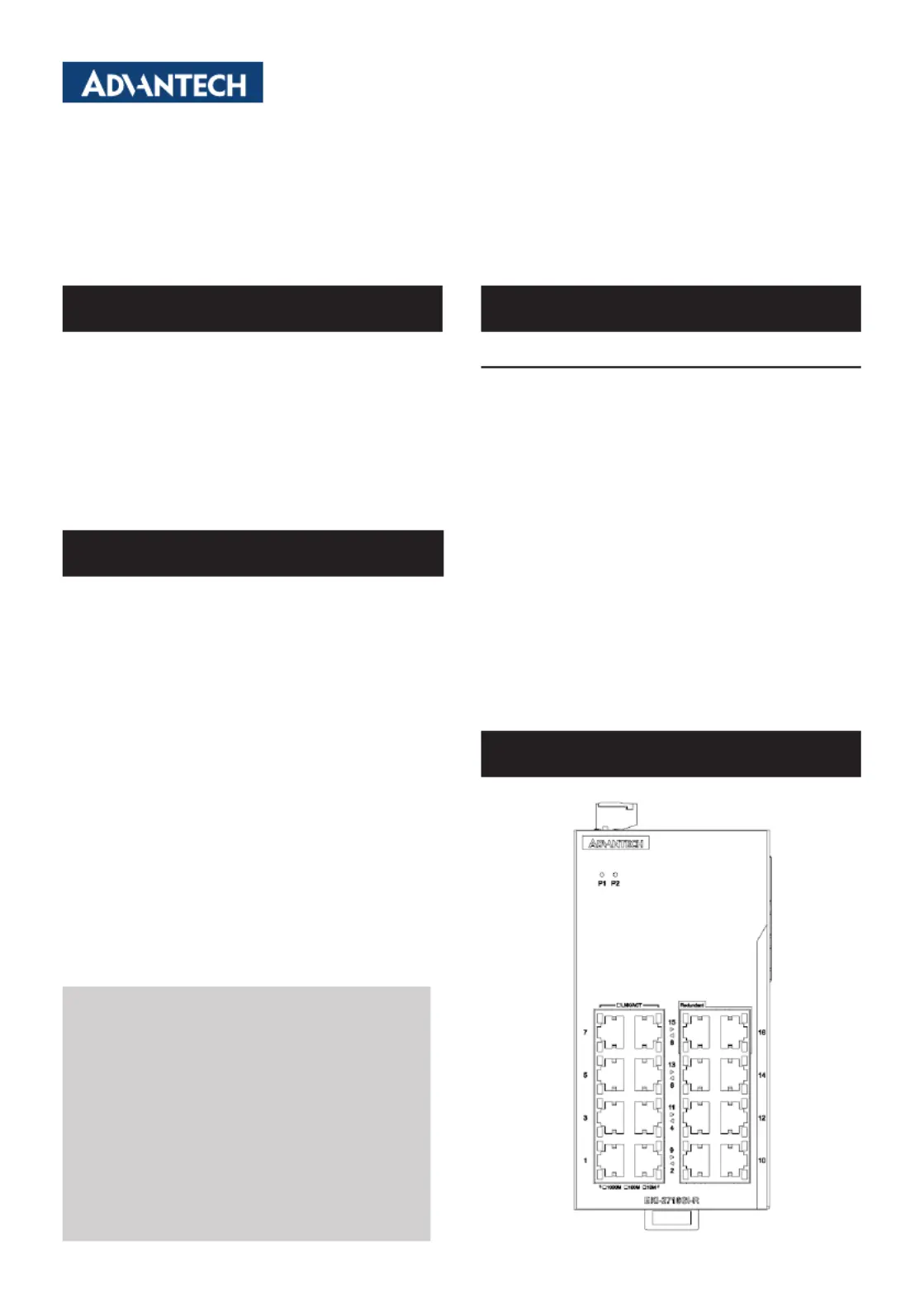

EKI-2716GI-R Startup Manual 1
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2716GI-R Ethernet Switch
• 1 x DlN-rail mounting bracket with 4 screws (M3 x 5L)
• 2 x Wall mounting brackets with 4 screws (M3 x 5L)
• 1 x EKI-2716GI-R Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
The EKI-2716GI-R industrial Ethernet switch provides 16
x10/100/1000Mbpscopperports,oeringversatilecon-
nectivity for diverse applications. Users can conveniently
enable or disable Quality of Service (QoS) and Network
Redundancy (RSTP or X-Ring) settings using DIP switches.
With the help of the network redundancy function on two
designated ports, the EKI-2716GI-R ensures network
redundancy and rapid recovery, maintaining uninterrupted
communication even during link failures. Equipped with
12–48 VDC redundant power inputs and DIN-rail mounting,
these switches are designed for reliable performance in
industrial environments. With EMC Level 4 protection, it
resists electromagnetic interference, ensuring stable opera-
tion even in harsh conditions.
EKI-2716GI-R
16-port Gigabit Unmanaged Switch with Network
Redundancy
Startup Manual
General
• Compatibility:IEEE 802.3, 802.3u,
802.3ab,802.3x,802.1p,802.1w
• LAN:16 x 10/100/1000 BASE-T/TX RJ-45 ports
• TransmissionDistance:Up to 100 m
• Connectors:16 x RJ45
• SwitchArchitecture: Store and Forward
• PowerInput:12~48 V
DC
, redundant power
• PowerConsumption: 9.6W
• Dimensions(WxHxD):72 x 140 x 105 mm
• Enclosure:IP30
• OperatingTemperature:-40 ~ 75°C (-40 ~ 167°F)
• StorageTemperature:-40 ~ 85°C (-40 ~ 185°F)
• OperatingHumidity: 5 ~ 95% (non-condensing)
• StorageHumidity:5 ~ 95% (non-condensing)
• Safety:UL62368
• EMC:CE, FCC Class A, BSMI
• Warranty:5 years
Specications
Overview
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com.tw
This manual is for EKI-2716GI-R.
Part No. 2049271640 Edition 1
July 2025
PackingList
Overview
