#/#ALPINE
Emotion
in
Mobility

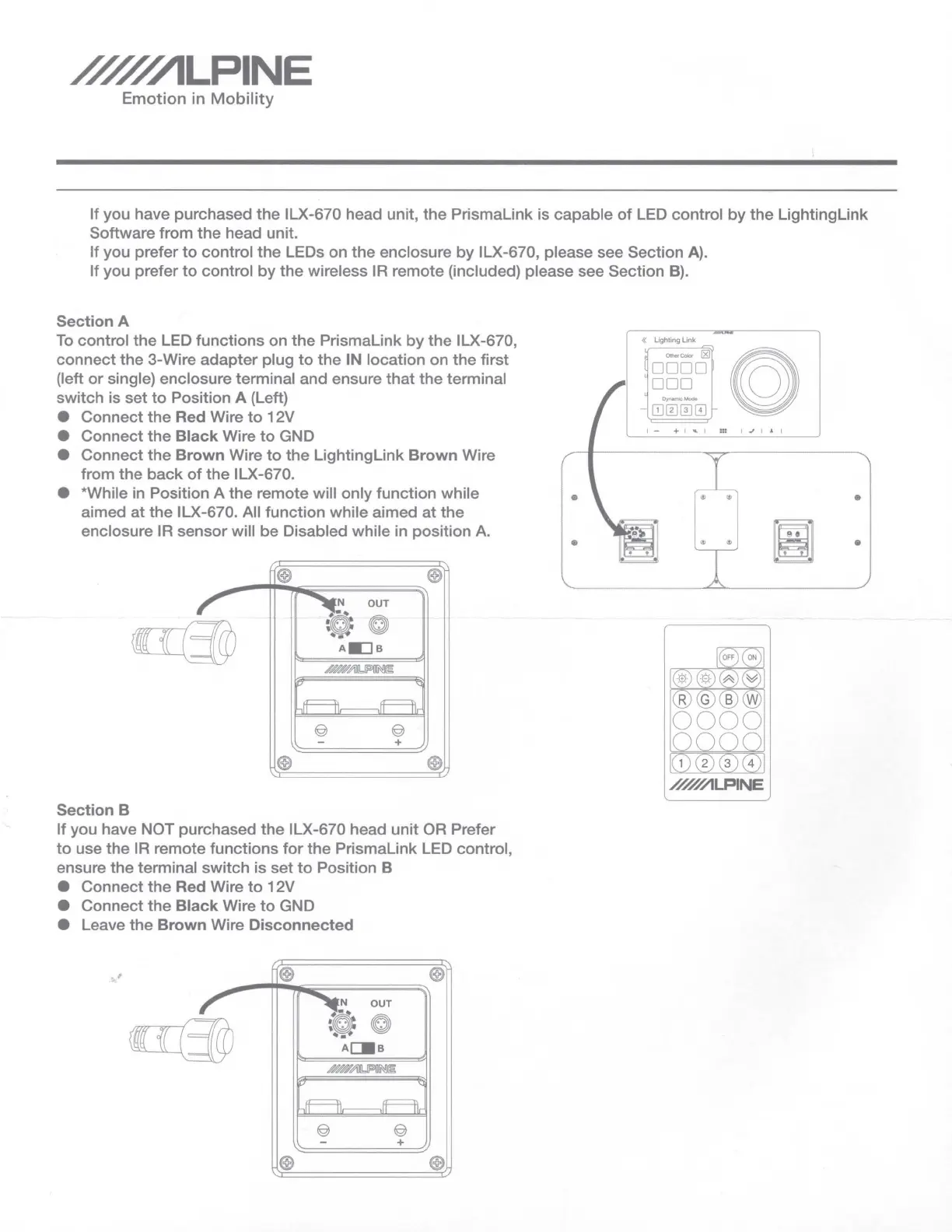

If you have purchased the ILX-670 head unit, the
Prismalink
is capable
of
LED control
by
the
Lightinglink
Software from the head unit.
If you prefer
to
control the LEDs on the enclosure by ILX-670, please see Section A).
If you prefer
to
control by the wireless
IR
remote (included) please see Section
B).
Section A
To
control the LED functions on the
Prismalink
by the ILX-670,
connect the 3-Wire adapter plug
to
the IN location on the first
(left
or
single) enclosure terminal and ensure that the terminal
switch is set
to
Position A (Left)
• Connect the Red Wire
to
12V
• Connect the Black Wire
to
GND
• Connect the Brown Wire
to
the
Lightinglink
Brown Wire
from the
back
of
the ILX-670.
• *While in Position A the remote will only function while
aimed at the ILX-670. All function while aimed at the
enclosure
IR
sensor will be Disabled while in position
A.
Section B
If you have NOT purchased the ILX-670 head unit
OR
Prefer
to
use the
IR
remote functions
for
the
Prismalink
LED control,
ensure the terminal switch is set
to
Position B
• Connect the Red Wire
to
12V
• Connect the Black Wire
to
GND
• Leave the Brown Wire Disconnected
OUT
0
•
..
« Lighting Link
Olh&rCOIO(
~
□□□□
□□□
I Dynamic Mode
-
CD000
r
"'
.,
DZWILPINE
•
•
