003 FMK549
Installation Kit
Tools Required
▲
Flat Blade
Screwdriver
Parts
Supplied:
▲
Mounting
Bracket
Receiver
Trimplate
Ford
Revision 06/09/99
DIN Assembly
1. Using a utility knife, cut out the shaft supports in
the receiver mounting bracket to create the DIN
opening as shown in Figure 1.
2. Remove DIN sleeve from receiver.
Slide DIN sleeve into receiver mounting bracket and
secure by bending securing tabs (Figure 2).
3. Slide receiver fully into sleeve.
4. Secure rear support bracket to rear of receiver
as shown using hardware supplied with receiver.
5. Install receiver assembly in dash of vehicle
following instructions in the Mastersheet for
your vehicle.
Page 1 of 2
Receiver Mounting Bracket
DIN Sleeve
IMPORTANT
Before starting, compare items on your invoice with items
received. If any parts are missing, first carefully check through
packaging material. If an item is missing, please call:
Rear Support
Bracket
(for shaft receiver only)
Rear Support Bracket

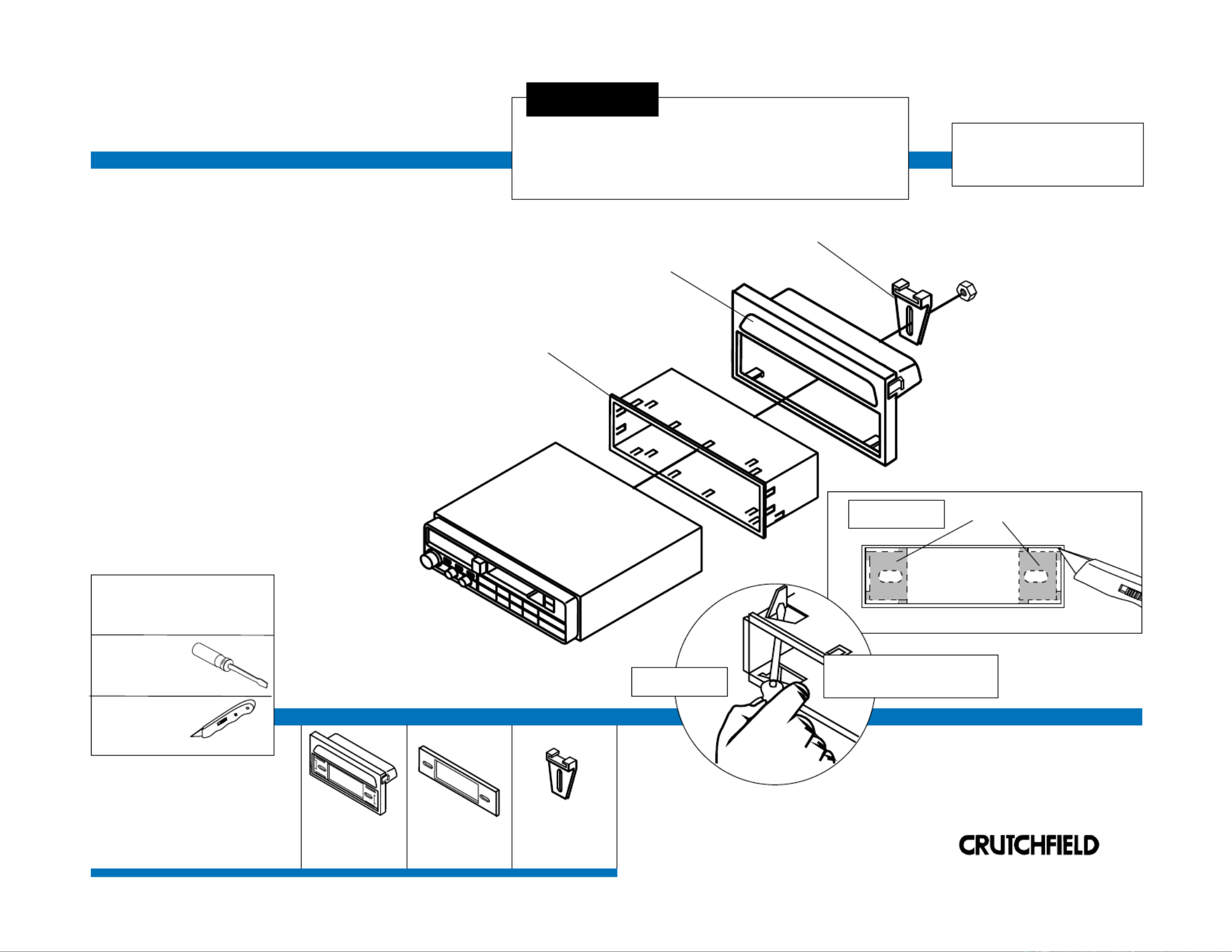

FIGURE 1 Shaft Supports
Utility
Knife
FIGURE 2
*003FMK549*
®
Copyright 1999 Crutchfield Corporation
Bend tabs after sleeve
is inside mounting bracket.
Crutchfield at 1-888-955-6000
