Double DIN Mount Applications
NOTE: Remove shaded pocket support Tabs on left and right bracket.
1. Remove the shaded tab from the bottom of each left and right mounting bracket (See figure C below).
2. Cut and remove center rib from main frame and file edges smooth.
3. Attach the left and right side brackets to the main frame (See figure C below).
4. Follow steps 4-6 from single ISO instructions on page 3.
5. Attach a rear support bracket to the rear of the radio components and adjust as needed
to allow rear support in the sub-dash (optional).
CUSTOMER HELP LINE
8am-4:30 P.S.T. Monday-Friday Except Holidays
USA 800-323-4329 • Canada 800-245-8777
Toyota
2008-12 HIGHLANDER (WITHOUT FACTORY NAVIGATION)
VEHICLE APPLICATIONS
KIT ASSEMBLY INSTRUCTIONS
NOTE: #1 - ISO trim ring (DITR989) must be used in place of after-market radio’s trim rings. For ISO mount
applications, mount after-market radio components to side brackets using screws provided with
radio when possible or hardware included with kit.
For ISO mount only: Attach (1) ISO Spacer to the
inside of lower sections on both Left
& Right mounting brackets as shown in Fig. A.
Cut
Cut
Left
Right
Fig. A
DITR989
IMB989L
IMB989R

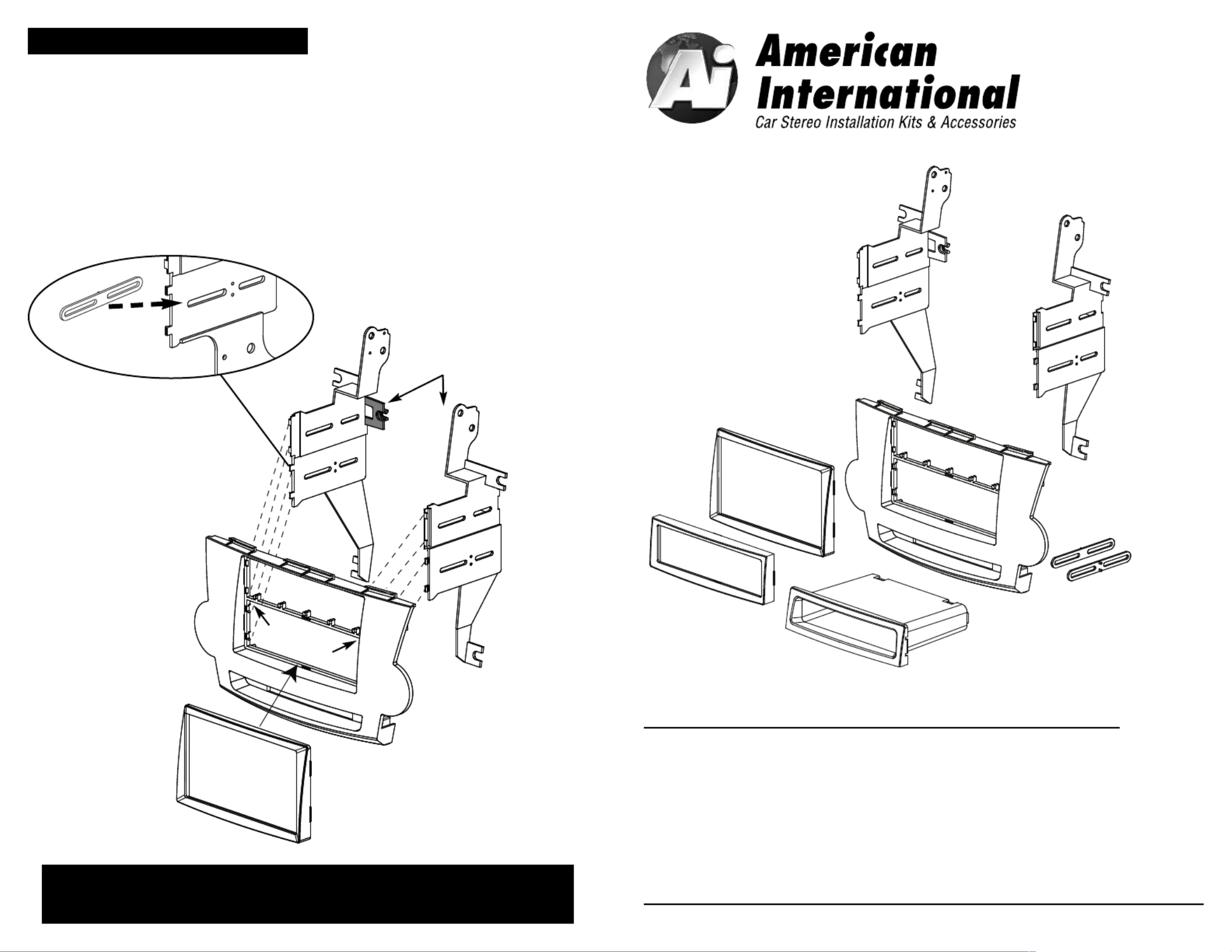

Fig. C
Main Frame
TOYK989 Mounting Kit
iTOYK989 ©2017 AMERICAN INTERNATIONAL INDUSTRIES, INC. TECH Ver. 06/17 PRINT Ver. 06/17
Remove shaded pocket
support Tabs on left
and right bracket.
