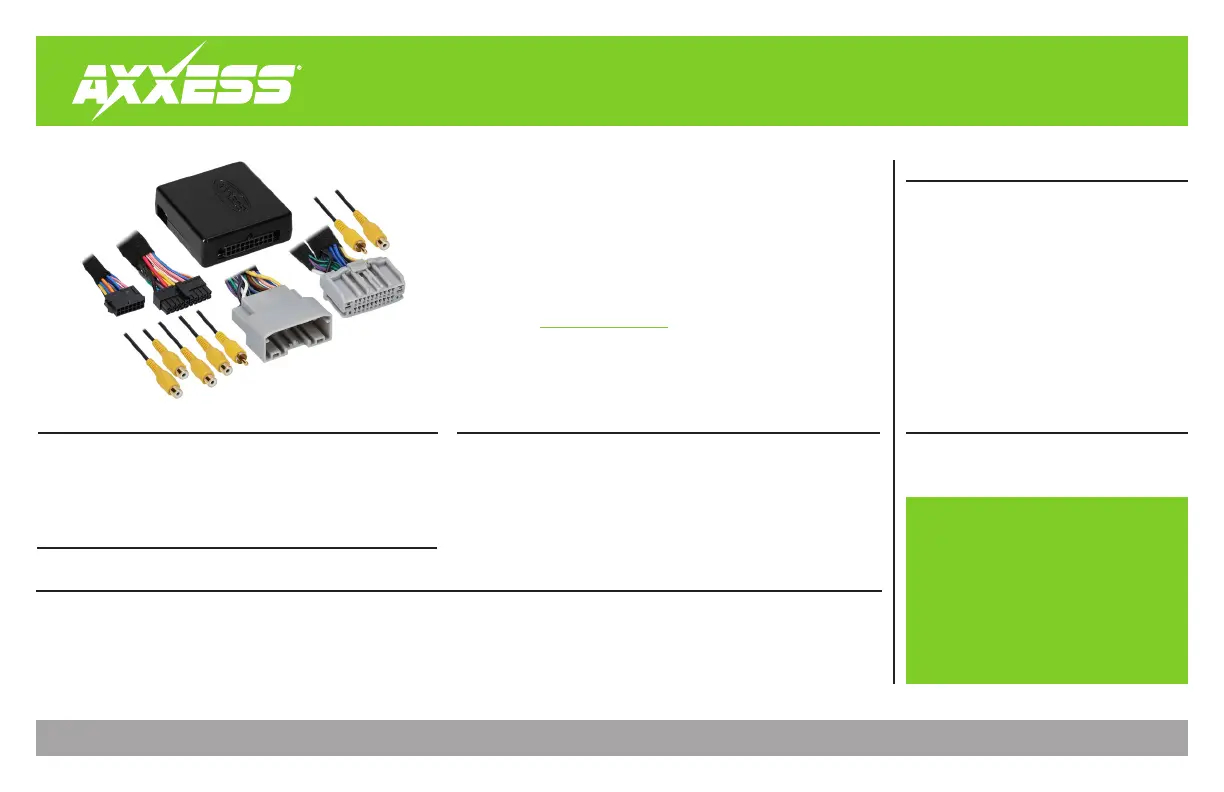

AXAC-CH4
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 5/14/25 INSTAXAC-CH4
TOOLS REQUIRED INTERFACE COMPONENTS REQUIRED ITEMS
TABLE OF CONTENTS
Introduction ...........................................................2
Interface Features ..................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................7
• Crimping tool and connectors, or solder gun, solder, and heat
shrink • Tape • Wire cutter • Zip ties
• AXAC-CH4 interface
• AXAC-CH4 interface harness
• AXAC-CH4 vehicle harness (qty. 2)
• 22-pin T-harness
•
22-pin T-harness (cam harness)
Update Cable: AXUSB-MCBL
(sold separately
)
Axxess Updater Program
*Radio models # RB2, RBZ, REN, REW, REP, RER, REZ, RHB, RHR, RHWRHWRHP
Camera Interface With Pre-Wired
Harness
Fits Select Chrysler Models
2007-2018*
APPLICATIONS
Chrysler
300 .....................................................2008-2010
Dodge
Challenger .........................................2008-2014
Durango ...............................................2011-2013
Jeep
Liberty** .............................................2008-2011
Wrangler (JK) ....................................2007-2018
**With MyGig Radio
Note: Only compatible with NTSC cameras.
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
ATTENTION:
With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator
lights, are plugged in before reconnecting the
battery or cycling the ignition to test this product.
NOTE:
Refer also to the instructions included
with the aftermarket accessory before installing
this device.
INTERFACE FEATURES
(see next page)
