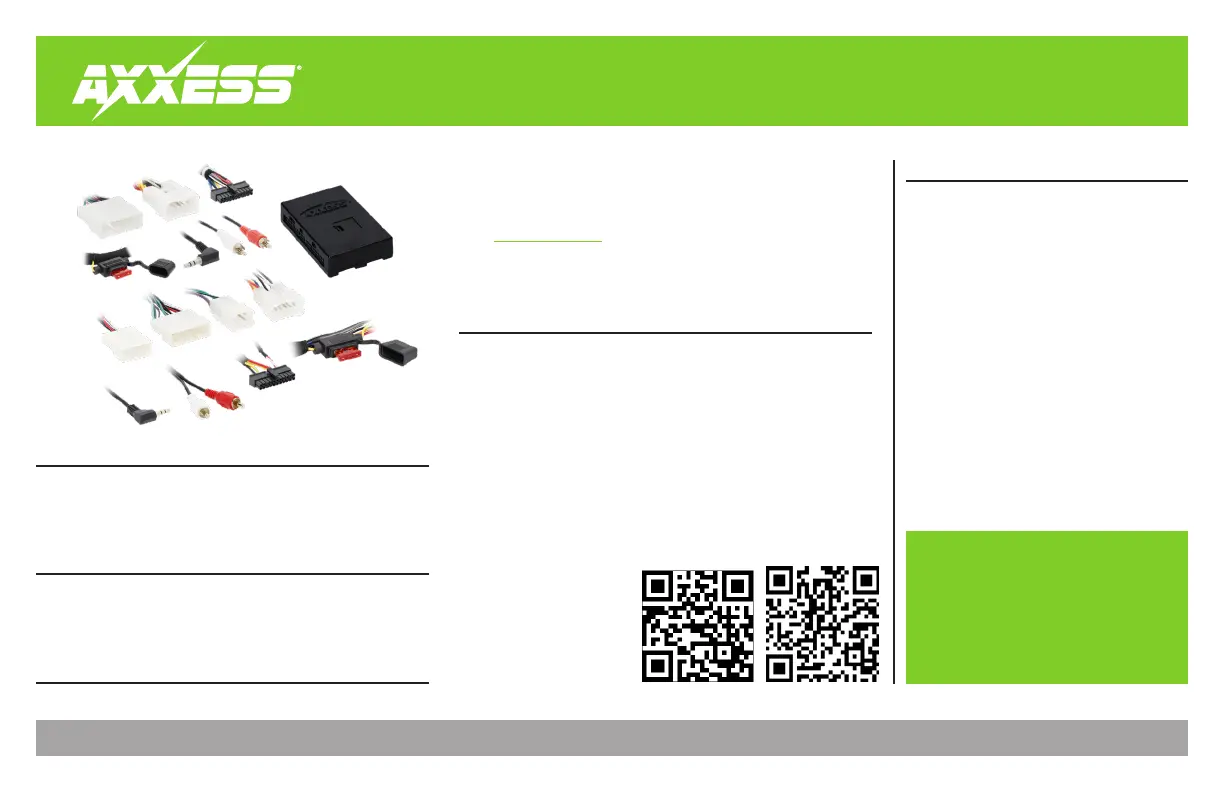

AXDIS-TY2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/22/24 INSTAXDIS-TY2
ATTENTION: With the key out of the ignition,
disconnect
the negative battery terminal before installing
this product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the
battery or cycling the ignition to
test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
• Small flat-blade screwdriver
TABLE OF CONTENTS
Applications ...........................................................2
Connections ........................................................ 3-5
Non-Amplified Models: LD-TYNOAMP ............... 3
Amplified Models: LD-BX-TY3 ............................4
3.5mm Jack SWC Retention ...............................5
Installing the AXDIS-TY2 .......................................5
Programming the AXDIS-TY2 ...............................6
Audio Level Adjustment .......................................6
Steering Wheel Control (SWC) Settings..........7-10
LED Feedback ......................................................7
Changing Radio Type..........................................8
Remapping the SWC Buttons ............................9
Dual Assignment Instructions .......................... 10
Troubleshooting.................................................... 11
Fits Toyota Interface with SWC 2012-2019
• Designed for both amplified and non-amplified models
• Provides accessory power (12-volt 10-amp)
• Retains audio controls on the steering wheel
• Provides NAV outputs (parking brake, reverse)
• Retains the factory AUX-IN jack
• Micro-B USB updatable
• Retains balance on amplified models
(non-amplifed models will retain balance and fade)
• AXDIS-TY2 interface
• AXDIS-TY2 harnesses (LD-TYNOAMP, LD-BX-TY3 AND LD-2NAVAMP)
• Female 3.5mm connector with stripped leads
Visit AxxessInterfaces.com for more detailed information about the product and
up-to-date vehicle specific applications.
APPLICATIONS (See Page 2)
MetraOnline.com may be used
to assist with dash assembly
instructions. Simply enter your
Year, Make, Model vehicle into
the vehicle fit guide and look
for the Dash Kit Installation
Instructions.
Product Info
www.MetraOnline.com
