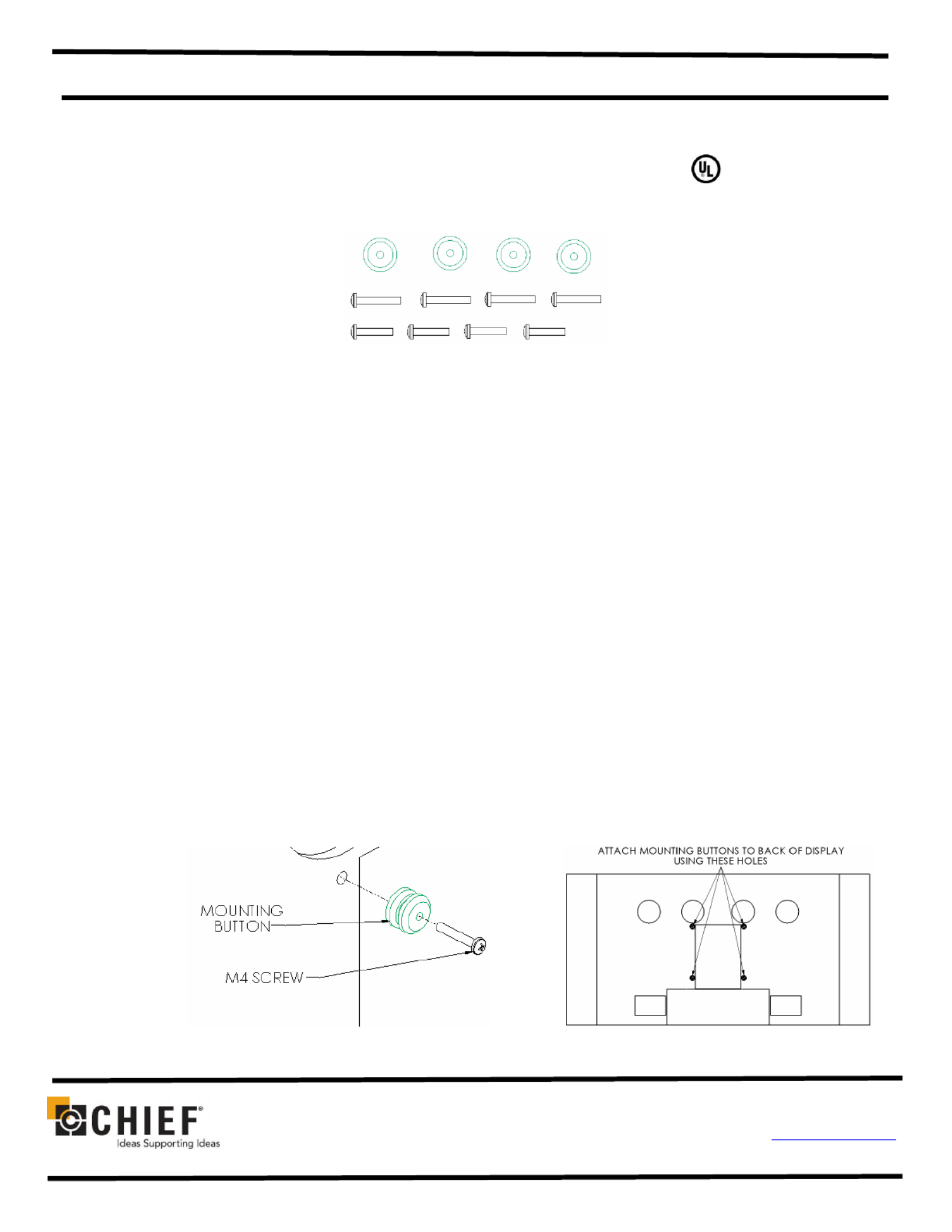

I N S T A L LA T I O N I N S T R U C T I O N S
CHIEF MANUFACTURING INC. 8840-000004 REV. B
1-800-582-6480 952-894-6280 FAX 952-894-6918 2006 Chief Manufacturing
8401 EAGLE CREEK PKWY, STE. 700 www.chiefmfg.com
SAVAGE, MINNESOTA 55378 USA 08/06
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4
TIMES THE COMBINED WEIGHT OF ALL COMPONENTS
PLUS THE EQUIPMENT BEING MOUNTED. IF IT CANNOT
SUPPORT THIS WEIGHT, THE STRUCTURE MUST BE
REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE
INTERFACE
IS
125
POUNDS (
56.69
KG).
MSB-6394
DISPLAY MOUNTING INTERFACE
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(4) Mounting Buttons – Yellow (4) M4 x 25mm Phillips Head Screw
(4) M4 X 20mm Phillips Head Screw
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
DISPLAYS ARE EXTREMELY FRAGILE.
1. Attach mounting buttons to display using M4 screws (see Figure 2 & Figure 3).
2. With the aid of another person, lift the display up to the Chief Mount, aligning buttons of
mounting bracket with slots on the Chief Mount.
3. Raise safety latch on the Chief Mount to secure the display, making sure latch is completely
engaged.
CAUTION!
Figure 1
WARNING!
Figure 3Figure 2
Probleemoplossing Chief MWR6394B
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Breedte: | 600 mm |
| Diepte: | 86 mm |
| Hoogte: | 457 mm |
| Materiaal behuizing: | Metaal |
| Montagewijze: | Muur |
| Geschikt voor schermmaten: | 30 - 55 " |
| Maximale gewichtscapaciteit: | 56.7 kg |
| Certificering: | UL |
| Montage interface compatibiliteit (min): | 100 x 100 mm |
| Montage interface compatibiliteit (max): | 100 x 100 mm |
| Bereik kantelhoek: | -15 - 5 ° |
| Maximale schermgrootte: | 55 " |
| Minimale schermgrootte: | 30 " |
| Afstand tot de muur (min): | 85.9 mm |
| Afstand tot de muur (max.): | 632 mm |
