SMA-620
S
USPENDED
C
EILING
T
RACK
C
LIP
FOR
S
MART
-L
IFT
SL-236
The SMA-620 suspended ceiling track clip allows you to secure ceiling grid to the Smart-Lift SL-236 for
suspended ceiling applications.
Unpack carton and check contents:
(8) Suspended Ceiling Track Clip
I
NSTALLATION
I
NSTRUCTIONS
1. Determine where the ceiling grid will intersect with the Smart-Lift (see Figure 1).
2. Remove surrounding ceiling tile.
3. Cut ceiling grid to appropriate length and trim end to fit into Smart-Lift.
4. Install the ceiling track clip, with the slot of the clip directly in line with the intersection point,
into the Smart-Lift as shown in Figure 2.
5. Insert the grid into ceiling track clip (see Figure 3).
6. Cut surrounding ceiling tile to appropriate size.
7. Repeat previous steps as necessary.
8. Replace surrounding ceiling tile.

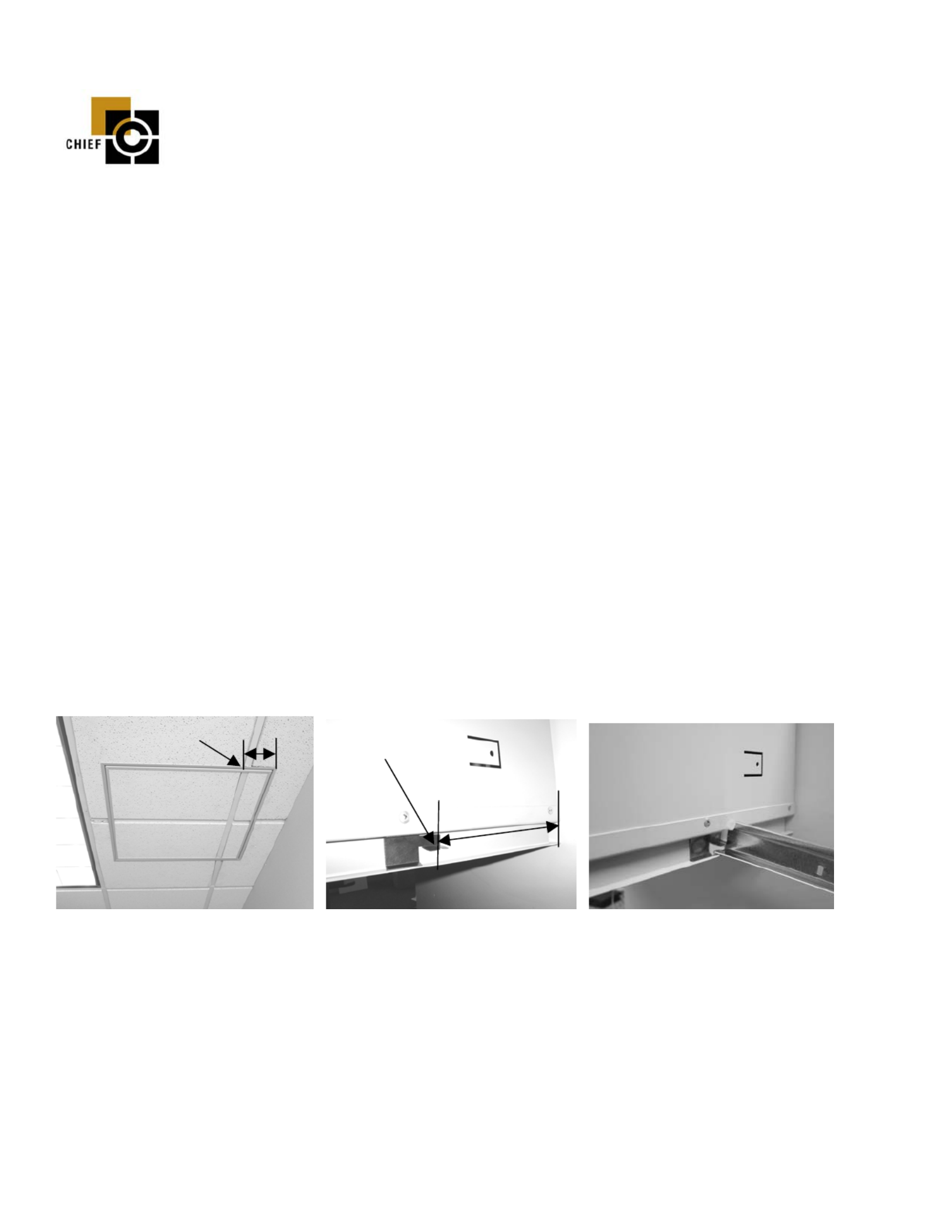

Figure 1. Grid Intersection Figure 2. Clip Installation Figure 2. Grid Installation
Grid Intersection Grid Intersection
SL236 shown
with ceiling tile
and grid installed
in bottom panel
Probleemoplossing Chief SMA620
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Breedte: | 29 mm |
| Diepte: | 54 mm |
| Hoogte: | 16 mm |
| Compatibiliteit: | SL-236 |
