CLICK
www.chiefmfg.com
CALL
800.582.6480
FAX
877.894.6918

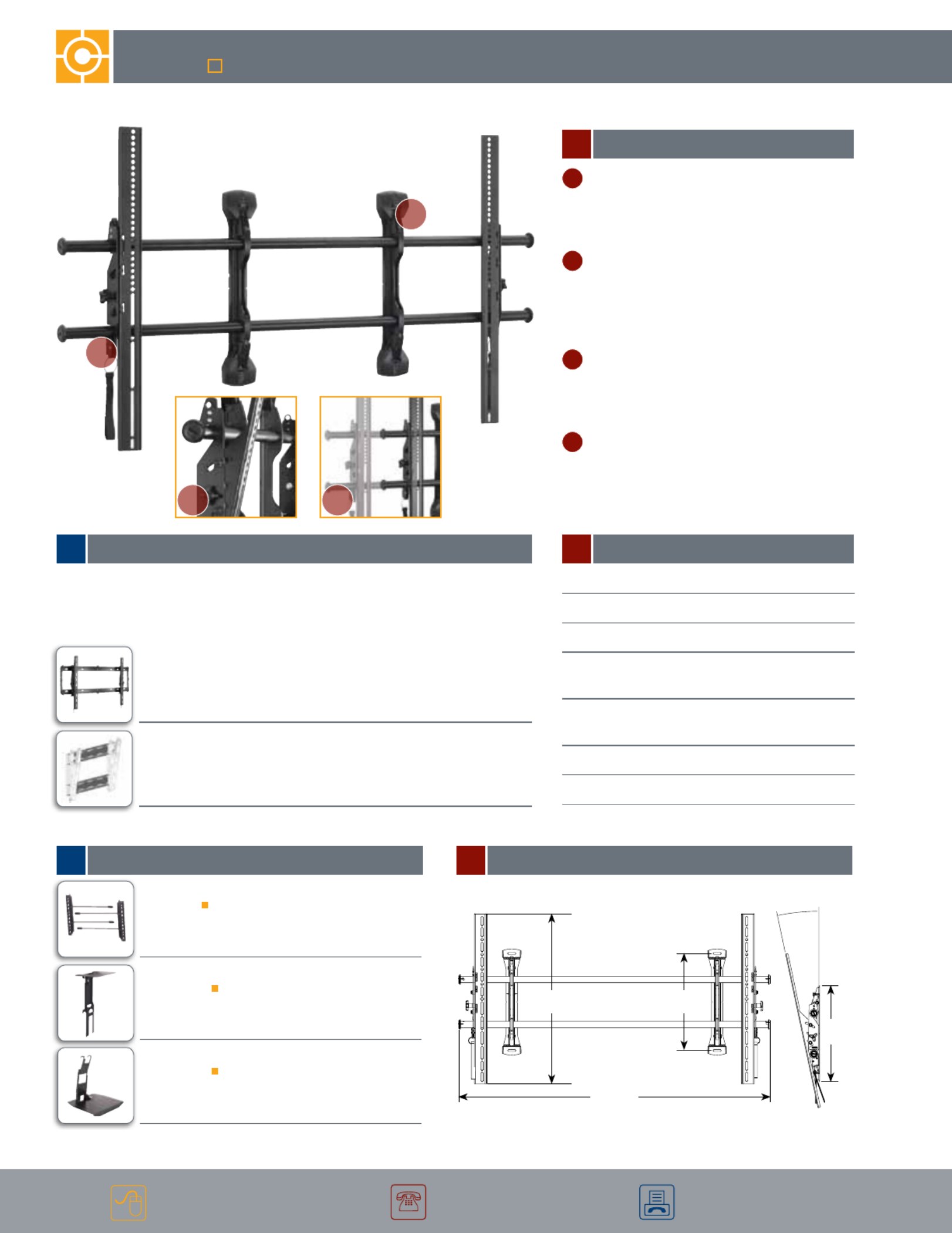

tilt wall Mounts
SPECIFICATIONS
FEATURES
TECHNICAL DRAWINGS
WHAT YOU NEED TO KNOW
RECOMMENDED ACCESSORIES
70
XtM 55 - 75" MICRO-ADJUSTABLE TILT MOUNT
Tilt* -12˚
Depth from Wall 1.98" (50 mm)
Max Lateral Shift 23.5" (597 mm) max
Dimensions 16.5" x 48.44" x 1.98"
(HxWxD) (42 x 123 x 5 cm)
Max Mounting 25.98" (660 mm), height
Pattern 49.21" (1250 mm), width
Color Black
Weight Capacity 250 lbs (113 kg)
For a complete list of FUSION accessories see pages .94-95
1
4
2
rXt2
FIT™ Series Low-Profile Hinge Mount
– For flat panels 40–63"
MultiPle installation oPtions
Can be installed on 24" on-centers up to 48". For 16" on-centers, span 3 studs.
otHer ProDuct oPtions
Flr100 Left/Right Speaker Adapter
FVs250 12" (305 mm) Video
Conferencing Shelf - above
Fcs100 Single Component Shelf
- below
3
* Varies with screen height.
-12º max
48.44"
(123 mm)
15.1"
(383.4 mm)
16.52"
(419.6 mm)
27"
(685.8 mm)
PPH2000
Heavy-Duty, Tilt-Adjustable Wall Mount
– For flat panels up to 250 lbs (113.4 kg)
Fusion ® series
ControlzonE ™ lEvEling
Industry-first feature allows post-installation
fine tuning of height and leveling, up to 0.5"
(13 mm) adjustment up or down.
CEntris ® loW-proFilE tilt
Centris fingertip tilt technology uses the
center of gravity to balance the screen while
maintaining a low profile under 2" deep!
Screen angle stays set in place until readjusted.
CEntErlEss ™ sHiFt
Provides up to 23.5" of post-installation lateral
shift – 11.75" left/right of uprights – for limitless
centering capabilities.
CliCkConnECt ®
Hear an audible click when the screen safely
engages with the mount. A built-in cable stand
provides easy access under the screen.
1
2
3
4
