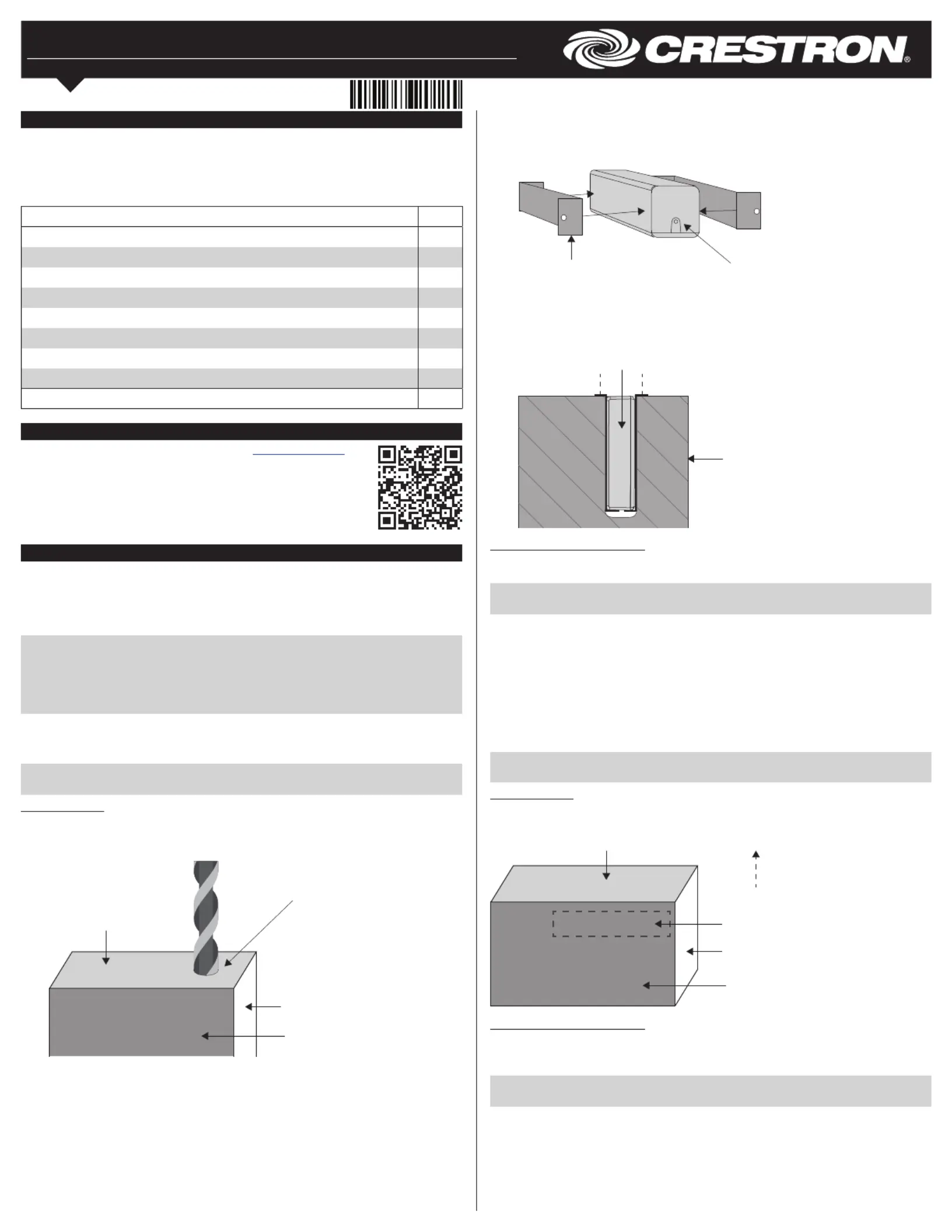

INETS-IOEX-DOOR-BATT

Door Sensor

Installation Guide

Description

The Crestron

INETS-IOEX-DOOR-BATT door sensor detects when a door is open

or closed and transmits the state to the Crestron control system. The door sensor

communicates with the control system via the inNET EX

wireless network. The door

sensor is comprised of two parts: a magnet and a sensor.

Parts that are included with the INETS-IOEX-DOOR-BATT:

ITEM Qty

Sensor 1

Encapsulated magnet - 11/16 in. x 2-11/16 in. 1

Disc magnet - 1/2 in. Dia. x 1/16 in. L 1

Barrel magnet - 15/64 in. Dia. x 25/32 in. L 1

Double-sided tape - 1/2 in. Dia. 1

Nail - 1 in. 2

Mounting bracket 2

Dry contact connector 1

Paper Clip (Attached to Installation Guide) 1

Additional Resources

Visit the product page on the Crestron website (www.crestron.com) for

additional information and the latest rmware updates. Click the QR

code or use a QR reader application on your mobile device to scan the

QR image.

Install the Door Sensor

The sensor can be recess mounted by placing it into a drilled hole in the top of the door or

surface mounted by using double-sided tape to adhere it to the face of the door.

To ensure proper operation, the active end of the sensor must be in close proximity to

the magnet. The active end of the sensor has a hole for the setup button and a notch for

removing the bottom cover.

NOTES:

• The INETS-IOEX-DOOR-BATT must be installed within range of an inNET EX

wireless network.

• If installed in a hard-to-reach location, join the inNET EX wireless network

before installation. Refer to the “Operation” section on page 2 for details.

Recess Mount the Sensor

Install the sensor into the top of the door near the strike edge to keep the sensor hidden

from view.

NOTE: If necessary, the sensor can be installed in the door frame jamb and the magnet

may be secured to the door.

Install the Sensor

1. Use a drill and a 7/8 in. diameter drill bit to make a 2-11/16 in. (68 mm) deep hole in

the top of the door. The hole should be centered in the top of the door near the strike

edge (latch side). Ensure that the hole is straight to prevent binding.

Top of door

Door face

Strike edge of door (latch side)

Drill a 7/8 in. diameter,

2-11/16 in. (68 mm) deep

mounting hole.

2. Remove one side of the preinstalled double-sided tape from a mounting bracket

and then secure the mounting bracket to the side of the sensor. When securing the

bracket to the sensor, ensure that the tabs on the mounting bracket face away from

the active end of the sensor. Repeat for the other mounting bracket.

Active end

of sensor

The mounting bracket tabs

must face away from the

active end of the sensor.

3. Insert the sensor and bracket assembly into the hole.

4. Secure the sensor and bracket assembly using two nails (supplied).

Insert the sensor into the

door and secure with nails.

Strike edge of door

(latch side)

Install the Disc or Barrel Magnet

Place a disc or barrel magnet on the door frame opposite the active end of the sensor. The

distance between the active end of the sensor and the magnet should be 1/8 in. or less.

NOTE: To ensure proper operation, a recess may need to be made in the door frame to

maintain proper distance between the magnet and the door sensor.

Install the magnet:

1. Remove one side of the double-sided tape and place it onto a at side of the

magnet.

2. Remove the other side of the double-sided tape and secure the magnet to the door

frame.

Surface Mount the Sensor

Secure the sensor to the face of the door. The sensor should be located at the top of the

door so that it is near the door jamb and strike edge. The sensor can be installed vertically

or horizontally on the face of the door.

NOTE: If necessary, the sensor can be secured to the door frame jamb and the magnet

may be secured to the door.

Install the Sensor

1. Remove one side of the double sided tape from the sensor.

2. Secure the sensor to the face of the door.

Top of door

Door face

Strike edge of door (latch side)

Place sensor here

Door swing

Install the Encapsulated Magnet

The encapsulated magnet should be placed on the door frame with the marked “M” on

the magnet adjacent to the active end of the sensor. The encapsulated magnet should be

parallel to the sensor and placed 1/8 in. from the sensor when the door is closed.

NOTE: If necessary, the magnet end can be determined by moving the case of the

encapsulated magnet near a ferrous metal object.

Install the encapsulated magnet:

1. Remove one side of the double sided tape from the encapsulated magnet.

2. Secure the encapsulated magnet to the door frame.
