Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2017 All Rights Reserved
|
FORM: LVCIV_110_Wiring17
110-120V LVC-IV Low Voltage Control Module WIRING
INSTRUCTIONS
If you encounter any difficulties installing or servicing
your LVC-IV, call your dealer or contact Draper, Inc.

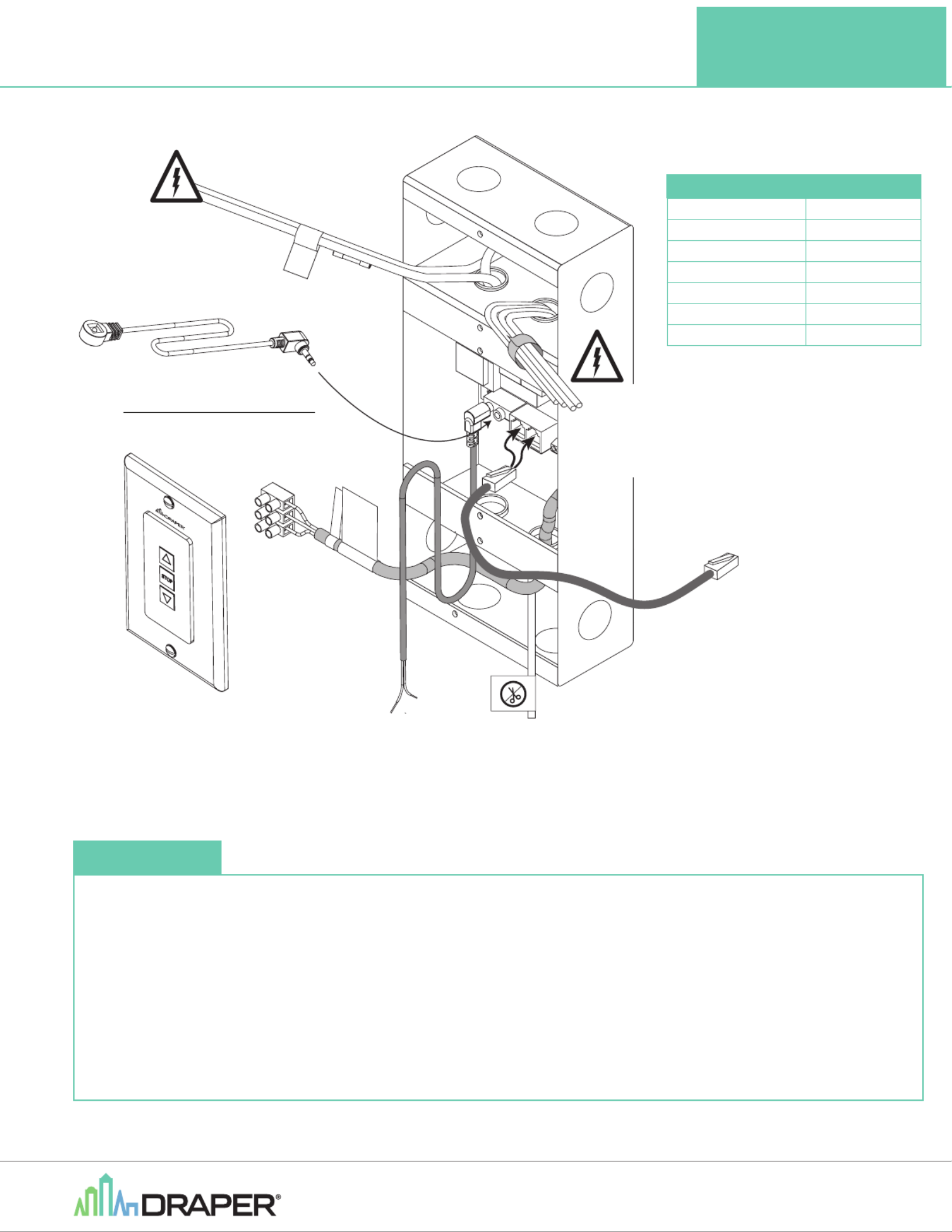

Figure 1
-Don't let the RF receiver touch metal objects; this could affect the maximum distance the transmitter can be from the RF receiver.
-Disconnect the power supply before installing the RF receiver.
-Avoid electrostatic interference: Static electricity will damage the electronic components.
-Make sure there is more than 5 feet (1.52 meters) between the RF receiver and ground.
-Make sure there is more than 1 foot (30.5cm) between the RF receiver and ceiling.
-Make sure there is more than 1 foot (30.5cm) between the RF receiver and transmitter.
-If using more than one receiver, make sure they are separated by more than 8" (20cm).
Please Note
Technical Specifications:
Power Supply: 110V-120V / 60Hz
Temperature: -40° C – 85° C
Frequency: 433 MHz
Power: <300W
Transmit Power: <10mW
Sensitivity: -110dBm
Fuse: 3.15 Amp
FUSE - 3.15 AMP
250 VAC 5x20mm
Low Voltage
Trigger 4-28 VDC
3 Button Wall Switch
DOWN - Black
COM - White
UP - Red
Optional
IR Eye
RS232/485
or connection
to next LVC-IV
(universal-either jack)
(supplied by others)
RF Remote
Antenna
WALL SWITCH
AC Power
Input
WARNING
DRY CONTACT
CLOSURE ONLY.
APPLYING VOLTAGE
HERE WILL DAMAGE
CONTROLLER.
To screen/lift.
Seeindividual
productwiring
for details.
To 110V AC-Hot
