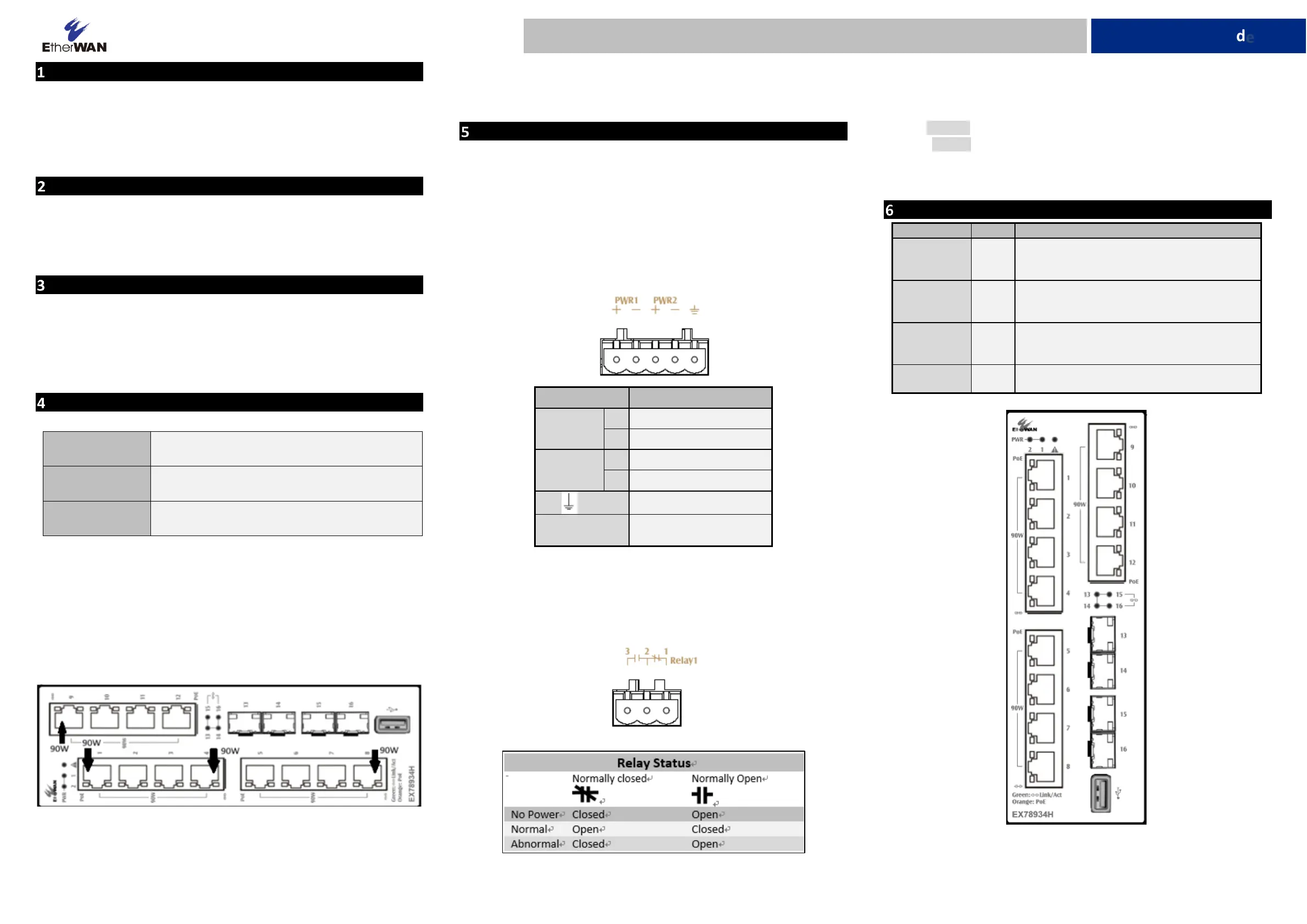

W70G-EX78900H1 Page 1
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 10/30/2023
Installation Guide
EX78900H Series | Hardened Managed Ethernet Switch
Switch
Unpacking
Open the carton and unpack the items. Your package should include:
▪ One EX78900H hardened managed switch
▪ One RJ-45 console cable
If any items are missing or damaged, notify your EtherWAN representative. If
possible, save the carton and packing material in case you need to ship or store the
switch in the future.
What Else You Need
▪ Appropriate cables for data ports. To prevent damage to the switch from
electrical surges, it is recommended to use STP (Shielded twisted pair)
cabling.
▪ Personal computer or laptop
▪ Appropriate SFP modules for SFP ports
Select a Location
▪ Installations: DIN-Rail mount.
▪ Select a power source within 6 feet (1.8 meters).
▪ Choose a dry area with ambient temperature between -40 and 75ºC (-40
and 167ºF).
▪ For use at altitudes up to 2000 meters, indoor use only.
▪ Humidity range (Operational): 5% to 95%, non-condensation
Connect to the Data Ports
Depending on the model, your switch can have the following ports:
EX78922H-0VB
8-port 10/100/1000BASE-T (4 x 30W, 4 x 90W PoE)
2-port 100/1000M SFP
EX78924H-0VB
8-port 10/100/1000BASE-T (4 x 30W, 4 x 90W PoE)
4-port 100/1000M SFP
EX78934H-0VB
12-port 10/100/1000BASE-T (8 x 30W, 4 x 90W) PoE
4-port 100/1000M SFP
10/100/1000BASE-TX (PoE) Ports
Ports that support Power over Ethernet provide power to networked devices such
as IP Phones, Wireless LAN Access Points, and IP security cameras with a power
budget of 360 Watts.
PoE 90W Limitation
When using PoE ports at 90 Watts, use PoE ports – 1, 4, 8, and 9 for 90W PoE. See
example below:
100M/1000M SFP Ports
SFP transceivers can be installed directly into SFP slots. Ensure that the same type
of transceiver is used at both ends of the link and that the correct type of fiber
cable is used.
Connect Power
▪ The switch has two pairs of power inputs.
▪ Only one power input is required to operate the switch. However,
redundant power supply functionality is supported.
▪ Power rating: 52V/4.97A 57V/4.54A
▪ Note: Use qualified power supply by SELV or double insulation of UL 60950
or UL 61010-1 or UL 61010-2-201 standards.
Terminal Block
The switch provides two power inputs on a 52-57VDC terminal block. The
terminal block has 5 terminal posts.
Pin
Description
Power 1
+
52-57VDC
−
Power Ground
Power 2
+
52-57VDC
-
Power Ground
Earth Terminal
Relay Output
Rating
0.5A @48VDC
Relay Output Alarm
The switch provides two relay output contacts. Both Relay 1 and Relay 2 signal
actions from one of the digital inputs. The relay outputs can be connected to an
alarm signaling device. The Current is 0.5A@48VDC at Normal Open or Normal
Close.
3 Normal Open | 2 Ground | 1 Normal Close
Power-Up Sequence
When the switch is powered up:
▪ All Link/ACT LEDs blink momentarily.
▪ The Power 1 LED light goes ON.
▪ LEDs for every port connected to a device will flash, as the switch conducts a
brief Power On Self-Test (POST).
Front Panel LEDs
LED
Color
Status
Power 1 & 2
Green
On: Power on
Off: Power off
Link/Act
Green
On: Network connection established
Flashing: Port sending or receiving data
PoE
Amber
On: Powered device is connected
Off: Powered device is disconnected
Alarm
Red
Link down or power down
