1. General Safety Warnings
Always ensure the computer case is placed on a stable, flat surface to prevent it from tipping over.
Keep the case away from water, moisture, or high humidity environments to avoid electrical hazards.
Do not block or obstruct the ventilation openings to ensure proper airflow and prevent overheating.
1. Gaming Case : ATHENA M3
1. Front Panel
2. Top Megnetic Dust Filter
3. IO Port Module
4. Top Radiator (Fan) Mounting Holes
5. Right Side Panel
6. Left Side Tempered Glass
7. PCIe Slots
8. Power Supply Unit Mounting Hole
9. Power Shroud
10. Power Shroud Fan Mounting Hole
11. Rear Fan
12. Front Fans
13. Fan Hub
14. Motherboard Placement
15. Motherboard Mounting Holes
16. HDD/ SSD Cage
17. SSD Cage
18. Bottom Megnetic Dust Filter
19. Chassis Pedestals
ARGB Port
ARGB Cable Port
LED Switch Button
Cable Port
SATA Cable Port PWM Cable Port
PWM Port
SATA Cable LED Switch Button Cable ARGB Cable PWM Cable
2. Chassis Protection : EPS Protection Foam
3. Chassis Dust Cover
4. Preinstalled Fans : GAMDIAS NOTUS Fans x 4
5. Accessory Box : Screws and Standoffs
A. Motherboard/ SSD screws --------------------------------------------------------------------
B. Motherboard additional standoffs ----------------------------------------------------------
C. PSU/ GPU PCIe screws ---------------------------------------------------------------------------
D. HDD cage screws ------------------------------------------------------------------------------------
E. Cable ties --------------------------------------------------------------------------------------------------
6. Accessory Box : Cable Ties
1. Case Type: MID Tower
2. Motherboard Support: E-ATX, ATX, Micro-ATX, Mini-ITX
3. Expansion Slots: 7
4. Material: SPCC, ABS, Tempered Glass
5. Product Dimension : 460 x 218 x 450 mm(18.1 x 8.6 x 17.7 inch)
6. Chassis Dimension : 430 x 218 x 430 mm(16.9 x 8.6 x 16.9 inch)
7. Radiator Support : Top: 360 mm Front: 360mm Rear:120 mm、 、
8. Fan Support : Top: 3 x 120mm , 2 x 140mm Front : 3 x 120 mm Rear: 1 x 120mm、 、
9. Motherboard Sync : 5V 3-Pin Addressable Header
10. Drive Bays : 2 x 3.5" or 1 x 2.5"+1 x 3.5"(HDD Cage) 4 x 2.5"、
11. Clearence : CPU cooler height limitation: 170mm VGA length limitation: 420mm、 、
PSU length limitation: 200mm
2. Electrical Safety
Disconnect the power supply before installing or modifying any internal components.
Avoid touching internal components directly; always ground yourself to prevent static discharge, which can
damage sensitive components.
Use only compatible power supplies and cables, ensuring that all connections are secure and free from
fraying or damage.
3. Handling Precautions
Handle the computer case with care during transportation to prevent physical damage.
Use appropriate tools when assembling or disassembling components inside the case to avoid injury.
Do not force components into place; ensure they align properly before securing them.
4. Fire Hazard Warnings
Ensure all components are properly ventilated and not overheating, as this can be a potential fire hazard.
Avoid overloading electrical circuits connected to the computer case to prevent overheating and potential
fire risks.
Keep flammable materials away from the computer case.
5. Child Safety
Keep the computer case and its components out of reach of children.
Do not allow children to play with or operate the computer case, especially when it is powered on.
6. Cleaning and Maintenance
Unplug the computer case from the power source before cleaning.
Use a dry, soft cloth for cleaning the exterior of the case. Do not use liquid cleaners or aerosols.
Periodically check and clean the ventilation openings to ensure proper airflow.
7. Installation Safety
Ensure that all components are installed correctly and securely before powering on the system.
Double-check connections and screws to prevent potential hazards during operation.
Follow the manufacturer's guidelines for component installation and ensure compatibility with the case.
8. Disposal Instructions
Dispose of the computer case and its components according to local electronic waste regulations.
Safety Information
Motherboard Installation
01 02 01 02
Fan Hub

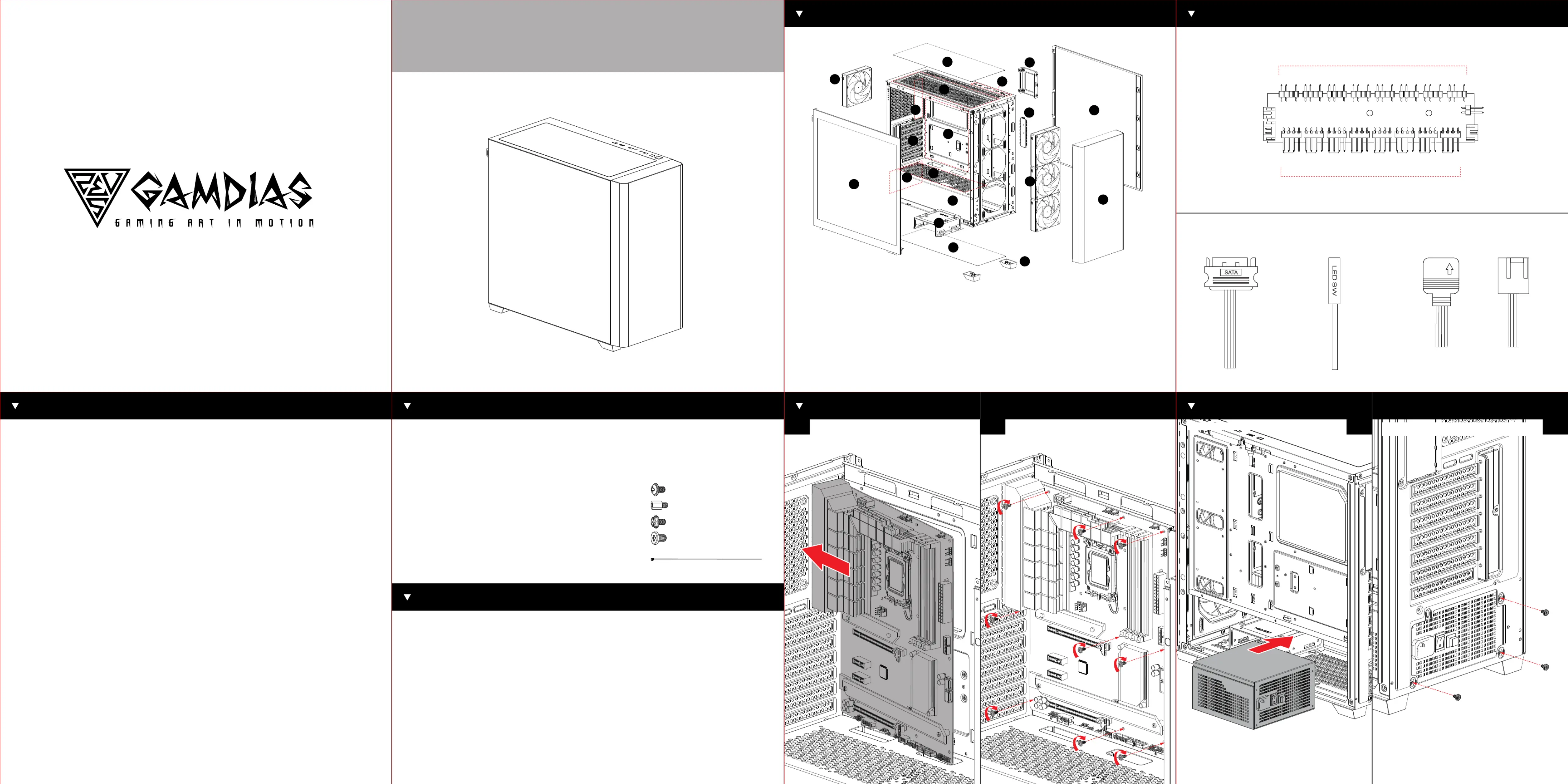

Case Layout and Parts Identification
Specification
Power Supply Unit (PSU) InstallationPackage Contents
ATHENA
I
M3
MID-Tower PC Case
1
2
3
4
5
6
7
8
9
10
14
15
16
17
18
19
11
12
13
Place the standoffs in the appropriate
positions for your motherboard size.
Slide the PSU into the bottom compartment. Secure the PSU with screws and connect the
power cables to the motherboard.
Align the motherboard with the standoffs and
secure it with screws.
