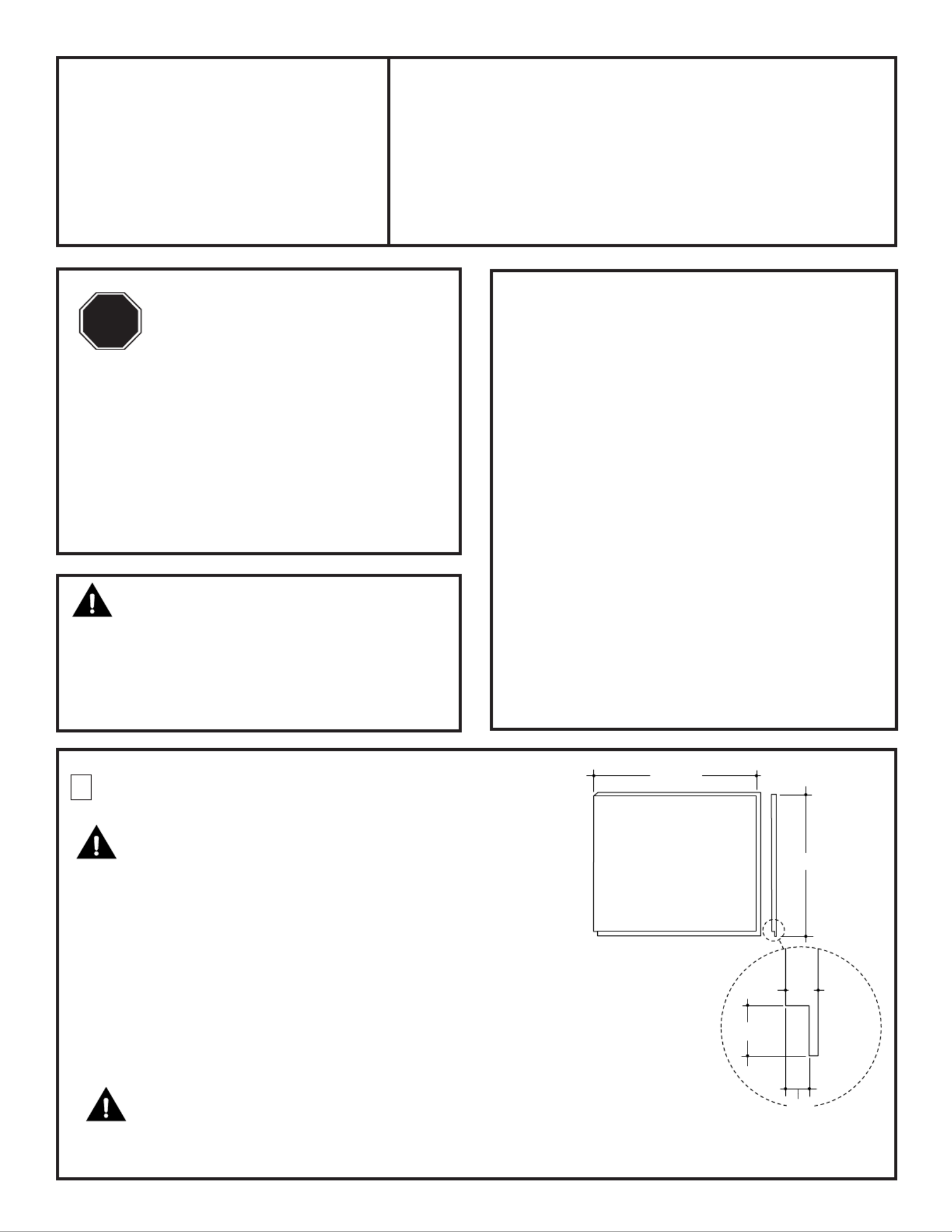

BEFORE YOU BEGIN
Read these instructions completely
and carefully.
IMPORTANT – Save these instruc-
tions for local inspector’s use.
IMPORTANT – Observe all governing
codes and ordinances.
Note to Installer – Be sure to leave these
instructions with the Consumer.
Note to Consumer – Keep these instructions
with your Owner’s Manual for future
reference.
Installation
Instructions
3/4" Custom Dishwasher
Door and Access Panel Kit
GPF475 Kit
WARNING:
To prevent electric shock, disconnect
electrical power supply to dishwasher before
changing panels. Do not operate dishwasher
while changing panels or when lower access
panel assembly is removed.
TOOLS AND MATERIALS REQUIRED:
• 1/4" socket driver
• Phillips screwdriver
• Electric drill
• 1/8" and 3/16" drill bits
• Carpenters square
• Safety Glasses
The custom panels should be constructed in
the same manner as cabinet doors. Cut edges
can be seen and must be finished for the best
appearance.
The GPF475 Trim Kit provides for the installa-
tion of 3/4" thick custom door and access
panels with a typical 4" high toekick.
KIT INCLUDES:
• Door panel support
• 7, 5/8" phillips flat head screws
• 3 round head screws
• GPF100 spring kit
STOP
1 CUT 3/4" THICK CUSTOM
PANELS TO SIZE
CAUTION:
Verify door panel height before cutting the
custom panel. Measure from the bottom of the
escutcheon to the bottom of the door. Some
models require shorter door panels.
• Cut the 3/4" thick door panel to the
dimensions shown. (19-13/16" or 19-3/8"H x
23-5/8"W.)
• Rout the bottom edge of the door panel on
the appearance side, 1/2" deep and 1-9/16"
high resulting in 1/4" thickness. See
illustration.
CAUTION:
Some models require 19-3/8" panel height.
Measure before cutting the panel.
Note:
The custom wood
access panel should
evenly match the
bottom of adjacent
cabinets. Adjustments
made to the leveling
legs to obtain correct
height can affect the
vertical dimension
(height) of the access
panel.
19-13/16"
23-5/8"
3/4" Thick Panel
Appearance Side
1-9/16"
3/4"
1/2"
