49-2001155 Rev. 0 08-22 GEA
Drawer Front Accessory JXDF21T for RV Range
Owner's Manual and
Installation Instructions
Installation Instructions

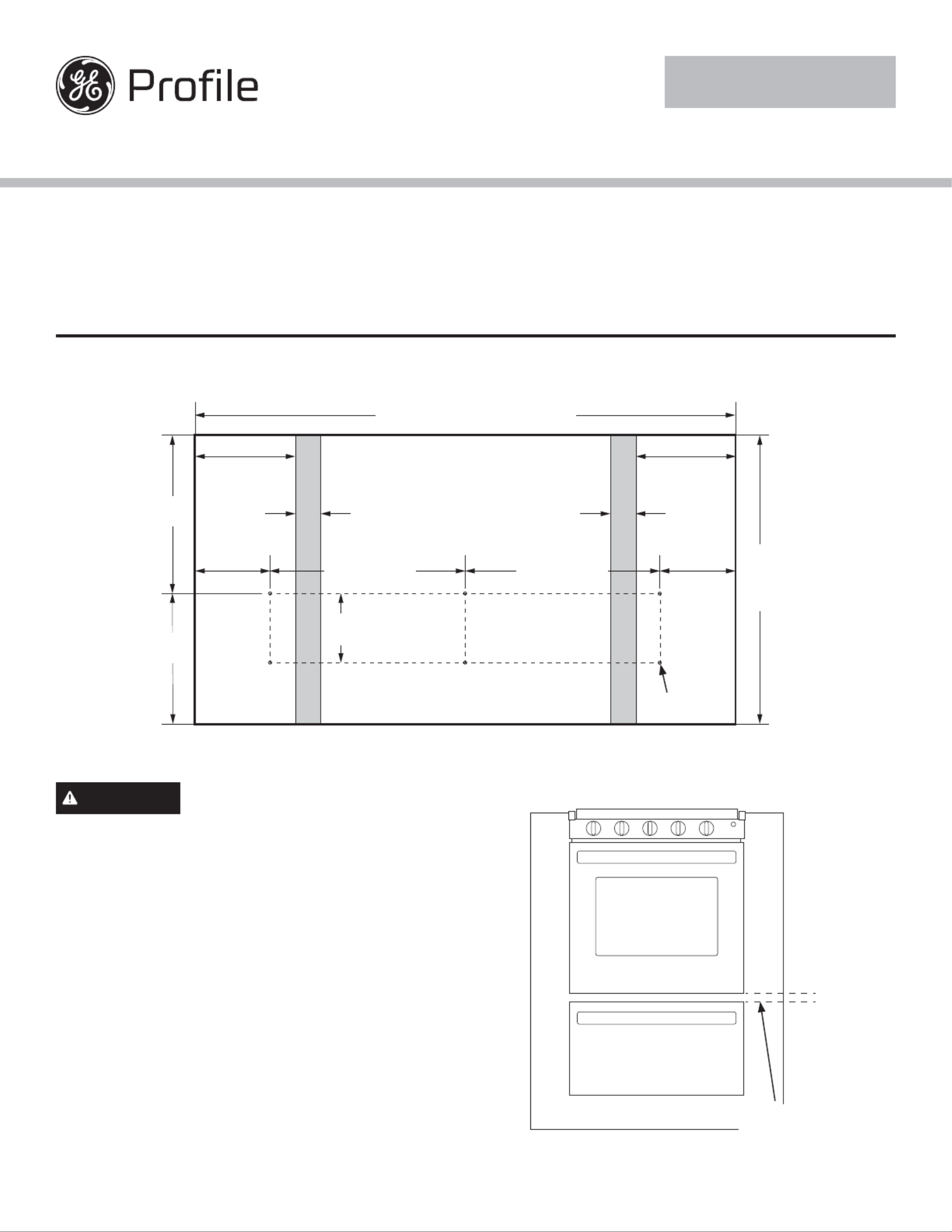

Use Figure 1 to determine the preferred mounting position of the drawer front to the drawer face.
WARNING Position the drawer front in relation to the
drawer face so that the top of the drawer front is at least
1/2" below the bottom of the range door. This positioning is
important to ensure proper airflow for combustion and cooling
to your range. Proper positioning of the drawer front will also
ensure the range door will not interfere with the drawer front as
the range door and drawer open and close (see Figure 2).
Figure 2
Top of drawer front should
be at least 1/2" below
bottom of range door.
NO SCREW ZONE
NO SCREW ZONE
Overall Width = 21-1/2" (544 mm)
7-3/4" (195 mm) 7-3/4" (195 mm) 3"
(77 mm)
3"
(77 mm)
4"
(100 mm)
4"
(100 mm)
2-3/4"
(70 mm)
1"
(25 mm)
1"
(25 mm)
Overall
Height =
11-1/2"
(292 mm)
6-5/16"
(161 mm)
5-3/16"
(131 mm)
Figure 1
Pilot Holes
x6
What you will need for installation:
• Tape Measure
• Drill with drill bits
• 6 Screws
• Screwdriver
