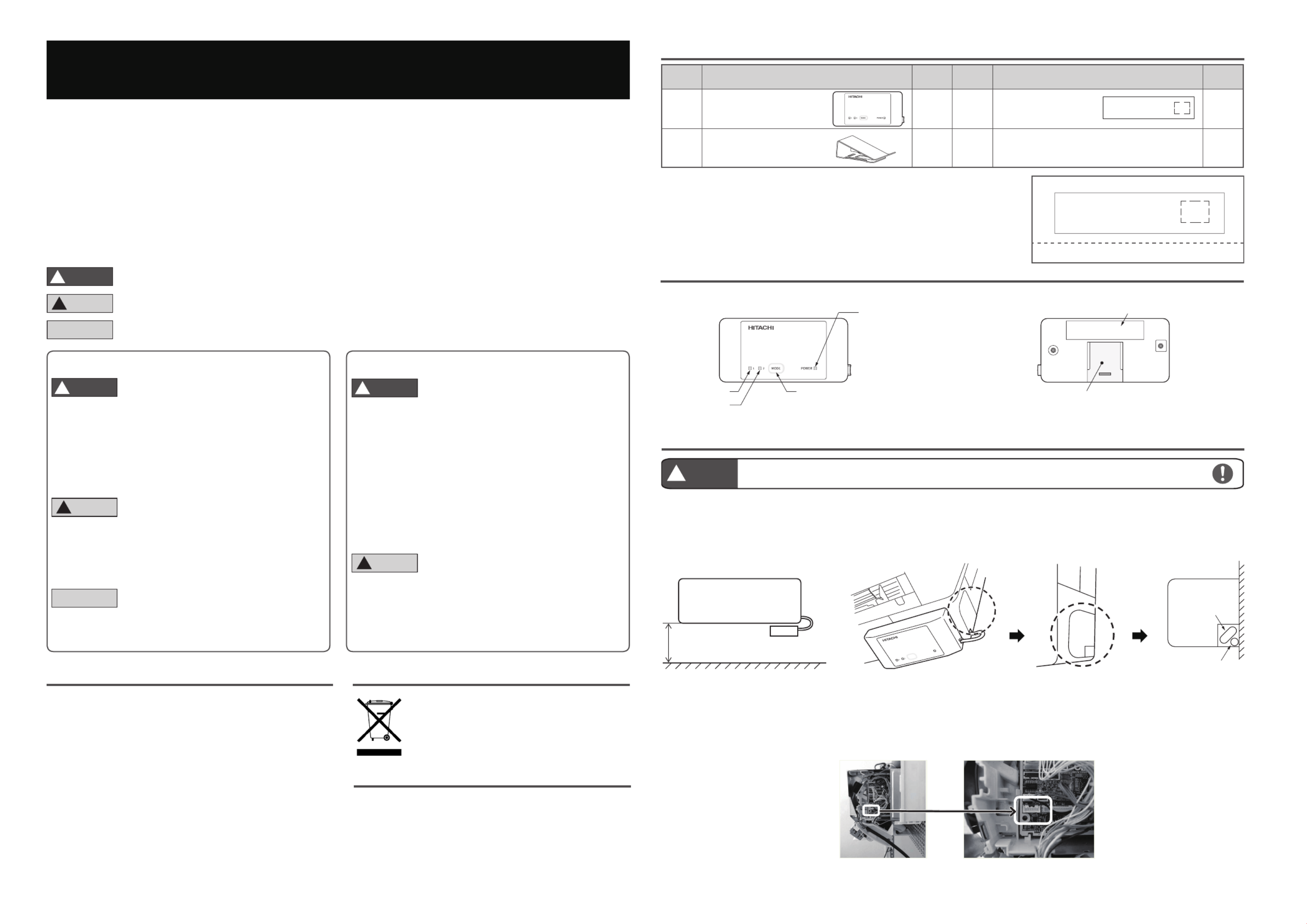

Pagina 1/3
Front view Rear view
②Fixing clip
Elements for fixing Adapter①
Model label
(Model name, Manufacturing No., SSID, KEY)
Power LED
Link LED 1
Link LED 2
Mode button
Product Component Name
General Information
airCloud Home is an cloud-based solution for remotely controlling your Hitachi air conditioning system via smart phone. The airCloud Home Adapter
SPX-WFG02 is used to connect your air conditioning system to Cloud through your W-iFi home router. Please read the guide and safety precautions
before installing the Adapter. The installation is required to be performed by a professional. Please follow all of the instructions below carefully and
keep the guide for the entire life of the Adapter. Any installation or use not foreseen by Johnson Controls-Hitachi Air Conditioning will be deemed non-
compliant. This would invalidate the warranty and discharges Johnson Controls-Hitachi Air Conditioning of all liability, as does any failure to comply
with the instructions given herein.
No. Name Qty. No. Name Qty.
①Adapter with connecting cord
(1.0m) 1③SSID KEY Label 1&
②Fixing clip 1 ④Operation and Installation Guide (this manual) 1
Packing List
SSID:
KEY
:
Paste SSID&KEY label on the space on the right side as shown in the figure on ③
the right, and please write down the installation location (like living room, bed room,
etc.) on the label.
airCloud Home Adapter SPX-WFG02
Operation and Installation Guide
- 1 - - 2 -
General Safety Advice
- Do not try to open the housing of the Adapter. Avoid dropping or impact and Never immerse the Adapter in liquid.
- Do not use abrasive products or solvents to clean the housing of the Adapter. Its surface can be cleaned using a soft dry cloth.
- Do not use the Adapter outdoors. Do not route the connection cable outdoors.
- Any use or modification of the equipment not foreseen by Johnson Controls-Hitachi Air Conditioning could endanger users.
WARNING
! Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION
! Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
NOTICE Indicates information considered important, but not hazard-related (for example, messages relating to property damage).
For Installers For Users
WARNING
!
- Make sure there is no dust on connection points such as the power
terminals and/or on the cable. Risk of fire or electric shocks.
- Only use the cable supplied. It must not be altered. Risk of cable
heating, resulting in a fire.
- Do not install the Adapter near devices that could be affected by
radio waves.
- Do not allow children to touch the Adapter. Risk of injury.
CAUTION
!
- Do not install the Adapter in a location where devices using radio
frequencies as a transmission medium are prohibited (refer to the
applicable local standards).
- Do not install the Adapter in a location where there may be people
with heart pacemakers.
NOTICE
- Avoid installing the Adapter in an environment with high humidity
(e.g. bathroom).
WARNING
!
- Do not operate the air conditioner with ambient humidity above 80%.
Water droplets may collect on the moving flaps and drip onto and
damage equipment placed under the indoor unit. The damage may
be worse if the problem is not detected during remote operations
from App.
- This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
- Children should be supervised to ensure that they do not play with
the appliance.
CAUTION
!
- Make sure that the Air Conditioning unit is active during Wi-Fi
communication operations.
- Abnormal operation may result in fire or electric shocks. Have the
Adapter installed by a qualified installer.
−ABS plastic housing.
−Configuration: AP and WPS.
−Operating temperature: 5°C to 35°C.
−Operating humidity: between 30% and 80%.
−Index protection rating IP30.
−Pollution category: Class 2.
−Dimensions (l × w × h): 80 × 40 × 16.5 mm.
−Wireless LAN standard: IEEE 802.11b/g/n
−Security: WEP/WPA/WPA2/Open.
−Frequency used and maximum power used: 2.4000 GHz - 2.4845
GHz/erp < 100 mW.
−Power supply: 12V 150mA DC.
−Integrated antenna.
Do not dispose of the Adapter with the household waste.
Please take it to a collection point or an approved centre
to ensure it is recycled.
Hereby, Johnson Controls-Hitachi Air Conditioning declares that the
radio equipment type 2 is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the
following internet address: www.airdocumentation.com
Technical Specifications Recycling
Declaration of Conformity
SSID&KEY label paste position
Installation location䠖
SSID䠖
KEY
䠖
Installation Procedure
Please unplug the air conditioner before installing this Adapter.
WARNING
!
(1) Please reserve more than 40mm space in the lower part of the indoor unit as shown on figure (a).
(2) Remove the front cover of the air conditioning unit and the cover of the electric box. Refer to the air conditioner installation manual for instructions
on removing the front cover and to open the electric box.
(3) The connecting cord supplied with the Adapter must be connected to the electronic board inside the electric box. Please pull the connecting cord
from the connecting cord outlet as shown on figure(b), figure(c) and figure(d).
MODE POWER
Power cord
Connecting cord
Please reserve more than 40mm space
in the lower part of the indoor unit.
Figure (a) Figure (b) Figure (c) Figure (d)
(4) Connect the connecting cord to the electric box as shown on figure (e). The connector on the electric board is usually marked as CN7. The position
of CN7 connector may vary depending on the air conditioning model. Refer to the air conditioning system installation manual to confirm the
connector number.
(5) Close the cover of the electric box, taking care not to trap the cable. Close the front cover of the air conditioning unit. Refer to the air conditioner
installation manual for instructions on closing the electric box and closing the front cover.
Figure (e)
