The HP ProLiant DL380e Gen8 sets the next generation standards of 2U 2-socket rack servers for the industry. With enhanced
configuration flexibility, unmatched performance, and leading energy efficient design the DL380e Gen8 offers the perfect solution for the
dynamic compute and storage requirements of today's demanding datacenters.

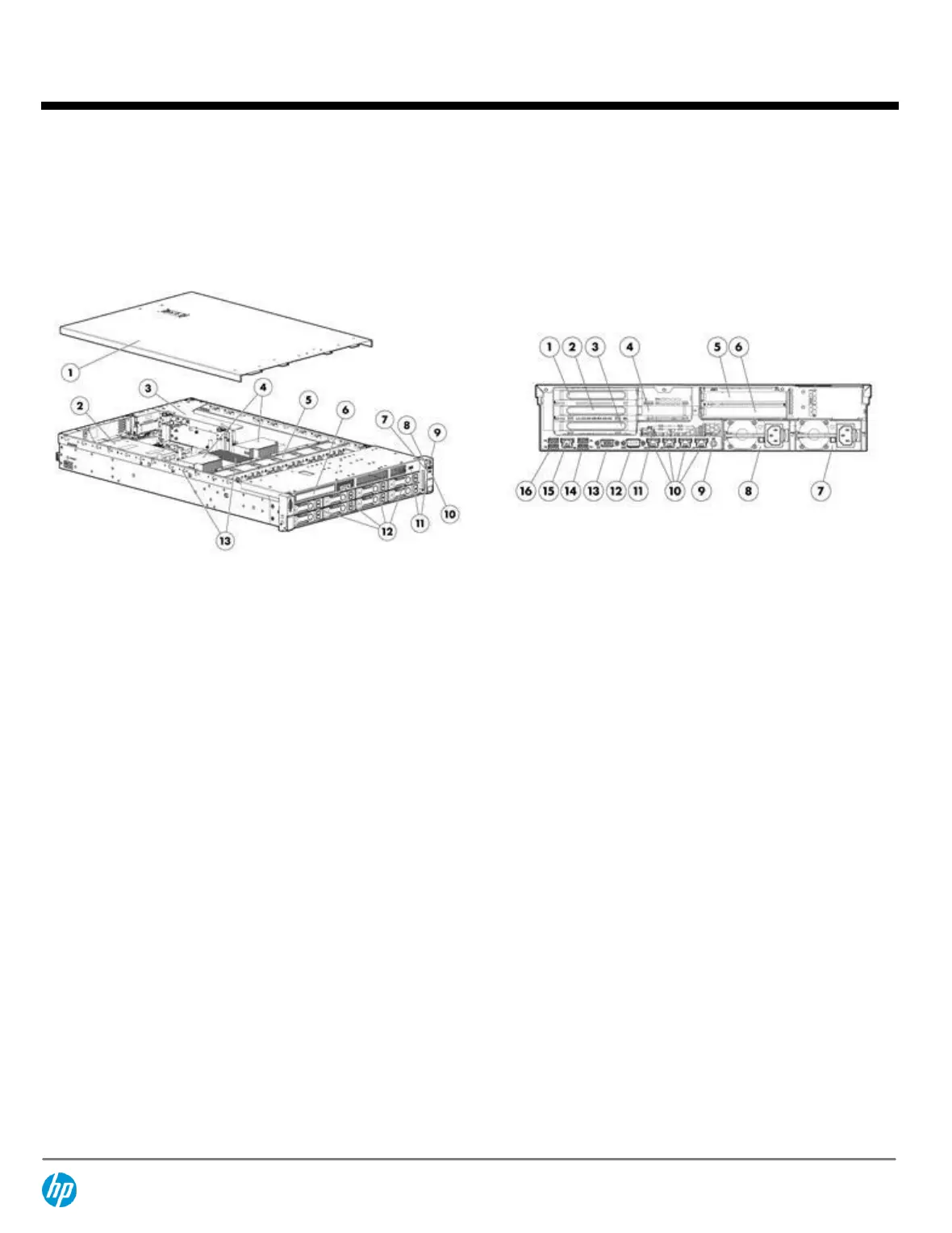

Front View:
Rear View:
1.
Quick removal access panel
1.
Slot1 PCIe3 p1-x8 (4, 1)
2.
Redundant Hot Plug Power Supplies(upgradeable option)
2.
Slot2 PCIe3 x16 (8, 4, 1)
3.
Removable Riser Cage assembly
3.
Only for riser board without SAS support: Slot3 PCIe3 p1-x8 (8, 4, 1)
4.
Up to 2 Intel E5-2400 Series Processors
4.
Slot4 PCIe2 p1-x8 (4, 1)
5.
Removable Hot Plug Fans modules, (optional, full N+1
redundancy)
5.
Slot5 PCIe3 x16 (16, 8, 4, 1) (optional)
6.
Optical Disk Drive Bay
6.
Slot6 PCIe3 x16 (8, 4, 1) (optional)
7.
Health LED
7.
Power Supply bay1 (Primary Power Supply)
8.
Network activity LED
8.
Power Supply bay 2 (Shown populated: optional)
9.
Power On /Standby button and system power LED button
9.
Unit ID LED/Button
10.
Unit ID LED
10.
HP Ethernet 1Gb 4-port 366i Adapter (4 x 1GbE)
11.
USB connectors
11.
Service tool
12.
Hard Drive bays
12.
Serial connector
13.
12 DIMM slots: DDR3 Registered(RDIMM), Load Reduced
(LRDIMM) or Unbuffered(UDIMM) memory
13.
Video connector
14.
USB connectors (2)
15.
iLO connector
16.
USB connectors (2)
QuickSpecs
HP ProLiant DL380e Generation 8 (Gen8)
Overview
DA - 14328 Worldwide — Version 18 — April 29, 2013
Page 1
Probleemoplossing HP ProLiant DL380e Gen8
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Gewicht: | 42990 g |
| Breedte: | 445.5 mm |
| Diepte: | 698.5 mm |
| Hoogte: | 87.4 mm |
| Frequentie van processor: | 1.8 GHz |
| Processorfamilie: | Intel® Xeon® E5 familie |
| Processormodel: | E5-2403 |
| Aantal processorkernen: | 4 |
| Ethernet LAN: | Ja |
| Processor lithografie: | 32 nm |
| Aantal USB 2.0-poorten: | 6 |
| VGA (D-Sub)poort(en): | 2 |
| Aantal Ethernet LAN (RJ-45)-poorten: | 4 |
| Netvoeding: | 460 W |
| Intern geheugen: | 4 GB |
| Intern geheugentype: | DDR3-SDRAM |
| Bekabelingstechnologie: | 10/100/1000Base-T(X) |
| Intel® Wireless Display (Intel® WiDi): | Nee |
| Processor socket: | LGA 1356 (Socket B2) |
| Stepping: | M1 |
| Systeembus: | 6.4 GT/s |
| Processor aantal threads: | 4 |
| PCI Express slots versie: | 3.0 |
| Processor operating modes: | 64-bit |
| Processor cache: | 10 MB |
| Bus type: | QPI |
| Thermal Design Power (TDP): | 80 W |
| Codenaam processor: | Sandy Bridge EN |
| Maximaal aantal PCI Express-lijnen: | 24 |
| Processor cache type: | Smart Cache |
| ECC ondersteund door processor: | Ja |
| Processorfabrikant: | Intel |
| Maximum intern geheugen: | 384 GB |
| Totale opslagcapaciteit: | 0 GB |
| Soort optische drive: | Nee |
| Ondersteunde instructie sets: | AVX |
| Intel® My WiFi Technology (Intel® MWT): | Nee |
| Intel® Hyper Threading Technology (Intel® HT Technology): | Nee |
| Intel® Turbo Boost Technology: | Nee |
| Intel® Quick Sync Video Technology: | Nee |
| Intel® InTru™ 3D Technology: | Nee |
| Intel® Clear Video HD Technology (Intel® CVT HD): | Nee |
| Intel® Insider™: | Nee |
| Intel® Flex Memory Access: | Nee |
| Intel® AES New Instructions (Intel® AES-NI): | Ja |
| Enhanced Intel SpeedStep Technology: | Ja |
| Execute Disable Bit: | Ja |
| Idle States: | Ja |
| Thermal Monitoring Technologies: | Ja |
| CPU configuratie (max): | 2 |
| Intel® Enhanced Halt State: | Ja |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID): | Nee |
| Intel® VT-x with Extended Page Tables (EPT): | Ja |
| Ingebouwde opties beschikbaar: | Nee |
| Intel® 64: | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d): | Ja |
| Intel® Clear Video-technologie: | Nee |
| Intel® Virtualization Technology (VT-x): | Ja |
| Verpakkingsgrootte processor: | 45 x 42.5 mm |
| Conflictvrije processor: | Nee |
| Intel® Identity Protection Technology (Intel® IPT): | Nee |
| Versie Intel® Identity Protection Technology: | 0.00 |
| ARK ID processor: | 64615 |
| Intel® Trusted Execution Technology: | Ja |
| Intel® Anti-Theft Technology (Intel® AT): | Nee |
| Processorcode: | SR0LS |
| Type behuizing: | Rack (2U) |
| Maximaal intern geheugen ondersteund door processor: | 375 GB |
| Geheugentypen ondersteund door processor: | DDR3-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor: | 800,1066 MHz |
| Kloksnelheid geheugen: | 1333 MHz |
| Geheugenlayout: | 1 x 4 GB |
| Geheugenslots: | 12 |
| Aantal geïnstalleerde processoren: | 1 |
| Geheugenbandbreedte ondersteund door de processor ( max): | 25 GB/s |
| Chipset moederbord: | Intel C600 |
| Schaalbaarheid: | 2S |
| HDD interface: | Serial ATA, Serial Attached SCSI (SAS) |
| FSB Parity: | Nee |
| Front-side bus processor: | - MHz |
| Intel® Demand Based Switching: | Ja |
| Geheugenkanalen ondersteund door processor: | Trippel |
| Processorserie: | Intel Xeon E5-2400 |
| Intel® Dual Display Capable Technology: | Nee |
| Intel® FDI Technology: | Nee |
| Intel® Rapid Storage Technology: | Nee |
| Intel® Fast Memory Access: | Nee |
| RAID support: | Ja |
| Intel® Smart Cache: | Ja |
| HDD omvang: | - " |
| Maximum aantal HDD's per behuizing: | 8 |
| Maximale opslagcapaciteit: | - TB |
| Seriële poort(en): | 1 |
| aantal QPI links: | 1 |
| Soorten RAID: | 0, 1,0+1, 5,5+0 |
| Aantal hoofdvoedingen: | 1 |
| Afbeeldingentypetoewijzing: | <div><img src="https://ark.intel.com/inc/images/diagrams/diagram-18.gif" title="Block Diagram" /></div> |
| Hot-swap: | Ja |
