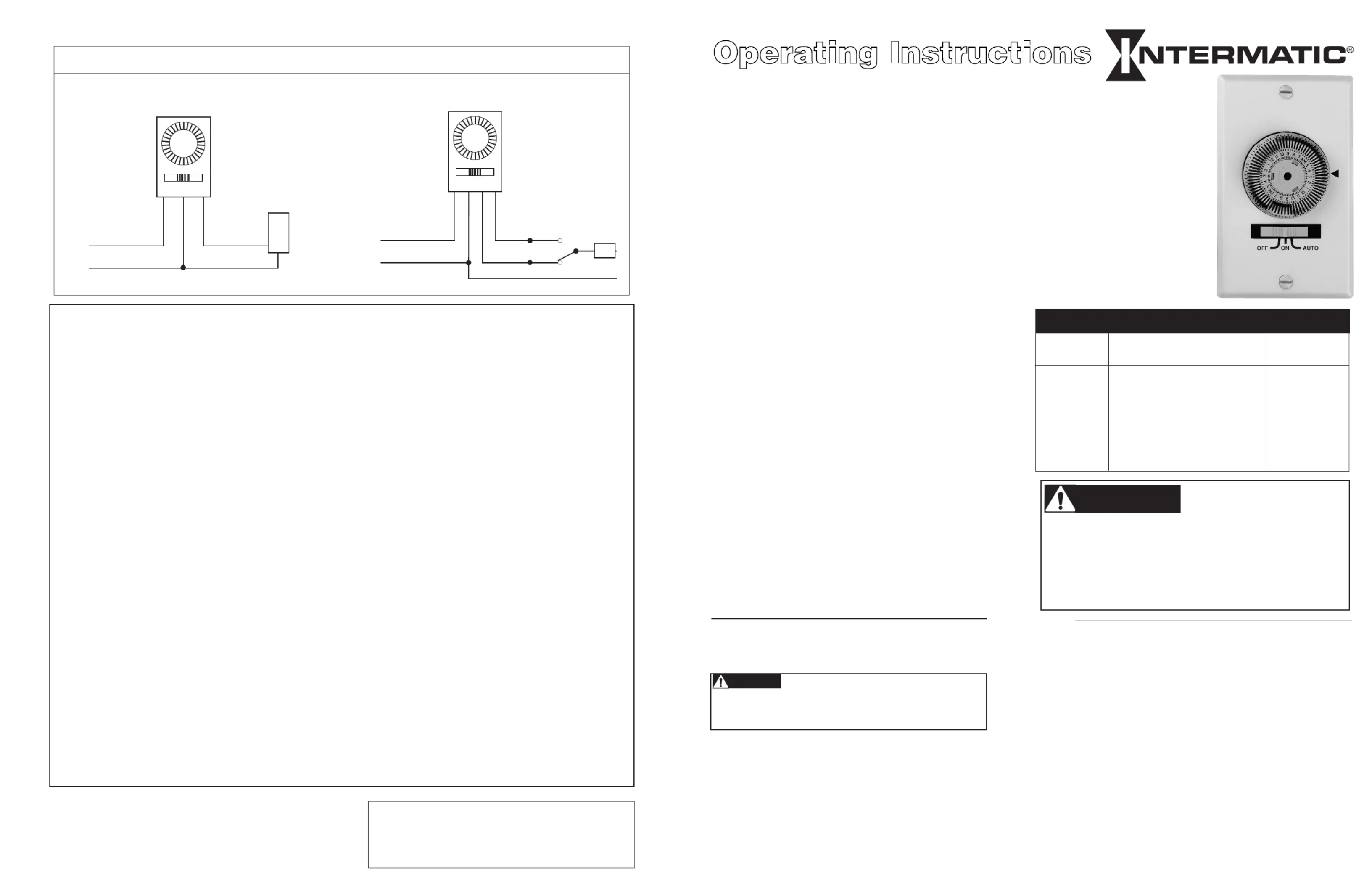

KM2 Series In-Wall Timers

SPECIFICATIONS

Clock Input: 120 VAC, 60 Hz

Switch Rating: SPST and SPDT

20 A @ 120 VAC, 60 Hz

1 HP @ 120 VAC

Environmental Ratings:

Operating Temperature Range:

–40°F to 180°F (–40°C to 85°C)

Operating Humidity: 0 - 95% RH,

non-condensing

Wiring Connections: Three #14AWG lead wires

24 Hour

Model Description Switch

KM2ST-1G single gang 20A, SPST

KM2STU-1G three-way single gang 20A, SPDT

KM2ST-2G 2-gang/toggle opening 20A, SPST

KM2ST-2R 2-gang/receptacle opening 20A, SPST

KM2ST-2D 2-gang/decorator opening 20A, SPST

KM2ST-3D 3-gang/decorator opening 20A, SPST

KM2ST-3G 3-gang/toggle openings 20A, SPST

KM2ST-4G 4-gang/toggle openings 20A, SPST

ORDERING DATA

Replaces standard wall switch to provide automatic control of outdoor

or indoor lighting, fans, pumps, office machines, and other types of

circuits. Captive trippers are easy to set, can’t be lost. 72 trippers

provide up to 36 ON/OFF events in 24 hour period. OFF/ON/AUTO

override switch provides continuous ON or OFF positions. UL Listed.

Easy wiring and installation.

FEATURES

24 hour time switch program

Captive trippers with 20 minute switching interval

Reliable synchronous timer motor

SPST or SPDT 20A, 1HP @ 125V switch

OFF/ON/AUTO manual switch

Mounts to standard electrical wall boxes

Available with 1, 2, 3, or 4-gang wall plates with

toggle switch openings, 2-gang or 3-gang wall

plates with decorator opening or 2-gang

wall plate with duplex receptacle opening.

Three way (SPDT) switch available

UL and Canadian UL Listed

WARNING

ARNING

ARNINGWARNING

• To avoid re, shock or death, turn off power at circuit

breaker and test that power is off before wiring or servicing.

• Read instructions completely before installation and retain

for future reference.

• Observe all national and local electrical codes.

• Alterations or modications to the device will void the

warranty.

Installation Instructions

1. Check the input and output ratings on unit to make

sure this product is suitable for your application.

To avoid fire, shock or death, turn off power at

circuit breaker and test that power is off before

wiring.

2. Wire in accordance with all national and local elec-

trical codes (see wiring diagrams below).

3. Verify that all connections are secure. Double check

all twist-on wire connectors.

4. Mount timer into wall box using the supplied screws.

5. Mount wall plate onto timer using the supplied

screws.

Programming Instructions

The timer dial contains 72 trippers, each representing

a 20 minute timer interval.

WARNING

ARNING

ARNINGWARNING

Setting the clock time - Rotate the dial gradually

clockwise until the current time is aligned with the tri-

angle marker at the 3 o’clock position. NOTICE! Do

not rotate the dial counter-clockwise. Doing so will

damage the timer.

Programming the timer - Move the slide switch to

the right position. Move the tripper, correspondAUTO -

ing to the start of the desired ON time, inward. Move

each adjacent tripper inward until the desired OFF time

is reached. Repeat for all desired ON/OFF cycles.

Manual Override Instructions

The slide switch provides manual operation of the

load, overriding the timer programming. If set to the

OFF position, the load will be continuously off. If set to

the ON position the load will be continuously on. For

automatic on/off function, set the switch to the AUTO

position.

158--02759

Wiring Diagrams/Diagramas de Cableado/Diagrammes de câblage

Distributed by:/Distribuidos por:/Distribué par :

HOT (BLACK)

CALIENTE (NEGRO)

CHAUD (NOIR)

RED

ROJO

ROUGE

3-Way Switch

Interruptor de 3 vías

Interrupteur à trois voies

BLUE

AZUL

BLEU

LOAD

CARGA

CHARGE

NEUTRAL (WHITE)

NEUTRAL (BLANCO)

NEUTRE (BLANC)

HOT (BLACK)

CALIENTE (NEGRO)

CHAUD (NOIR)

LOAD (RED)

CARGA (ROJO)

CHARGE (ROUGE)

LOAD

CARGA

CHARGE

NEUTRAL (WHITE)

NEUTRAL (BLANCO)

NEUTRE (BLANC)

Standard Installation/Instalación estándar/Installation normale

3-Way Installation/Instalación de 3 vías/Installation à trois voies

INTERMATIC INCORPORATED

Libertyville, IL 60048

www.intermatic.com

LIMITED ONE YEAR WARRANTY

If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole

option, free of charge. This warranty is extended to the original purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused

by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or

otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s

and batteries; (f) the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial

installation costs, removal costs, or reinstallation costs.

INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO

YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF

MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN

THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME STATES DO NOT ALLOW

LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

This warranty service is available by either (a) returning the product to the line at dealer from whom the unit was purchased, or (b) completing a warranty claim on

www.intermatic.com. This warranty is made by: Intermatic Incorporated, Customer Service Libertyville, Illinois 60048. For warranty service go to:

http://www.intermatic.com or call 815-675-7000.

GARANTÍA LIMITADA DE 1 AÑO

Si en el plazo especificado por la garantía, el producto falla debido a un defecto de material o mano de obra, Intermatic Incorporated lo reparará o reemplazará,

a opción propia, de forma gratuita. Esta garantía se aplica solamente al comprador particular original y no es transferible. Esta garantía no se aplica en los casos

siguientes: (a) daños en unidades causados por accidente, caídas o abuso durante su manipulación, fuerza mayor o cualquier uso negligente; (b) unidades

que hayan sido sometidas a una reparación no autorizada, abiertas, desmontadas o modificadas de otra forma; (c) unidades que no se hayan usado según las

instrucciones; (d) daños que excedan el costo del producto; (e) lámparas selladas y bombillas, LED y pilas; (f) el acabado de cualquier parte del producto, tal

como la superficie y el desgaste debido a la intemperie, p1-ya que esto se considera como un desgaste natural; (g) daños durante el transporte, costos de instalación

iniciales, costos de desmontaje o costos de reinstalación.

INTERMATIC INCORPORATED NO SERÁ RESPONSIBLE DE LOS DAÑOS EMERGENTES O CONSECUENTES. ALGUNOS ESTADOS NO PERMITEN LA

EXCLUSIÓN O LIMITACIÓN DE LOS DAÑOS EMERGENTES O CONSECUENTES, POR LO QUE ES POSIBLE QUE NO SE APLIQUE EN SU CASO LA

LIMITACIÓN O EXCLUSIÓN ANTERIOR. ESTA GARANTÍA SUSTITUYE LAS DEMÁS GARANTÍAS EXPLÍCITAS O IMPLÍCITAS. TODAS LAS GARANTÍAS

IMPLÍCITAS, INCLUIDA LA GARANTÍA DE COMERCIABILIDAD Y LA GARANTÍA DE IDONEIDAD PARA CIERTO FIN, SE MODIFICAN AQUÍ PARA EXISTIR

SÓLO SEGÚN ESTÁN CONTENIDAS EN ESTA GARANTÍA LIMITADA, Y DEBEN TENER LA MISMA DURACIÓN QUE EL PERÍODO DE GARANTÍA INDICADO

ARRIBA. ALGUNOS ESTADOS NO PERMITEN LIMITACIONES DE LA DURACIÓN DE UNA GARANTÍA IMPLÍCITA, POR LO QUE ES POSIBLE QUE LA

LIMITACIÓN ANTERIOR NO SE APLIQUE EN SU CASO.

E s t e s e r v i c i o d e g a r a n t í a e s t á d i s p o n i b l e m e d i a n t e ( a ) l a d e v o l u c i ó n d e l p r o d u c t o a l d i s t r i b u i d o r a l q u e s e c o m -

p r ó l a u n d i d a d o ( b ) t e r m i n a n d o u n a d e m a n d a d e l a g a r a n t í a e n l í n e a e n w w w . i n t e r m a t i c . c o m . E s t a g a r a n t í a e s

p r o v i s t a p o r : In t e r m a t i c Inc o r p o r a t e d / C u s t o m e r Se r v i c e / L i b e r t y v i l l e , I l l i n o i s 6 0 0 4 8 / 8 1 5 - 6 7 5 - 7 0 0 0 ht t p : / / w w w . i n t e r m a t i c . c o m

GARANTIE LIMITÉE DE 1 AN

Si, dans la période de la garantie spécifiée, ce produit s’avère défectueux pour vice de matériau ou de fabrication, Intermatic Incorporated le réparera ou le rem-

placera, la décision appartenant Intermatic Incorporated, sans frais. Cette garantie ne concerne que l’acheteur initial et n’est pas transférable. Cette garantie ne

couvre pas : (a) dommages occasionnés par accident, chute ou abus lors de manipulations, cas fortuits ou toute négligence ; (b) unités ayant subi à des réparations

non autorisées, ouvertes, démontées ou modifiées d’une quelconque façon ; (c) unités qui ne sont pas utilisées conformément aux instructions ; (d) dommages su-

périeurs au coût du produit ; (e) éclairage scellé et/ou ampoule, DEL et batteries ; (f) la finition d’une partie du produit, telle que les rayures de surface et/ou le vieil-

lissement climatique qui sont considérés comme une usure normale ; (g) dommages ayant lieu pendant le transport, frais initiaux d’installation, de désinstallation ou de

réinstallation.

INTERMATIC INCORPORATED N’ENDOSSE AUCUNE RESPONSABILITÉ QUANT AUX DOMMAGES ACCESSOIRES OU INDRECTS. CERTAINES PROV-

INCES NE PERMETTENT PAS D’EXCLUSIONS OU DE LIMITATIONS AUX DOMMAGES ACCESSOIRES OU CONSÉCUTIFS, LA LIMITE INDIQUÉE CI-

DESSUS PEUT NE PAS VOUS CONCERNER. CETTE GARANTIE CI-PRÉSENTES REMPLACE TOUTES AUTRES GARANTIES EXPRESSES OU TACITES.

TOUTES LES GARANTIES TACITES Y COMPRIS LA GARANTIE DE COMMERCIALISATION ET CELLE D’ADAPTABILITÉ À DES FINS PARTICULIÈRES

SONT MODIFIÉES CI-PRÉSENTES POUR N’EXISTER QUE TELLES QUELLES DANS CETTE GARANTIE LIMITÉE ET AURONT LA MÊME DURÉE DE VA-

LIDITÉ QUE LA PÉRIODE DE GARANTIE INDIQUÉE CI-DESSUS. CERTAINES PROVINCES NE PERMETTENT PAS DE LIMITATIONS AUX TERMES DE LA

DURÉE DE LA GARANTIE TACITE, LA LIMITE INDIQUÉE CI-DESSUS PEUT NE PAS VOUS CONCERNER.

Ce service sous garantie est disponible soit (a) en retournant le produit au dépositaire où vous avez acheté l’appareil, ou (b) terminant une réclamation

de garantie sur la ligne à www.intermatic.com. Cet garantie fait par: Intermatic Incorporated/Customer Service/Libertyville, Illinois 60048/815-675-7000

http://www.intermatic.com
