Klein Tools CL100 Handleiding
Hier is de Klein Tools CL100 (Meetapparatuur) gebruikershandleiding. 8 pagina's in taal met een gewicht van 2,690,180.0 Mb. Als u geen antwoorden op uw probleem kunt vinden Vraag het onze community.

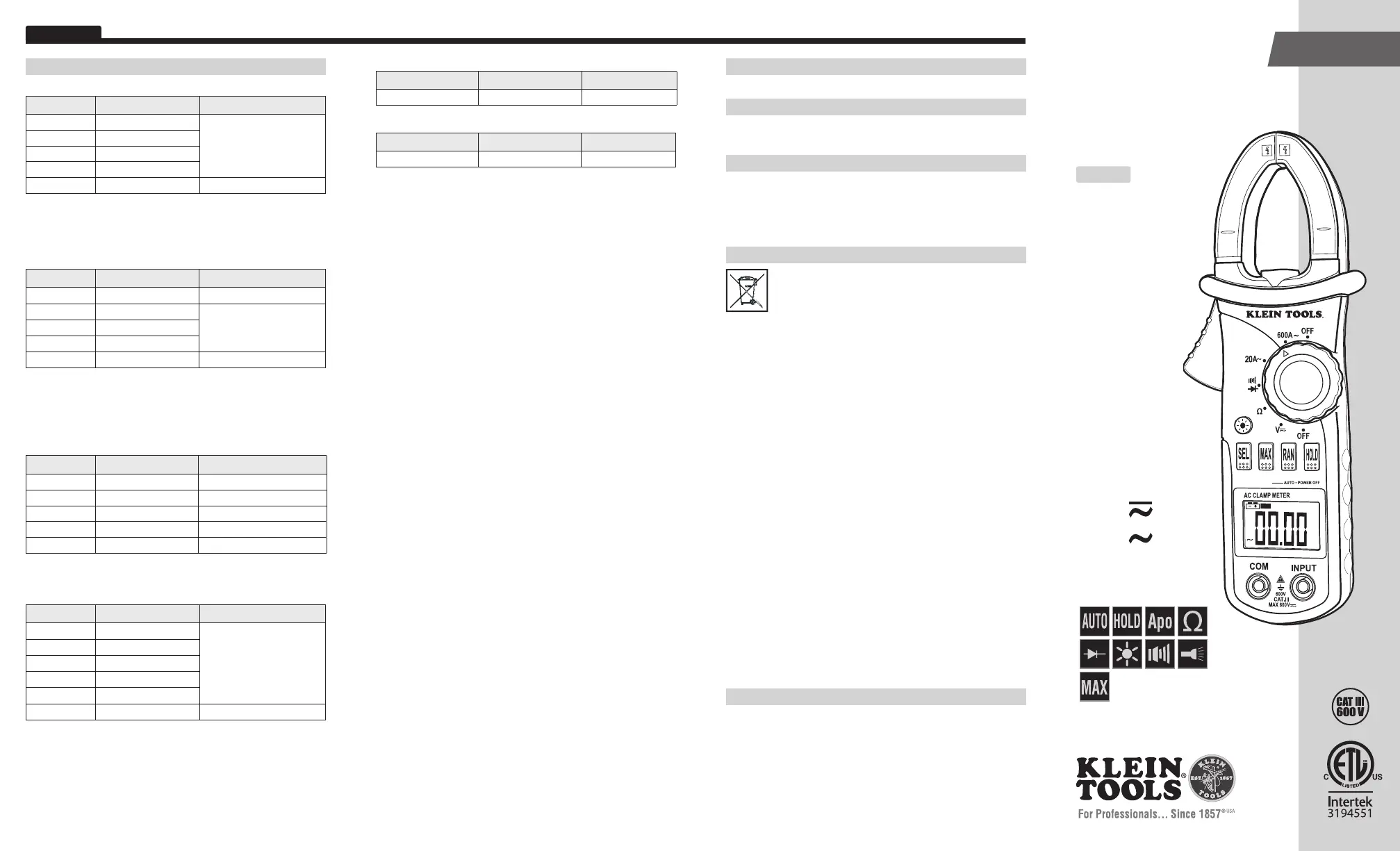

Pagina 1/8
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
customerservice@kleintools.com
www.kleintools.com
139557T Rev. 11/13 B
ENGLISH
• AUTO / MANUAL
RANGE
• MAX HOLD
• DATA HOLD
• 3-1/2 DIGIT
1999 COUNT LCD
• BACKLIGHT
• WORKLIGHT
A
AC
CL100
AUTO
WARRANTY
www.kleintools.com/warranty
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Caution: This symbol indicates that equipment and its accessories
shall be subject to a separate collection and correct disposal.
ENGLISH
Diode Test
Forward DC Current Resolution Reverse DC Voltage
Appx. 1mA 0.001V Appx. 1.5V
Continuity Test
Overload Protection Resolution Open Circuit Voltage
250V
0.1mΩ
Appx. 0.45V
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
200mV 0.1mV
± (0.8% + 2 digits)
2V 0.001V
20V 0.01V
200V 0.1V
600V 1V ± (1.0% + 2 digits)
Overload Protection:
• 200mV range: 250V DC / AC RMS
• 2V-600V ranges: 600V DC / AC RMS
Input Impedance: 10M
Ω
AC Voltage Measurement
Range Resolution Accuracy
200mV 0.1mV ± (1.0% + 10 digits)
2V 0.001V
± (1.0% + 5 digits)20V 0.01V
200V 0.1V
600V 1V ± (1.5% + 5 digits)
Overload Protection:
• 200mV range: 250V DC / AC RMS
• 2V-600V ranges: 600V DC / AC RMS
Input Impedance: 10MΩ
Response: Averaging
AC Current Measurement
Range Resolution Accuracy
2A 0.001A ± (3.5% + 20 digits)
≤
0.5A
2A 0.001A ± (3.0% + 10 digits)
>
0.5A
20A 0.01A ± (3.0% + 10 digits)
200A 0.1A ± (2.5% + 10 digits)
600A 1A ± (1.5% + 5 digits)
Frequency Range: 50 to 60Hz
Response: Averaging
Resistance Measurement
Range Resolution Accuracy
200Ω 0.1Ω
± (1.2% + 2 digits)
2k
Ω 0.001kΩ
20kΩ 0.01kΩ
200kΩ 0.1kΩ
2MΩ 0.001MΩ
20MΩ 0.01MΩ
± (2.0% + 5 digits)
Overload Protection: 250V
Open Circuit Voltage: 0.25V
Dwg Name: CL100-139557TART Dwg No: 139557T
ECO No: 15429 Pkg Dwg Ref: 1650 Rev: B
Color Reference: N/A
Instruction Manual
CL100
600A
600V
