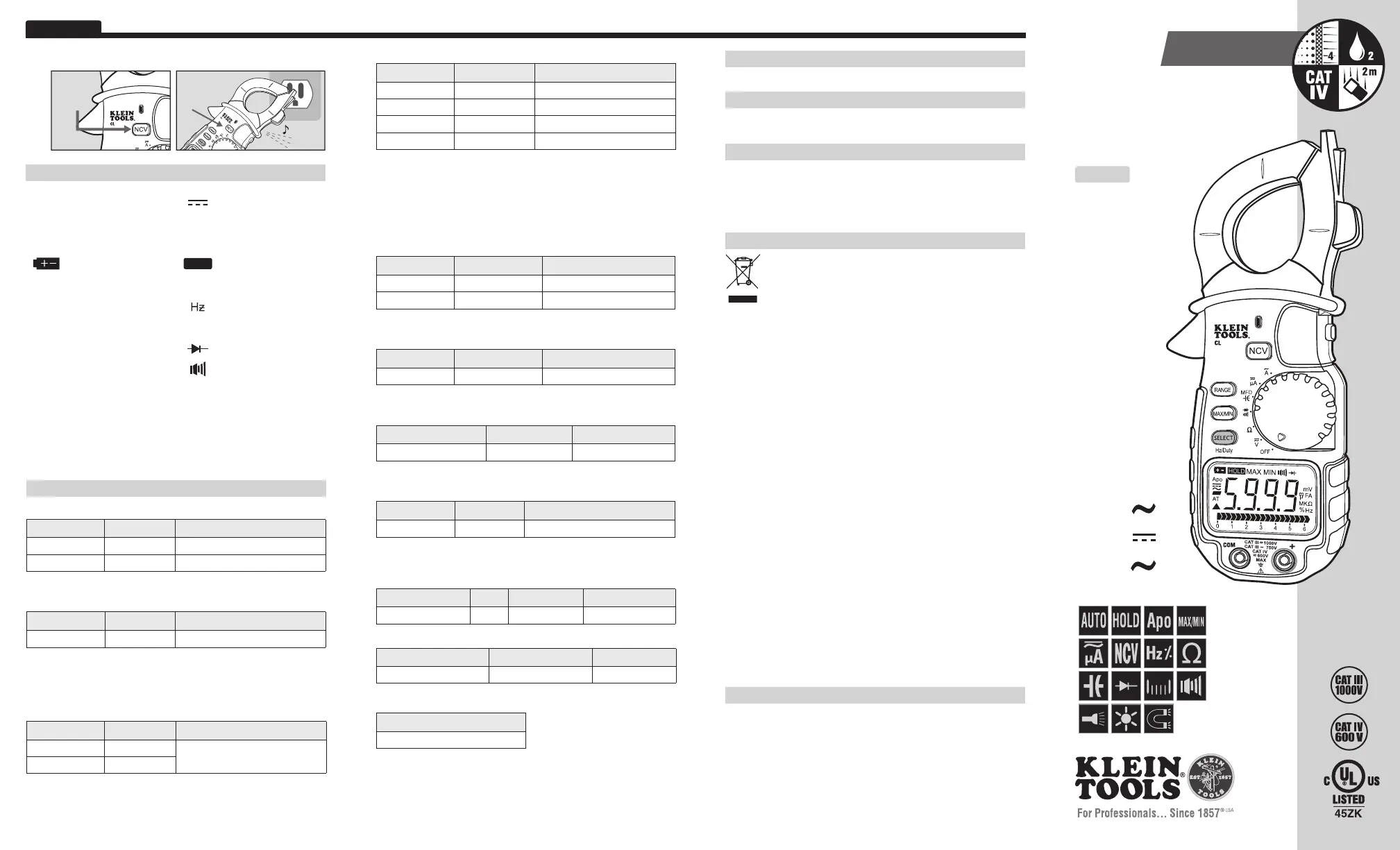

Pagina 1/8
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
customerservice@kleintools.com
www.kleintools.com
139701 Rev. 01/14 B
ENGLISH
• DATA HOLD
• BACKLIGHT
• WORKLIGHT
• ANALOG
BAR GRAPH
• MAX / MIN
• 3-5/6 DIGIT
5999 COUNT LCD
• AUTO / MANUAL
RANGE
• NON CONTACT
VOLTAGE TESTER
1200
ENGLISH
SYMBOLS USED ON LCD
~
AC Measurement DC Measurement
-
Negative DC Value
AT
Auto Range Active
O
.L.
Overload: Range Exceeded
Apo
Auto Power-Off Active
Low Battery
HOLD
Hold Active
MIN
Minimum Reading
M
AX
Maximum Reading
%
Duty Cycle Mode Frequency Mode
V
Voltage Measurement
A
Current in Amps
Ω
Resistance in Ohms Diode Test
F
Capacitance in Farads Continuity Test
n
Nano 10
-9
µ
Micro 10
-6
m
Milli 10
-3
k
Kilo 10
3
M
Mega 10
6
1200
1200
PRESS
and
HOLD
PRESS
and
HOLD
WARRANTY
www.kleintools.com/warranty
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash. Items
must be properly disposed of in accordance with local regulations.
8. Non Contact Voltage (NCV): > 25V AC
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
600mV
˜
600V
0.1mV
˜
100mV
± (0.5% + 4 digits)
1000V 1V ± (0.8% + 10 digits)
Overload Protection: 1000V
AC Voltage Measurement
Range Resolution Accuracy
600mV
˜
750V 0.1mV
˜
1V ± (2.0% + 5 digits)
Overload Protection: 750V RMS
Frequency Response: 45 to 400 Hz
Minimum Voltage for Frequency Measurement: 200mV
Response: Averaging
DC Current Measurement
Range Resolution Accuracy
600µA 0.1µA
± (1.2% + 3 digits)
2000µA 1µA
Overload Protection:
• Voltage: 600V RMS
• Current (leads): 2000µA
AC Current Measurement
Range Resolution Accuracy
600µA 0.1µA ± (2.0% + 5 digits)
2000µA 1µA ± (1.5% + 5 digits)
60A 0.01A ± (2.9% + 15 digits)
600A 0.1A ± (1.9% + 8 digits)
Overload Protection:
• Voltage: 600V RMS
• Current: (leads) 2000µA (clamp) 600A
Frequency: 45 to 400Hz
Minimum Current for Frequency Measurement: 400µA or 20A
Minimum Current for Clamp Measurement: 0.2A
Response: Averaging
Resistance Measurement
Range Resolution Accuracy
600
Ω
˜
6MΩ 0.1Ω
˜
1kΩ
± (1.0% + 4 digits)
60M
Ω 10kΩ
± (2.0% + 4 digits)
Overload Protection: 600V RMS
Capacitance Measurement
Range Resolution Accuracy
60nF
˜
6000µF 0.01nF
˜
1µF ± (3.5% + 6 digits)
Overload Protection: 600V RMS
Frequency Measurement (Voltage)
Range Resolution Accuracy
99.99Hz
˜
499.9kHz 0.01Hz
˜
100Hz ± (0.1% + 4 digits)
Overload Protection: 600V RMS Sensitivity: 2.5V RMS
Duty Cycle Measurement
Range Resolution Accuracy
1
˜
99% 0.1% ± (0.1% + 5 digits)
Overload Protection: 600V RMS Sensitivity: 1.2Vpp ~ 50Vpp
Frequency Range: < 500 Hz
Diode Test
Overload Protection Range Test Current Open Circuit Voltage
600V RMS
6.0V Appx. 0.25mA
<
1.8V DC
Continuity Test
Overload Protection Open Circuit Voltage Threshold (Appx.)
600V RMS
<
0.44V
<40Ω
Non Contact Voltage Detector
On Voltage
Appx. 25V AC
Specifications subject to change.
750V
1000V
600A
Dwg Name: CL1200-139701ART Dwg No: 139701
ECO No: 15773 Pkg Dwg Ref: 1650 Rev: B
Color Reference: N/A
Instruction Manual
CL1200
CL1200 Instruction Manuals - MASTER.indd 1-4 1/30/2014 3:34:26 PM
