675R/T Quick Start
P/N:
2900- 301389QS
Rev:
1
Scan for full manual

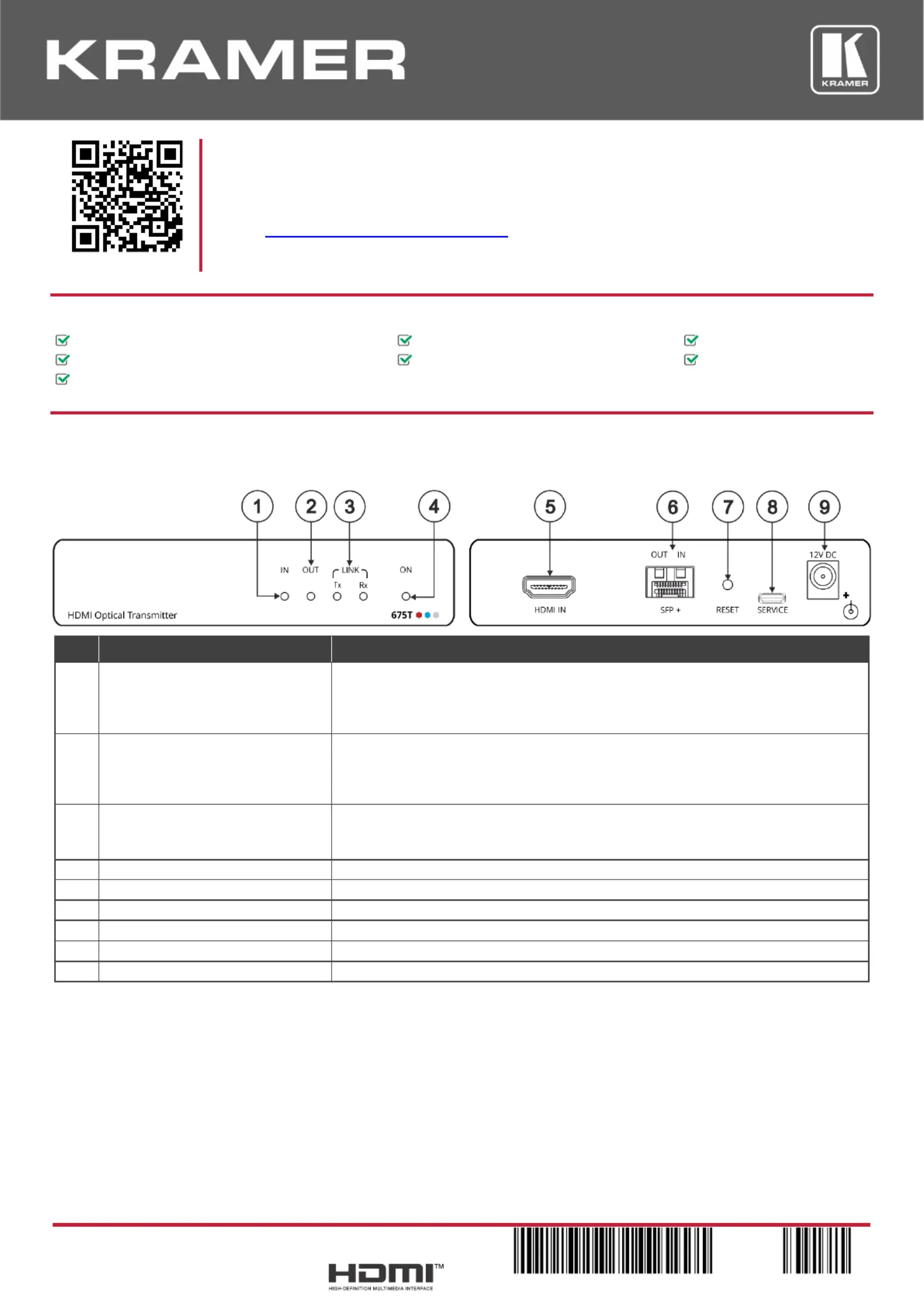

675R/T Kit Quick Start Guide
This guide helps you install and use your 675R/T for the rst time.
Go to www.kramerav.com/downloads/675R/T to download the latest user manual and check if rmware
upgrades are available.
Step 1: Check what’s in the box
675T HDMI Optical Transmitter
2 Power adapters and cords
1 Quick start guide
675R HDMI Optical Receiver
8 Rubber feet
2 Bracket sets
2 OSP-MM1 Fiber Optic SFP+ Transceivers
Step 2: Get to know your 675R/T
675T
#
Feature
Function
1
IN LED
Lights green when a connected source device (with an active HDMI signal) is
detected.
Flashes 4 times green when resetting the device.
O when a connected source device with an active signal is not detected.
2
OUT LED
Lights green when both a connected HDMI source (with an active HDMI signal) and
a connected far-end HDMI acceptor are detected.
O if either the source or the acceptor is not connected, or an active signal is not
present.
3
LINK Tx and Rx LEDs
Light green when OUT IN SFP+ is connected and an active optical link is detected.
Light red when OUT IN SFP+ is connected, an active optical link is not detected. but
O when OUT IN SFP+ is disconnected.
4
ON LED
Lights green when the device receives power.
5
HDMI™ IN Connector
Connect to an HDMI source.
6
OUT IN SFP+ Connector
Connect the ber optic cable to the plugged- SFP+ optical module connect . in or
7
RESET Recessed Button
Press and hold to reset settings to factory default values.
8
SERVICE Micro USB Port
Connect to a PC to perform rmware upgrade (via K-Upload).
9
12V DC Power Connector
12V DC connector for powering the unit.
