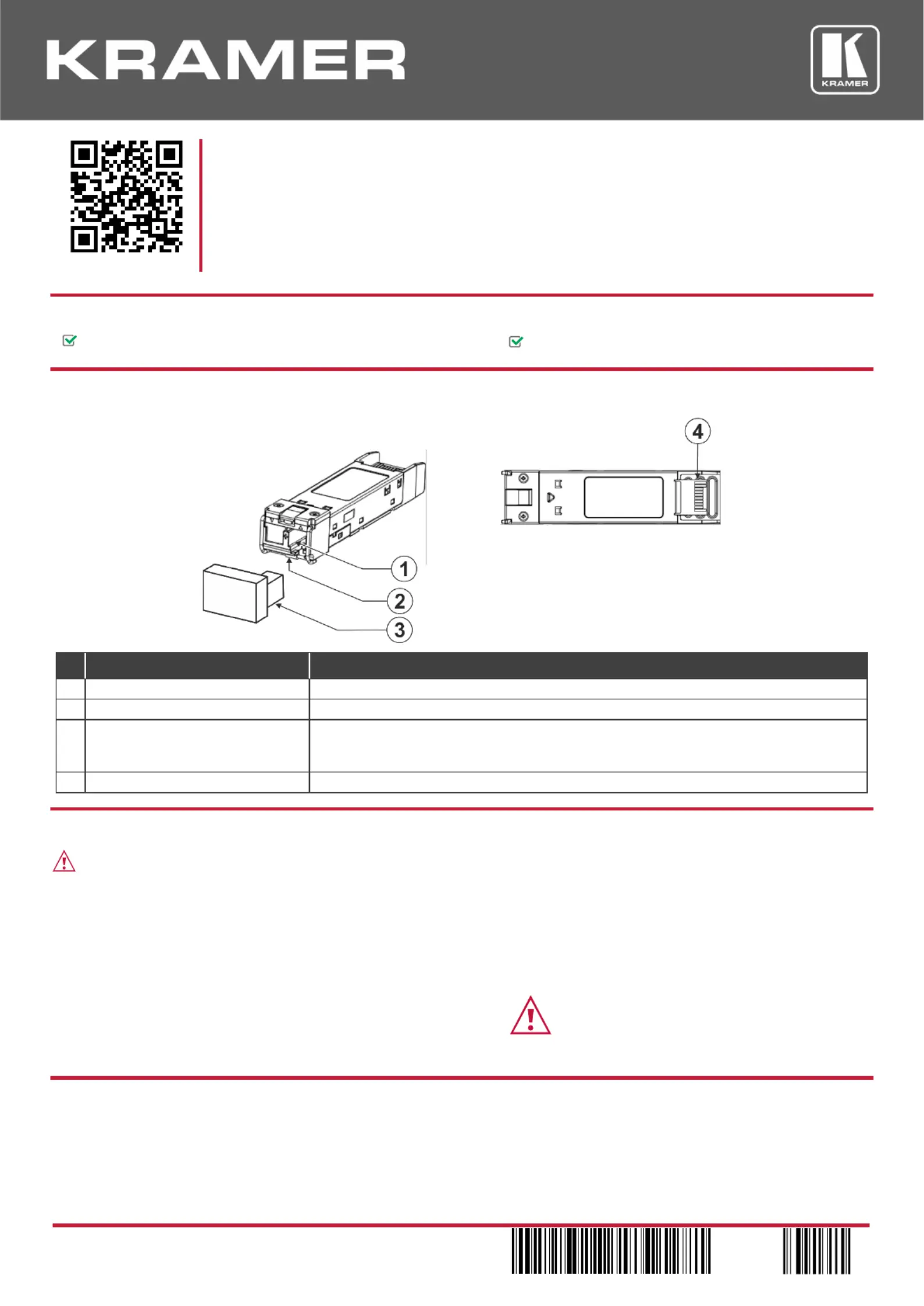

OSP-SM10S Quick Start
P/N:
2900- 301238QS
Rev:
1
Scan for full manual
OSP-SM10S Quick Start Guide
This guide helps you install and use your OSP-SM10S for the first time.
Go to www.kramerav.com/downloads/OSP-SM10S to download the latest user manual and check if
rmware upgrades are available.
Step 1: Check in the b what’s ox
2 OSP-SM10S 10G SFP+ Simplex Transceivers (A and B)
1 Quick start guide
Step 2: Get to know your -SM10S OSP
#
Feature
Function
1
LC Connectors
For connecting ber optic cable. Covered with protective cap when not in use.
2
Bail (Handle)
Pull down the handle for easy removal of the transceiver from the optical device.
3
Protective Cap
Protects the LC connector from dust.
Note: When transporting or storing an unconnected device, keep the cap on to protect
against dust.
4
SFP+ Module Interface
Connects to the optical module SFP+ port.
Step 3: Safety Instructions
Warning: Class 1 Laser Product:
• Invisible laser radiation present.
• Avoid long-term viewing of laser.
• Avoid the use of magnifying viewing aids or instruments (such as binoculars, telescopes,
microscopes and magnifying lenses, but not spectacles or contact lenses).
• Avoid placing optical devices in the emitted beam that could cause the concentration of the
laser radiation to be increased.
• Ensure that the environment (e.g., maximum ambient temperature &
air ow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
Step 4: Operation and Installation Warnings
• designed to be used with LC(PC) and LC(UPC) cable connectors. Using an LC(APC) connector
OSP-SM10S is
causes poor performance and can damage the optical module connector.
• Always inspect and clean the connectors before you make a connection.
• Always use the connector housing to plug or unplug a ber cable.
