Lenovo ThinkSystem SR590 Server
Product Guide
Lenovo ThinkSystem SR590 is a 2-socket 2U rack server for small businesses up to large enterprises that
need industry-leading reliability, management, and security, as well as balancing performance and
expandability. The SR590 server is designed to handle a wide range of workloads, such as virtualization
and cloud computing, IT infrastructure, enterprise applications, collaboration/email, and web serving.
Featuring the Intel Xeon Processor Scalable Family, the SR590 server offers balanced performance,
storage capacity, and I/O expansion. The SR590 server supports up to two processors, up to 1 TB of 2666
MHz TruDDR4 memory, up to 16x 2.5-inch or 14x 3.5-inch drive bays with an extensive choice of
NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with the
LOM slot and up to 6x PCIe slots.
The SR590 server offers basic software RAID or advanced hardware RAID protection and a wide range of
networking options, including selectable LOM, ML2, and PCIe network adapters. The next-generation
Lenovo XClarity Controller, which is built into the SR590 server, provides advanced service processor
control, monitoring, and alerting functions.
The following figure shows the ThinkSystem SR590 models.

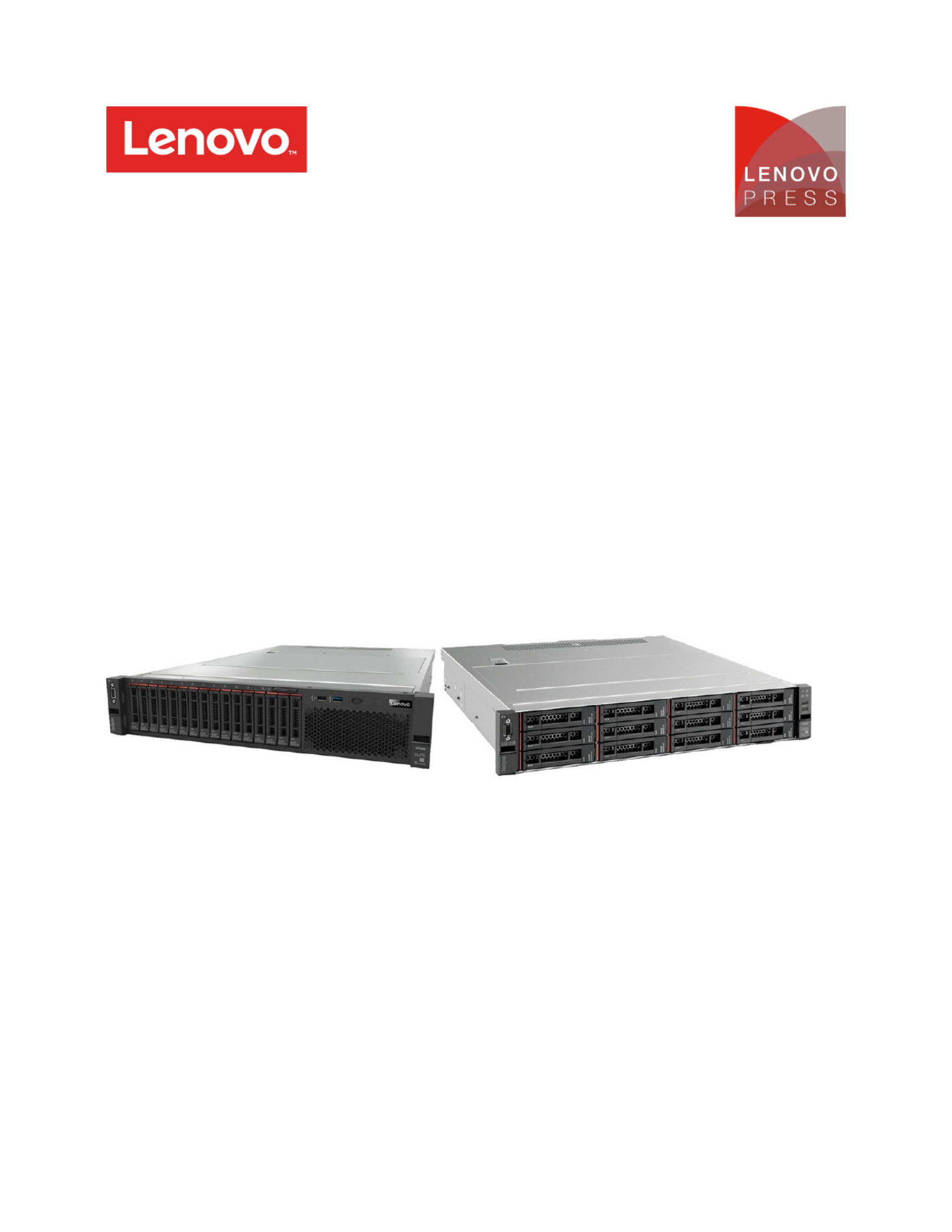

Figure 1. Lenovo ThinkSystem SR590: 16x SFF (left) or 12x LFF (right) drive bays
Did you know?
The SR590 server features a unique AnyBay design that allows a choice of drive interface types in the
same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives.
The SR590 server offers onboard NVMe PCIe ports that allow direct connections to the U.2 NVMe PCIe
SSDs, which frees up I/O slots and helps lower NVMe solution acquisition costs.
The SR590 server delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum
redundant power supplies that can deliver 96% (Titanium) or 94% (Platinum) efficiency at 50% load when
connected to a 200 - 240 V AC power source.
The SR590 server is designed to meet ASHRAE A4 standards (up to 45 °C [113 °F]) in select
configurations, which enable customers to lower energy costs, while still maintaining world-class reliability.
Lenovo ThinkSystem SR590 Server 1
Click here to check for updates
Probleemoplossing Lenovo ThinkSystem SR590
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Ingebouwd display: | Nee |
| Breedte: | 482 mm |
| Diepte: | 763.7 mm |
| Hoogte: | 86.5 mm |
| Bluetooth: | Nee |
| Frequentie van processor: | 2.3 GHz |
| Processorfamilie: | Intel® Xeon® Gold |
| Processormodel: | 5118 |
| Aantal processorkernen: | 12 |
| Ethernet LAN: | Ja |
| Geïntegreerde geheugenkaartlezer: | Nee |
| Processor lithografie: | 14 nm |
| VGA (D-Sub)poort(en): | 2 |
| Aantal Ethernet LAN (RJ-45)-poorten: | 2 |
| Netvoeding: | 750 W |
| Intern geheugen: | 64 GB |
| Intern geheugentype: | DDR4-SDRAM |
| Duurzaamheidscertificaten: | ENERGY STAR |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A: | 3 |
| Processor socket: | LGA 3647 (Socket P) |
| Stepping: | M0 |
| Systeembus: | - GT/s |
| Processor aantal threads: | 24 |
| PCI Express slots versie: | 3.0 |
| Processor operating modes: | 64-bit |
| Processor cache: | 16.5 MB |
| Bus type: | UPI |
| Thermal Design Power (TDP): | 105 W |
| Codenaam processor: | Skylake |
| Maximaal aantal PCI Express-lijnen: | 48 |
| Processor cache type: | L3 |
| ECC ondersteund door processor: | Ja |
| Processorfabrikant: | Intel |
| Maximum intern geheugen: | 1000 GB |
| Totale opslagcapaciteit: | - GB |
| Soort optische drive: | Nee |
| Ingebouwde grafische adapter: | Ja |
| On-board graphics adapter model: | Matrox G200 |
| Ondersteunde instructie sets: | AVX,AVX 2.0,AVX-512,SSE4.2 |
| Intel® Hyper Threading Technology (Intel® HT Technology): | Ja |
| Intel® Turbo Boost Technology: | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI): | Ja |
| Enhanced Intel SpeedStep Technology: | Ja |
| Execute Disable Bit: | Ja |
| Intel® VT-x with Extended Page Tables (EPT): | Ja |
| Ingebouwde opties beschikbaar: | Ja |
| Intel® 64: | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d): | Ja |
| Intel® Virtualization Technology (VT-x): | Ja |
| Verpakkingsgrootte processor: | 76.0 x 56.5 mm |
| Conflictvrije processor: | Ja |
| ARK ID processor: | 120473 |
| Intel® Trusted Execution Technology: | Ja |
| Intel® TSX-NI: | Ja |
| Versie Intel® TSX-NI: | 1.00 |
| Compatibele besturingssystemen: | Microsoft Windows Server 2016/2012 R2. Red Hat Enterprise Linux 7.3/6.9. SUSE \nLinux Enterprise Server 12 SP2/11 SP4. VMware ESXi 6.5/6.0 U3 |
| Luchtvochtigheid bij opslag: | -40 - 70 procent |
| Rack-montage: | Ja |
| Maximale turbofrequentie van processor: | 3.2 GHz |
| Processorcode: | SR3GF |
| Type behuizing: | Rack (2U) |
| Redundante voeding: | Ja |
| Maximaal intern geheugen ondersteund door processor: | 768 GB |
| Geheugentypen ondersteund door processor: | DDR4-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor: | 2666 MHz |
| ECC: | Ja |
| Kloksnelheid geheugen: | 2666 MHz |
| Geheugenlayout: | 2 x 32 GB |
| Geheugenslots: | 16 |
| Ethernet interface type: | Gigabit Ethernet |
| Aantal geïnstalleerde processoren: | 2 |
| Schaalbaarheid: | 4S |
| Hoogte, in bedrijf: | 0 - 3048 m |
| Trusted Platform Module (TPM): | Ja |
| Tcase: | 81 °C |
| Geheugenkanalen ondersteund door processor: | Hexa |
| PCI Express x16 slots: | 1 |
| RAID support: | Ja |
| HDD omvang: | - " |
| Maximum aantal HDD's per behuizing: | 16 |
| Maximale opslagcapaciteit: | - TB |
| Ondersteunde opslagstationinterfaces: | SAS,Serial ATA III |
| Ondersteunde HDD-groottes: | 2.5 " |
| Aantal ondersteunde redundante voedingen: | 2 |
| PCI Express x8 slots: | 5 |
| Soorten RAID: | JBOD |
| Wifi: | Nee |
| Aantal geïnstalleerde redundante voedingen: | 2 |
| Processorgeneratie: | 1e generatie Intel® Xeon® schaalbaar |
| Hot-swap: | Ja |
| Prestatiebeheer: | XClarity Enterprise |
| Ondersteunde RAID-controllers: | 430-16i |
