INTRODUCTION
This application note provides specific guidelines for Printed Circuit Board (PCB) layout considerations and related sol-
der stencil considerations when implementing Microchip products in Quad Flat No-lead (QFN) and Dual Quad Flat No-
lead (DQFN) packages. This application note is intended for users who are familiar with PCB design, including signal
integrity and thermal management implementation concepts.
Successful implementation of QFN-style packages, including QFNs and DQFNs, requires special consideration for PCB
Footprint design, PCB layout, and solder paste stencil design. This application note describes these important consid-
erations.
The following guidelines are based on Microchip’s experience and knowledge, and may be accepted or rejected. Micro-
chip does not guarantee any design. The user is ultimately responsible for determining the suitability of their own design.
Microchip suggests that the user’s PCB fabricator and PCBA assembler confirm all implementations.
These guidelines for using QFN-style devices supersede prior guidance from Microchip. See AN2086 - Package
Application Note for Dual Row Quad Flat No-Leads (DQFN) for additional reference.
QFN-STYLE DEVICES
QFN-style packages (see Figure 1) are physically robust and thermally efficient, and they occupy much less PCB space
than equivalent QFP-style packages. They typically also have superior lead inductance characteristics. They do present
particular design constraints to improve production yield.
QFN-style packages generally have a single row (QFN) or two rows (DQFN) of perimeter pads around one or more
larger center pads (“flag” or “EPAD”), all encapsulated in a plastic body. These packages are surface-mounted to the
target system PCB by a solder reflow process.

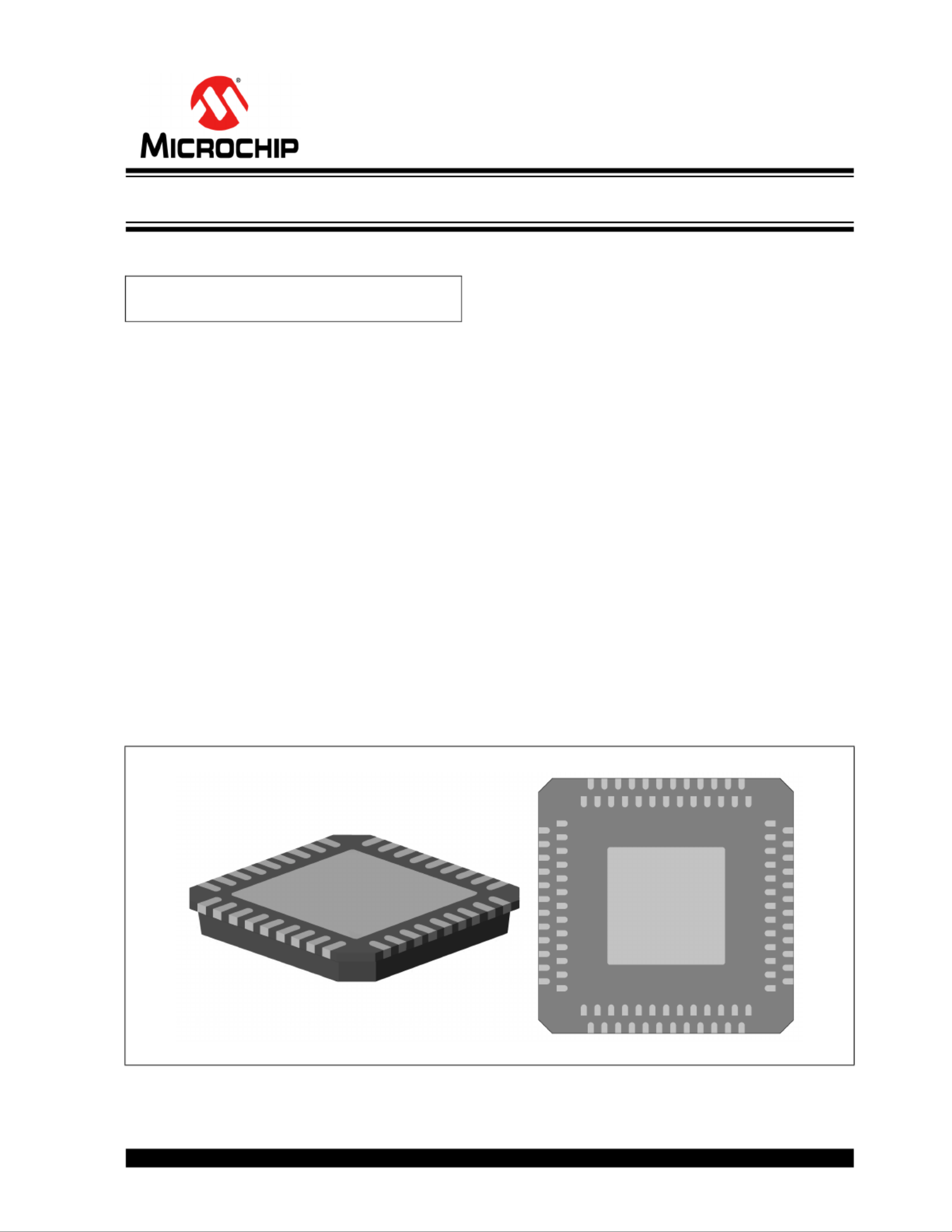

FIGURE 1: QFN AND DQFN PACKAGES
AN18.15
PCB Design Guidelines for QFN and DQFN Packages
Author: Carl Johnson
Microchip Technology Inc.
