2018 Microchip Technology Inc. DS20005896A-page 1
HV7355
Features
• High-Density Integrated Ultrasound Transmitter
• 0V to +150V Output Voltage
• ±1.5A Minimum Source and Sink Current
• ±300 mA Current in CW Mode
• Up to 18 MHz Operating Frequency
• Matched Delay Times
• Built-in Gate Driver Floating Voltage Regulator
• 2.5V to 3.3V CMOS Logic Interface
Applications
• Portable Medical Ultrasound Imaging
• Piezoelectric Transducer Drivers
• Non-Destructive Testing
• Pulse Waveform Generator
General Description
The HV7355 is an 8-channel unipolar high-voltage
high-speed pulse generator. It is designed for medical
ultrasound applications. This high-voltage and
high-speed integrated circuit can also be used for other
piezoelectric, capacitive or MEMS sensors in ultrasonic
non-destructive detection and sonar ranger
applications.
The HV7355 consists of a controller logic interface
circuit, level translators, MOSFET gate drivers and
high-current P-channel and N-channel MOSFETs as
the output stage for each channel.
The output stages of each channel are designed to
provide peak output currents of ±1.5A for pulsing, when
MC = 1, with up to 150V swings. When MC = 0, all the
output stages drop the peak current to ±500 mA for
low-voltage CW mode operation to save power. This
direct coupling topology of the gate driver not only
saves one high-voltage capacitor per channel but also
makes the PCB layout easier.

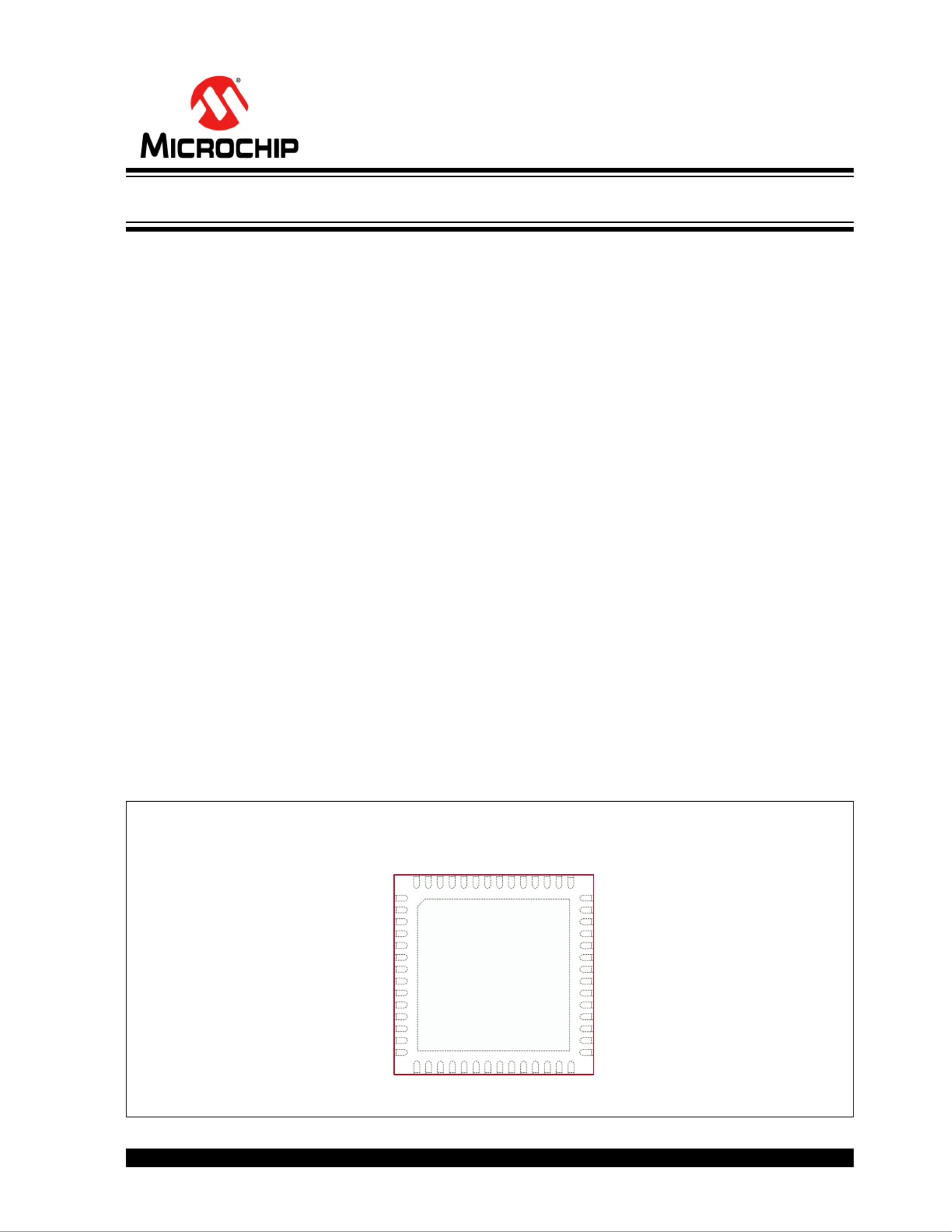

Package Type
56-lead (8 X 8) VQFN
(Top view)
See Table 2-1 for pin information.
1
56
8-Channel High-Speed Unipolar 1.5A 150V Ultrasound Pulser
