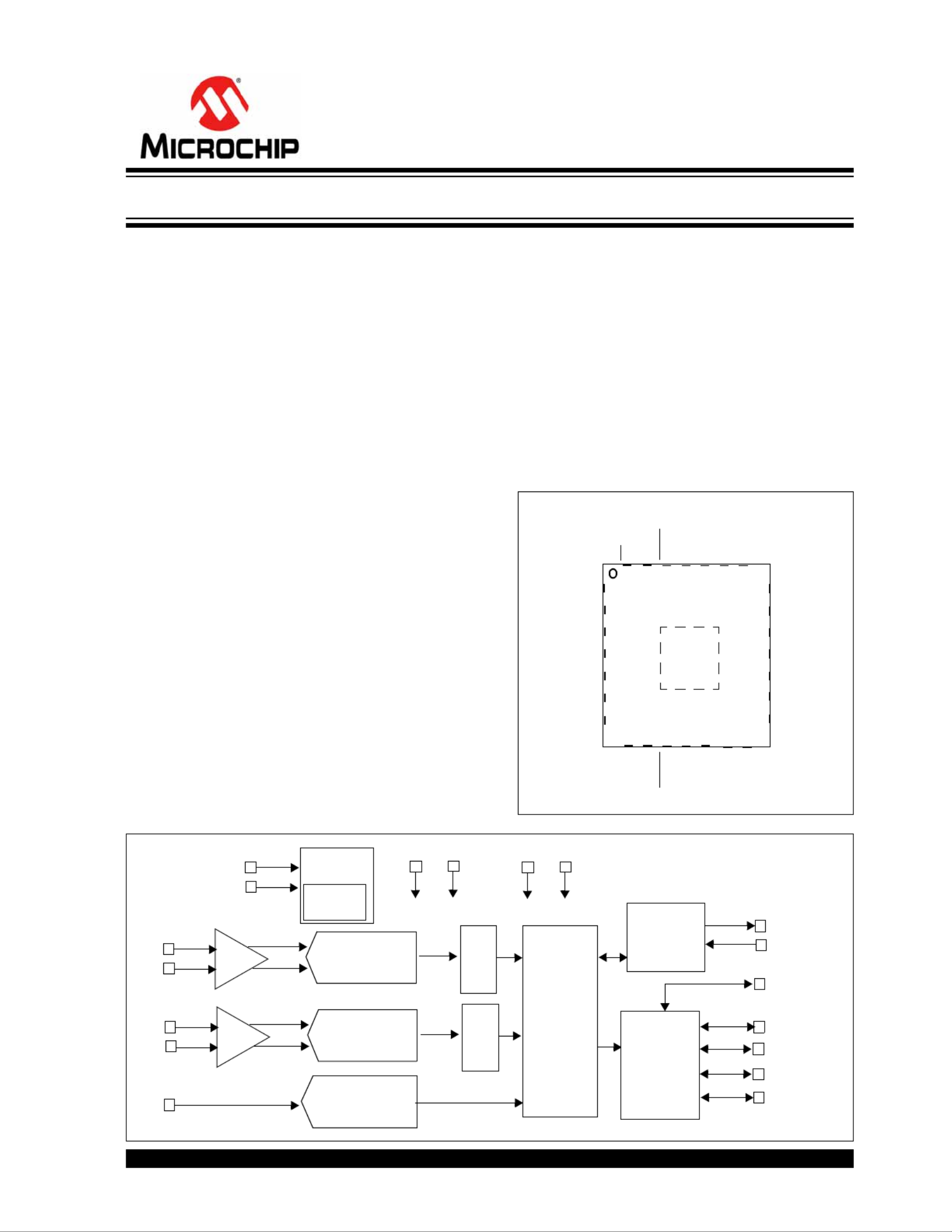

2013 Microchip Technology Inc. DS20005256A-page 1
MCP39F501
Features:
• Power Monitoring Accuracy capable of 0.1% error
across 4000:1 dynamic range
• Fast Calibration Routines
• Programmable Event Notifications such as over-
current and voltage sag, surge protection
• 512 bytes User-accessible EEPROM through
page read/write commands
• Non-volatile On-chip Memory, no external
memory required
• Built-in calculations on fast 16-bit processing core
- Active, Reactive and Apparent Power
- True RMS Current, RMS Voltage
- Line Frequency, Power Factor
• Two-Wire Serial Protocol using a 2-wire Universal
Asynchronous Receiver/Transmitter (UART) inter-
face supporting multiple devices on a single bus
• Low-Drift Internal Voltage Reference, 10 ppm/°C
typical
• 28-lead 5x5 QFN package
• Extended Temperature Range -40°C to +125°C
Applications:
• Real-time Measurement of Input Power for
AC/DC supplies
• Intelligent Power Distribution Units
Description:
The MCP39F501 is a highly integrated, single-phase
power-monitoring IC designed for real-time
measurement of input power for AC/DC power
supplies, power distribution units and industrial
applications. It includes dual-channel delta sigma
ADCs, a 16-bit calculation engine, EEPROM and a
flexible 2-wire interface. An integrated low-drift voltage
reference with 10 ppm/°C in addition to 94.5 dB of
SINAD performance on each measurement channel
allows for better than 0.1% accurate designs across a
4000:1 dynamic range.
Package Type
Functional Block Diagram
1
25
2
3
4
5
8 9 10 11 12
21
20
19
18
17
28 27 26 24
MODE/DIR
NC
UART_RX
COMMONA
NC
NC
NC
AVDD
UART_TX
RESET
DVDD
DGND
MCLR
EP
29
6
7
OSCI
OSCO
13 14
COMMONB
A0/DIO0
16
15
23 22
REFIN+/OUT
DIO3
I1+
I1-
V1-
V1+
AN_IN/DIO2
AGND
DGND
A1/DIO1
DR
MCP39F501
5x5 QFN*
* Includes Exposed
Thermal Pad (EP); see Table 3-1.
24-bit Delta Sigma
Multi-level
+
-
SINC3
Digital Filter
Modulator ADC
PGA
I1+
I1-
24-bit Delta Sigma
Multi-level
+
-
SINC
3
Digital Filter
Modulator ADC
PGA
V1+
V1-
16-BIT
CORE
Calculation
Engine
(CE)
Configurable
Digital Outputs
UART
Serial
Interface
UART_TX
UART_RX
A0/DIO0
FLASH
10-bit SAR
ADC
AN_IN/DIO2
OSCI
OSCO
Timing
Generation
Internal
Oscillator
Generation
AVDD AGND DVDD DGND
A1/DIO1
MODE/DIR
DIO3
AN_IN/DIO2
Single-Phase, Power-Monitoring IC with Calculation and Event Detection
