PD69210/PD69220
PoE PSE Controller
Introduction
The Microchip Generation 6 family of PSE controllers include the PD69210 and PD69220 devices. The PD69210 and
PD69220 controllers have an identical feature set and differ only in physical pinout. They are based on the Microchip
SAM D21 family. The PD69210 or PD69220 controllers are recommended for all new designs.
The PD69210 or PD69220 controllers when paired with the Microchip PD69208T4, PD69204T4, or PD69208M
managers are part of a Power over Ethernet Power Supplying Equipment (PSE) system. This system enables
designers to integrate enhanced mode PoE capabilities, as specified in IEEE
®
802.3af, IEEE 802.3at, IEEE 802.3bt,
and PoH standards, into an Ethernet switch. They support up to 48 4-pair or 2-pair logical ports.
Both controllers are available in a 32-pin, 5 mm × 5 mm QFN package.
Typical PoE Application

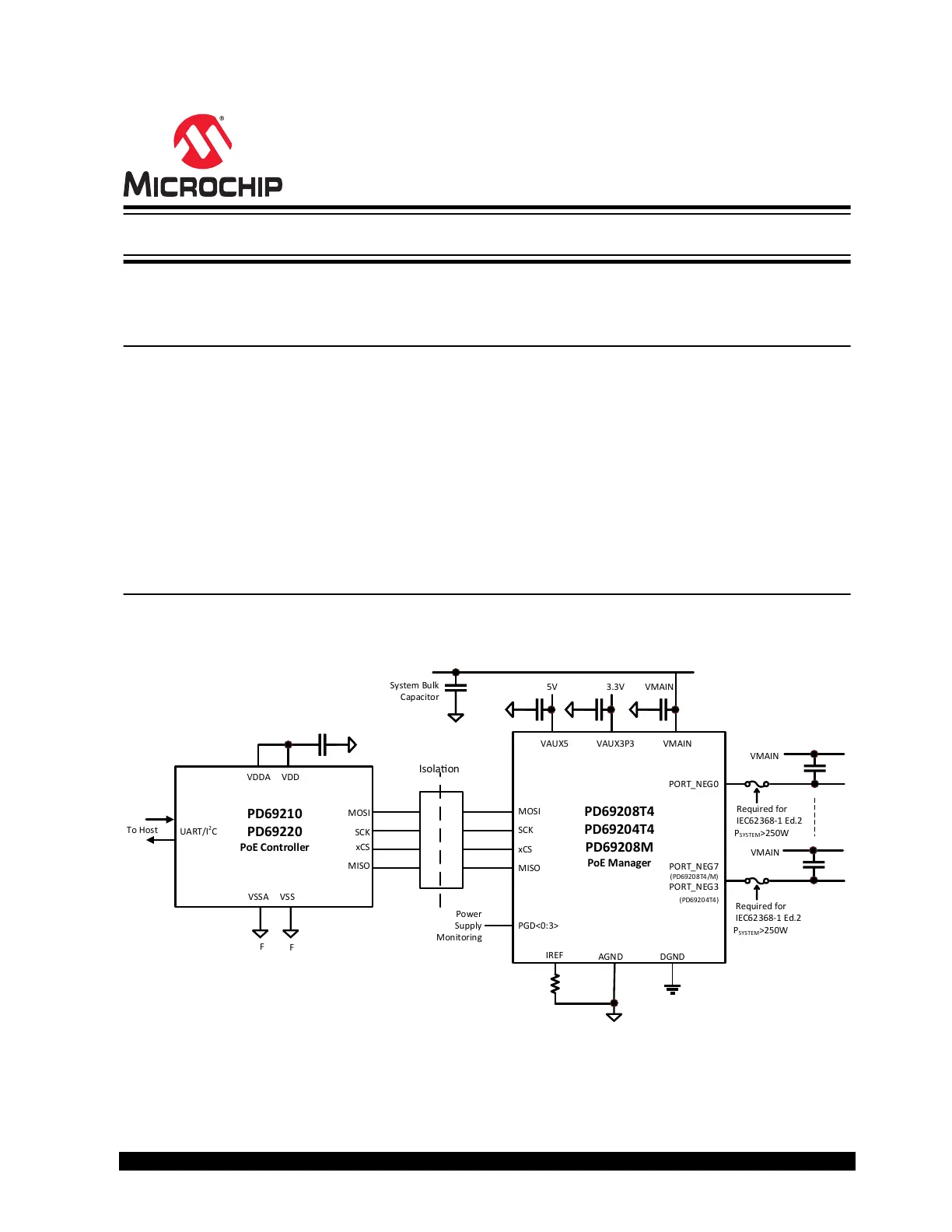

The following figure shows the typical PoE application of Microchip Generation 6 devices.
Figure 1. Typical PoE Application
UART/I
2
C
VSSA VSS
VDDA VDD
MOSI
To Host
PD69210
PD69220
PoE Controller
SCK
xCS
MISO
Isola�on
MOSI
SCK
xCS
MISO
IREF
DGNDAGND
PGD<0:3>
Power
Supply
Monitoring
VAUX5 VAUX3P3 VMAIN
5V 3.3V VMAIN
PD69208T4
PD69204T4
PD69208M
PoE Manager
VMAIN
VMAIN
PORT_NEG0
PORT_NEG7
(PD69208T4 /M)
PORT_NEG3
(PD69204T4 )
Required for
IEC62368-1 Ed.2
P
SYSTEM
>250W
System Bulk
Capacitor
Required for
IEC62368-1 Ed.2
P
SYSTEM
>250W
F
F
For more information, consult Microchip AN3361 Designing an IEEE 802.3af/802.3at/802.3bt-Compliant PD69208
48-Port PoE System.
© 2022 Microchip Technology Inc.
and its subsidiaries
Data Sheet
DS00003424D-page 1
