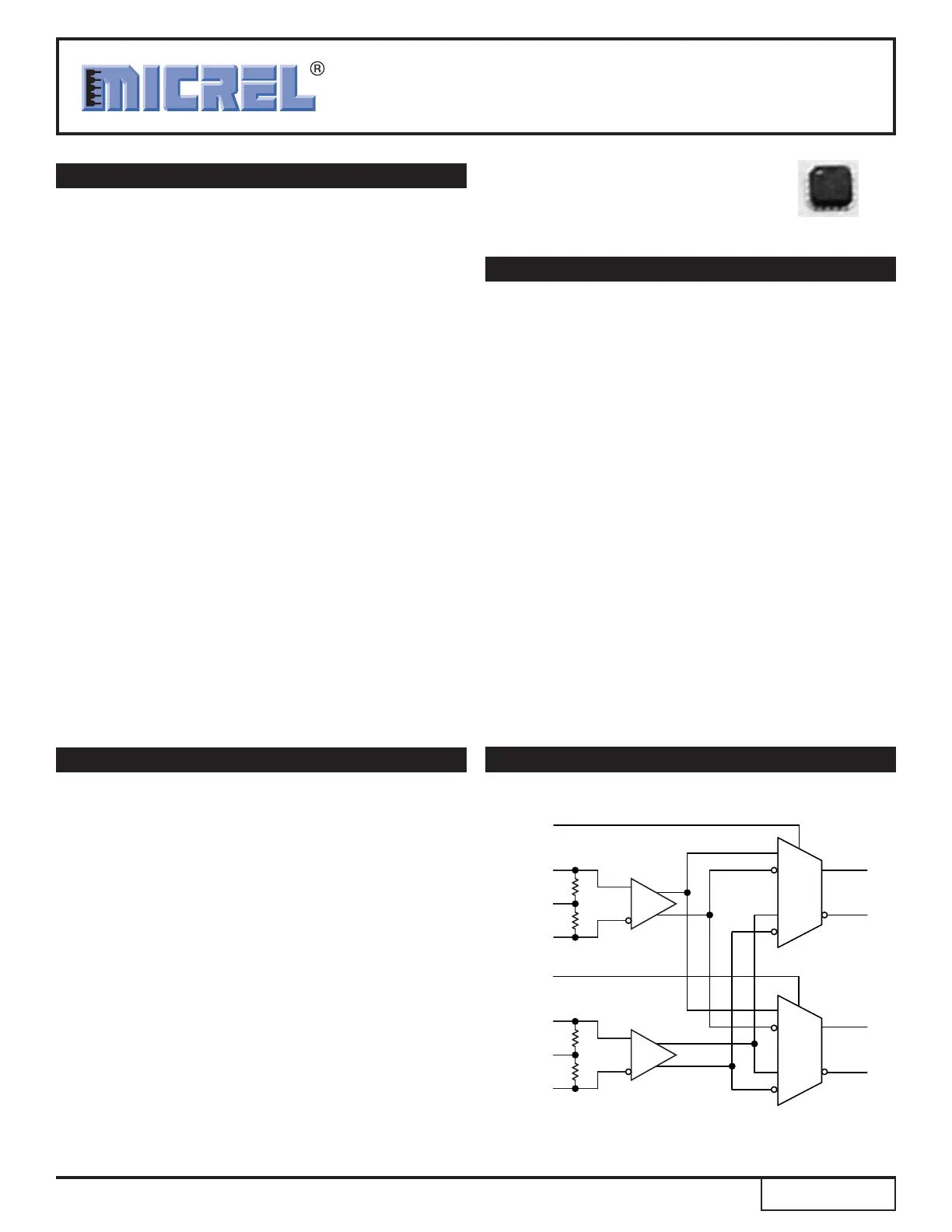

Pagina 1/10
1
Precision Edge
®
SY58023U
Micrel, Inc.
M9999-082807
hbwhelp@micrel.com or (408) 955-1690
DESCRIPTION
■ Guaranteed AC performance over temperature and
voltage:
• >10.7Gbps data throughput
• <60ps t
r
/t
f
times
• <285ps t
pd
(IN-to-Q)
• <20ps skew
■ Low jitter:
• <10ps
pp
total jitter (clock)
• <1ps
rms
random jitter (data)
• <10ps
pp
deterministic jitter (data)
■ Crosstalk induced jitter: <0.7ps
rms
■ Accepts an input signal as low as 100mV
■ Unique input termination and V
T
pin accepts DC-
coupled and AC-coupled differential inputs:
LVPECL, LVDS, and CML
■ 50Ω source terminated CML outputs
■ Fully differential inputs/outputs
■ Power supply 2.5V ±5% and 3.3V ±10%
■ Industrial –40°C to +85°C temperature range
■ Available in 16-pin (3mm
××
××
× 3mm) MLF
®
package
FEATURES
ULTRA-LOW JITTER 2
××
××
× 2 CROSSPOINT
SWITCH w/CML OUTPUTS AND
INTERNAL I/O TERMINATION
Precision Edge
®
SY58023U
Rev.: G Amendment: /0
Issue Date: August 2007
The SY58023U is a 2.5V/3.3V precision, high-speed, fully
differential CML 2 × 2 crosspoint switch. The SY58023U is
optimized to provide two identical output copies with less
than 20ps of skew and ultra-low jitter. It can route clock
signals as fast as 6GHz or data up to 10.7Gbps.
The differential input includes Micrel’s unique, 3-pin input
termination architecture that allows the SY58023U to directly
interface to LVPECL, LVDS, and CML differential signals
(AC- or DC-coupled) as small as 100mV (200mV
pp
) without
any level-shifting or termination resistor networks in the signal
path. The CML outputs features 400mV typical swing into
50Ω loads, and provide an extremely fast rise/fall time
guaranteed to be less than 60ps.
The SY58023U operates from a +2.5V ±5% supply or
+3.3V ±10% supply and is guaranteed over the full industrial
temperature range (–40°C to +85°C). For applications that
require high speed dual CML switches, consider the
SY58024U. The SY58023U is part of Micrel’s high-speed,
Precision Edge
®
product line.
Datasheets and support documentation can be found on
Micrel’s website at www.micrel.com.
Precision Edge is a registered trademark of Micrel , Inc.
Micro
LeadFrame and MLF are registered trademarks of Amkor Technology, Inc.
Precision Edge
®
IN0
/IN0
Q1
/Q1
Q0
/Q0
V
T0
50Ω
50Ω
IN1
/IN1
V
T1
50Ω
50Ω
SEL0
(TTL/CMOS)
SEL1
(TTL/CMOS)
0
1
0
1
FUNCTIONAL BLOCK DIAGRAM
APPLICATIONS
■ Gigabit Ethernet data/clock routing
■ SONET data/clocking routing
■ Switch fabric clock routing
■ Redundant switchover
■ Backplane redundancy
