SY58604U
3.2Gbps Precision, LVPECL Buffer with
Internal Termination and Fail Safe Input
Micrel Inc. • 218
0 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • ht
tp://www.micrel.com
General Description
The SY586
04U is a 2.5/3.3V, high-speed, fully
differential LVPECL buffer optimized to provide only
108fs
RMS
phase jitter. The SY58604U can process clock
signals as fast as 2.5GHz or data patterns up to
3.2Gbps.
The differential input includes Micrel’s unique, 3-pin
input termination architecture that interfaces to LVPECL,
LVDS or CML differential signals, (AC- or DC-coupled)
as small as 100mV (200mV
pp
) without any level-shifting
or termination resistor networks in the signal path. For
AC-coupled input interface applications, an integrated
voltage reference (V
REF-AC
) is provided to bias the V
T
pin.
The output is 800mV LVPECL, with extremely fast
rise/fall times guaranteed to be less than 110ps.
The SY58604U operates from a 2.5V ±5% supply or
3.3V ±10% supply and is guaranteed over the full
industrial temperature range (–40°C to +85°C). For
applications that require CML or LVDS outputs, consider
the SY58603U and the SY58605U, buffers with 400mV
and 325mV output swings respectively. The SY58604U
is part of Micrel’s high-speed, Precision Edge
®
product
line.
Datasheets and support documentation can be found on
Micrel’s web site at: www.micrel.com
.

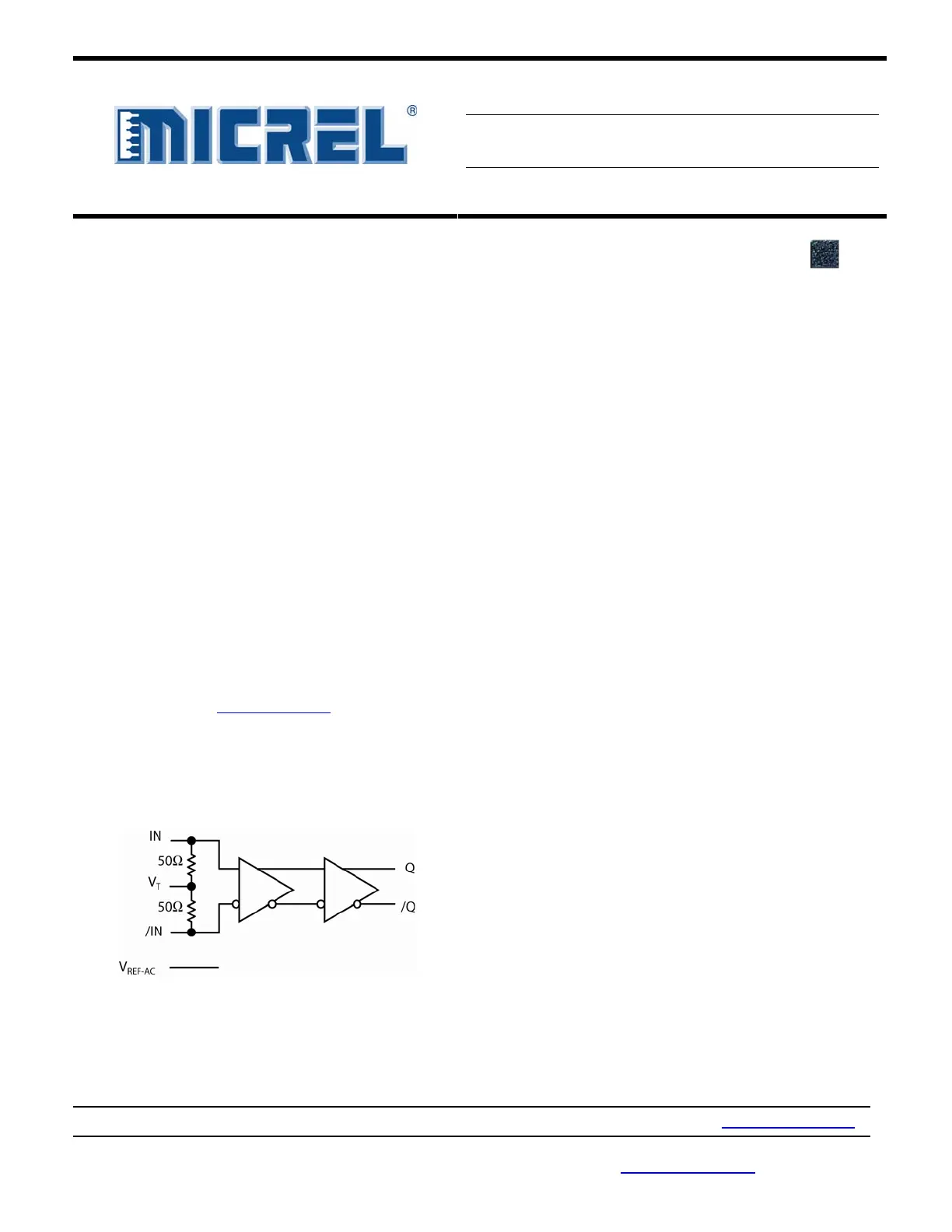

Functional Block Diagram
Precision Edge
®
Features
• Prec
ision 800mV LVPECL buffer
• Ultra-low jitter design
– 108fs
RMS
phase jitter
• Guaranteed AC performance over temperature and
voltage:
– DC-to > 3.2Gbps throughput
– <350ps typical propagation delay (IN-to-Q)
– <110ps rise/fall times
• Fail Safe Input
– Prevents output from oscillating when input is
invalid
• High-speed LVPECL output
• 2.5V ±5% or 3.3V ±10% power supply operation
• Industrial temperature range: –40°C to +85°C
• Available in 8-pin (2mm x 2mm) DFN package
Applications
• All SONET clock and data distribution
• Fibre Channel clock and data distribution
• Gigabit Ethernet clock and data distribution
• Backplane distribution
Markets
• Storage
• ATE
• Test and measurement
• Enterprise networking equipment
• High-end servers
• Access
• Metro area network equipment
September 2011
M9999-092911-D
hbwhelp@micrel.com
or (408) 955-1690
Precision Edge is a registered trademark of Micrel, Inc.
