Precision Edge
®
SY89876L
Micrel, Inc.
M9999-082407
hbwhelp@micrel.com or (408) 955-1690
DESCRIPTION
Integrated programmable clock divider and 1:2
fanout buffer
Guaranteed AC performance over temperature and
voltage:
• >2.0GHz f
MAX
• <190ps t
r
/t
f
• <15ps within device skew
Low jitter design:
• <10ps
PP
total jitter
• <1ps
RMS
cycle-to-cycle jitter
Unique input termination and VT Pin for DC- and AC-
coupled inputs; CML, PECL, LVDS and HSTL
LVDS-compatible outputs
TTL/CMOS inputs for select and reset
Parallel programming capability
Programmable divider ratios of 1, 2, 4, 8 and 16
Low voltage operation 3.3V
Output disable function
–40°C to 85°C industrial temperature range
Available in 16-pin (3mm x 3mm) MLF
®
package
FEATURES
3.3V, 2.0GHz ANY DIFFERENTIAL IN-TO-LVDS
PROGRAMMABLE CLOCK DIVIDER AND
1:2 FANOUT BUFFER W/ INTERNAL TERMINATION
Precision Edge
®
SY89876L
APPLICATIONS
SONET/SDH line cards
Transponders
High-end, multiprocessor servers

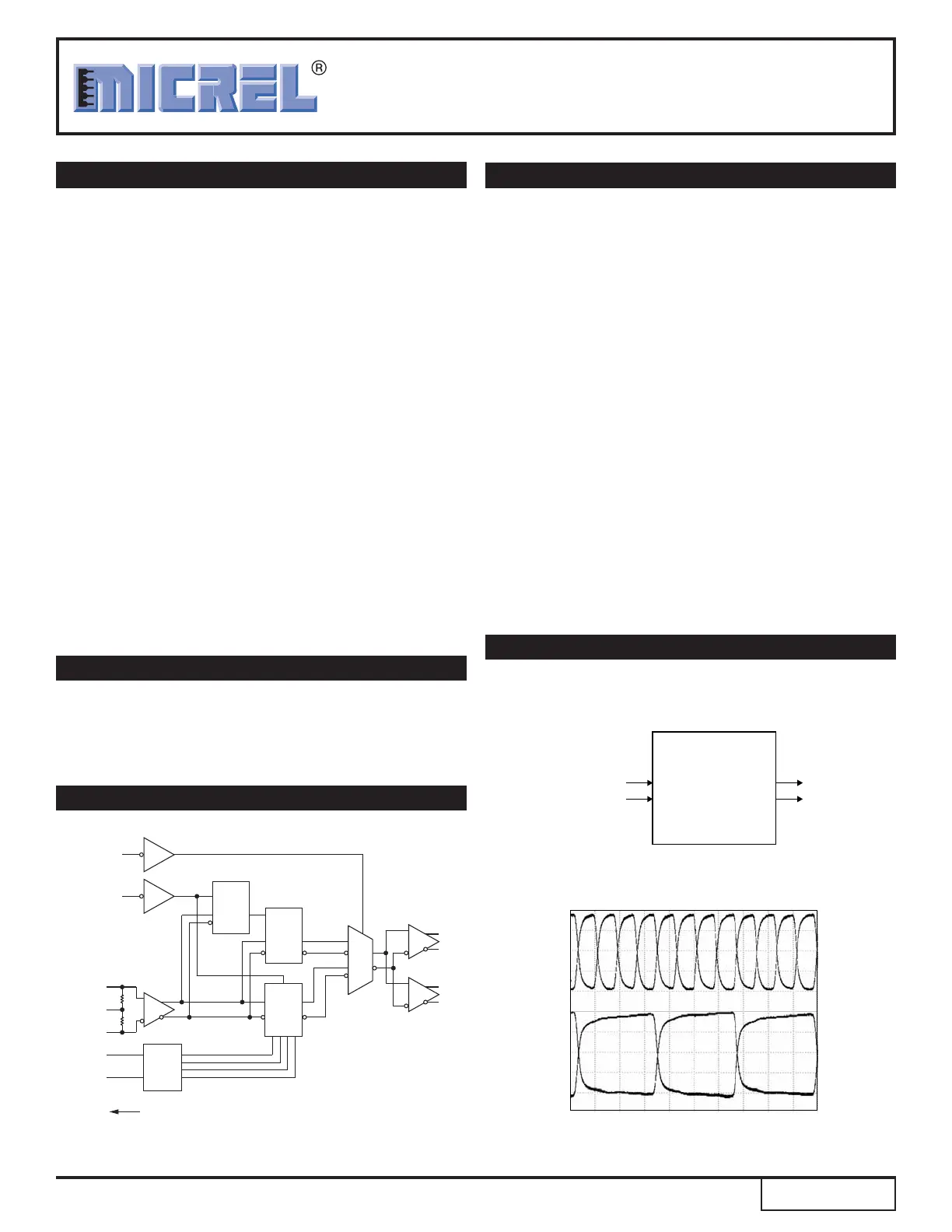

1
Rev.: E Amendment: /0
Issue Date: August 2007
This low-skew, low-jitter device is capable of accepting a
high-speed (e.g., 622MHz or higher) CML, LVPECL, LVDS
or HSTL clock input signal and dividing down the frequency
using a programmable divider ratio to create a lower speed
version of the input clock. Available divider ratios are 2, 4, 8
and 16, or straight pass-through.
The differential input buffer has a unique internal
termination design that allows access to the termination
network through a VT pin. This feature allows the device to
easily interface to different logic standards. A V
REF-AC
reference is included for AC-coupled applications.
The /RESET input asynchronously resets the divider. In
the pass-through function (divide by 1) the /RESET
synchronously enables or disables the outputs on the next
falling edge of IN (rising edge of /IN).
FUNCTIONAL BLOCK DIAGRAM
TYPICAL PERFORMANCE
IN
/IN
S1
(TTL/CMOS)
S0
(TTL/CMOS)
Q1
/Q1
Q0
/Q0
50Ω
50Ω
/RESET
(TTL/CMOS)
V
T
V
REF_AC
S2
(TTL/CMOS)
Divided
by
2, 4, 8
or 16
Enable
MUX
MUX
Enable
FF
Decoder
Divide-by-4
CML/LVPECL/LVDS
622MHz
Clock In
OC-12 to OC-3
Translator/Divider
LVDS
155.5MHz
Clock Out
622MHz In
/
Q0
Q0
/IN
IN
155.5MHz Out
Precision Edge is a registered trademark of Micrel, Inc.
MicroLeadFrame and MLF are registered trademarks of Amkor Technology, Inc.
