INSTALLATION INSTRUCTIONS
© Panduit Corp. 2020
E-mail:
techsupport@panduit.com
Phone:
866-405-6654
For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
Page 1 of 1
www.panduit.com
V00029SW
PR2HF2(WH)
PR2HF3(WH)

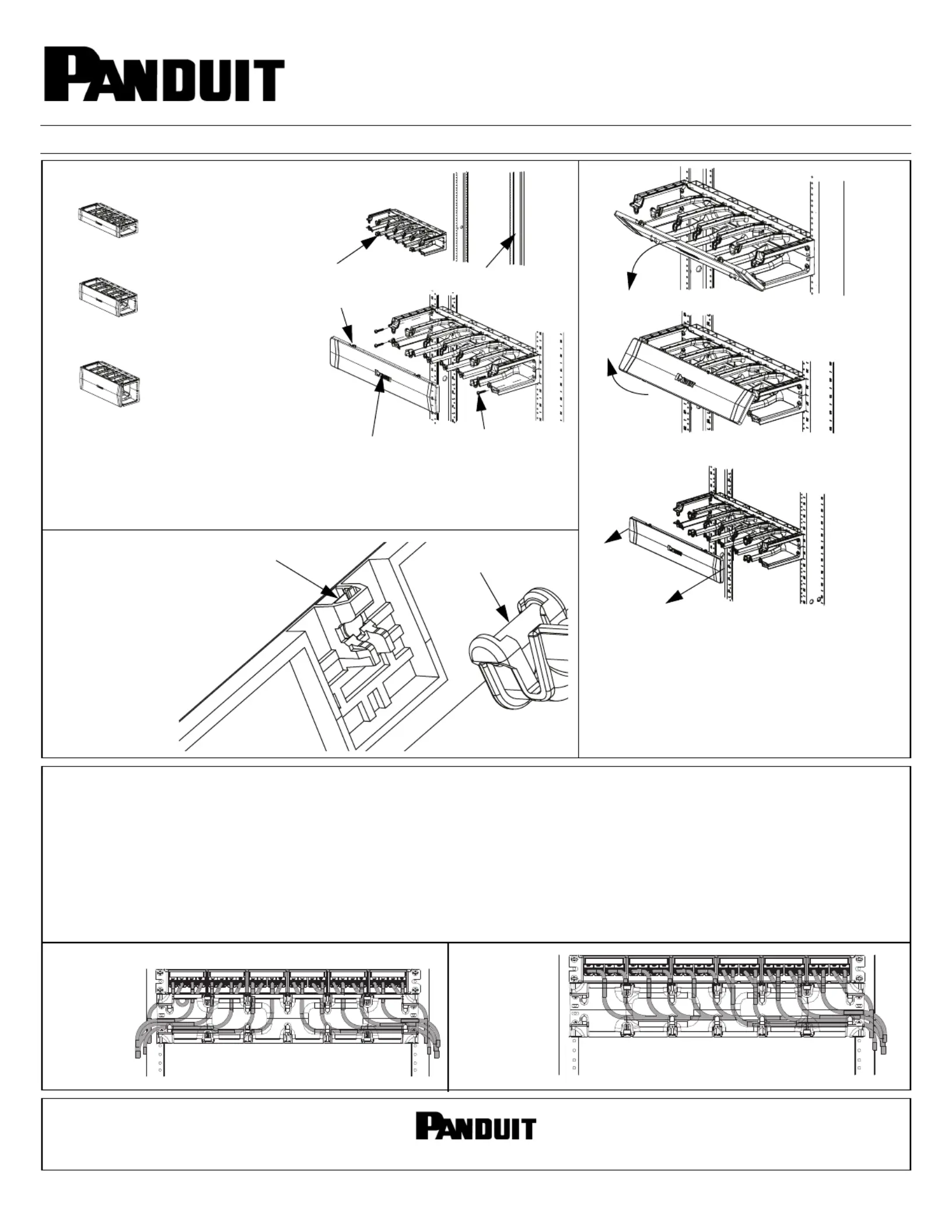

Install the managers to the rack with #12-24x1” screws provided. Install the cover to
the manager by positioning the magnetic latches near the hinge pins of the manager.
Note: The recommended assembly torque shall be 9.0+/-1 in-lb. for #12-24 screws.
To open the cover downwards, pull out
and down on the middle of the cover
top. To open cover upwards, pull out
and up on the middle of the cover bot-
tom. To remove the cover completely,
pull straight out on both ends of the
cover simultaneously.
Screws
Cover
19” Rack
PR2HF2 (Shown)
The cable manager is recommended for use with Panduit 24 or 48 port high density patch panels and/or switches mountedP 2ATCHRUNNER
above and below the manager.
When routing the cables from a patch panel or switch, either of the following two methods are recommended to help maintain the cable
bend radius.
METHOD 1:For each row of 24 ports, place cables in groups of four between the fingers. Route half the cables through each end of the
manager.
METHOD 2: For each row of 24 ports, place cables in groups of four between the fingers. Route all the cables through one end of the
manager.
Method 1
Method 2
Part Numbers: PR2HF2, PR2HF2WH, PR2HF3, PR2HF3WH, PR2HF4, PR2HF4WH
P 2ATCHRUNNER Horizontal Cable Managers
PR2HF4(WH)
Close up of
Magnetic Latch
and Hinge Pin
(4) Places
Hinge Pin
Magnetic
Latch
Magnetic Latch
(4) Places
See Image
Below
