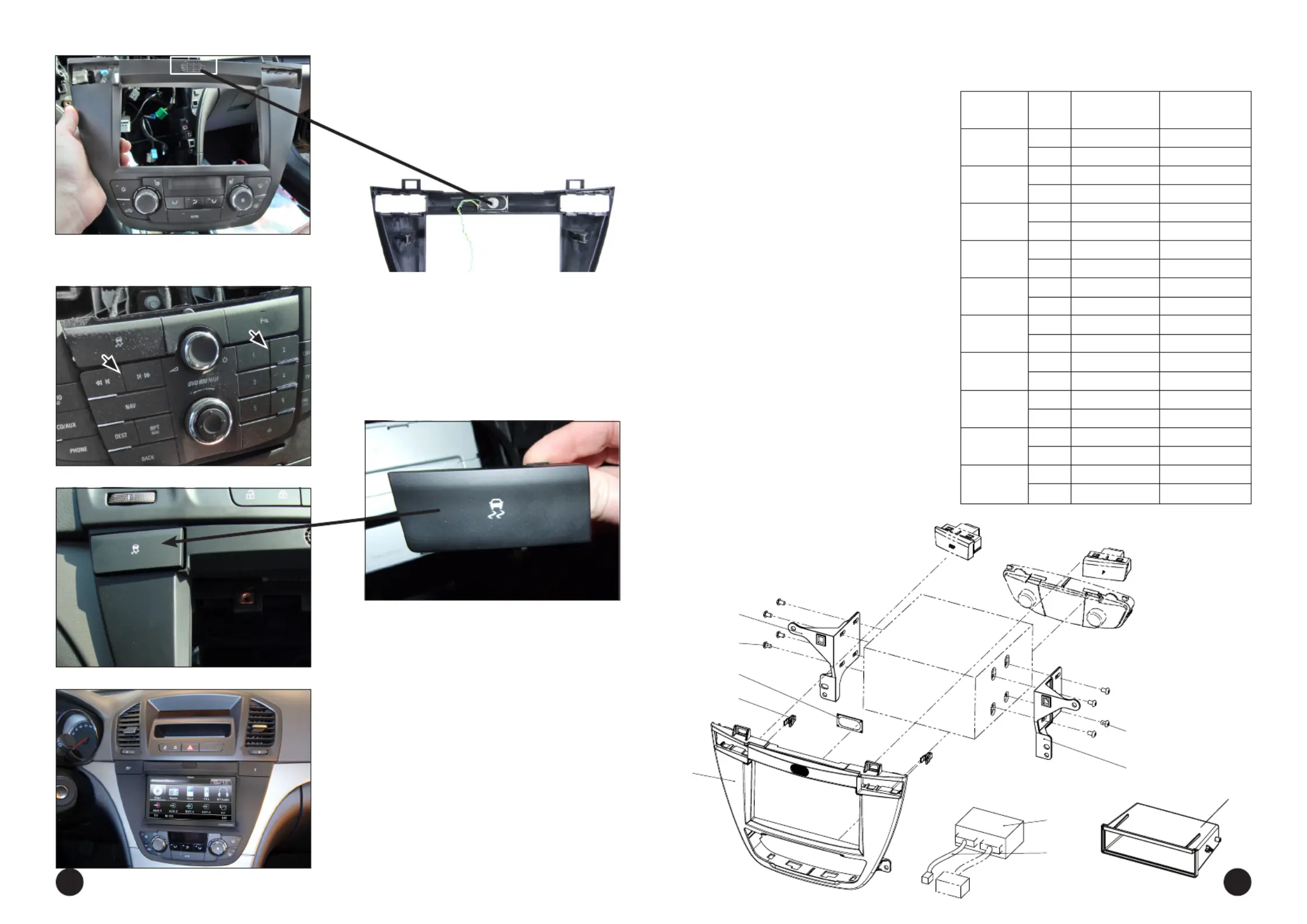

Installation Manual Double DIN Kit
• Opel Insignia 2009 ->
• Vauxhall Insignia 2009->
lead cable
pocket
(1-DIN)
black
part-no.:
brown
part-no.:
Becker
yes 281230-22-1-0 281230-22-2-0
no 381230-22-1-0 381230-22-2-0
Alpine
yes 281230-22-1-1 281230-22-2-1
no 381230-22-1-1 381230-22-2-1
Panasonic
yes 281230-22-1-2 281230-22-2-2
no 381230-22-1-2 381230-22-2-2
Pioneer
yes 281230-22-1-3 281230-22-2-3
no 381230-22-1-3 381230-22-2-3
Zenec
yes 281230-22-1-4 281230-22-2-4
no 381230-22-1-4 381230-22-2-4
Blaupunkt
yes 281230-22-1-5 281230-22-2-5
no 381230-22-1-5 381230-22-2-5
Sony
yes 281230-22-1-6 281230-22-2-6
no 381230-22-1-6 381230-22-2-6
Kenwood
yes 281230-22-1-7 281230-22-2-7
no 381230-22-1-7 381230-22-2-7
Clarion
yes 281230-22-1-8 281230-22-2-8
no 381230-22-1-8 381230-22-2-8
JVC
yes 281230-22-1-9 281230-22-2-9
no 381230-22-1-9 381230-22-2-9
Double DIN Kit contents
(1) Facia Plate
(2) Mounting Bracket Left
(3) Mounting Bracket Right
(4) Fixing screws
(5) Fixing clips
(6) Speaker
(7) Stalk Interface
(8) Lead Cable
(9) Pocket (1-DIN install)*
*ONLY for part-no. with 28xxxx
Additional accessories:
Antenna Adapter / ISO - DIN Adapter
9*
1
2
4
5
6
7
8
3
4
© 10/2010 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints
12. Remove switch for ESP (left) and
switch for Park Distance Control
(right). Put them to the openings
at the top of double DIN facia
plate.
13. Fix mounting brackets to double
DIN navigation.
Connect all required circuit points
and mount double DIN head unit
to dash board. Place facia plate.
Re-install everything in reverse
order to nish installation
11. Mount air condition control unit
to double DIN facia place
Mount small speaker to double
DIN facia plate
