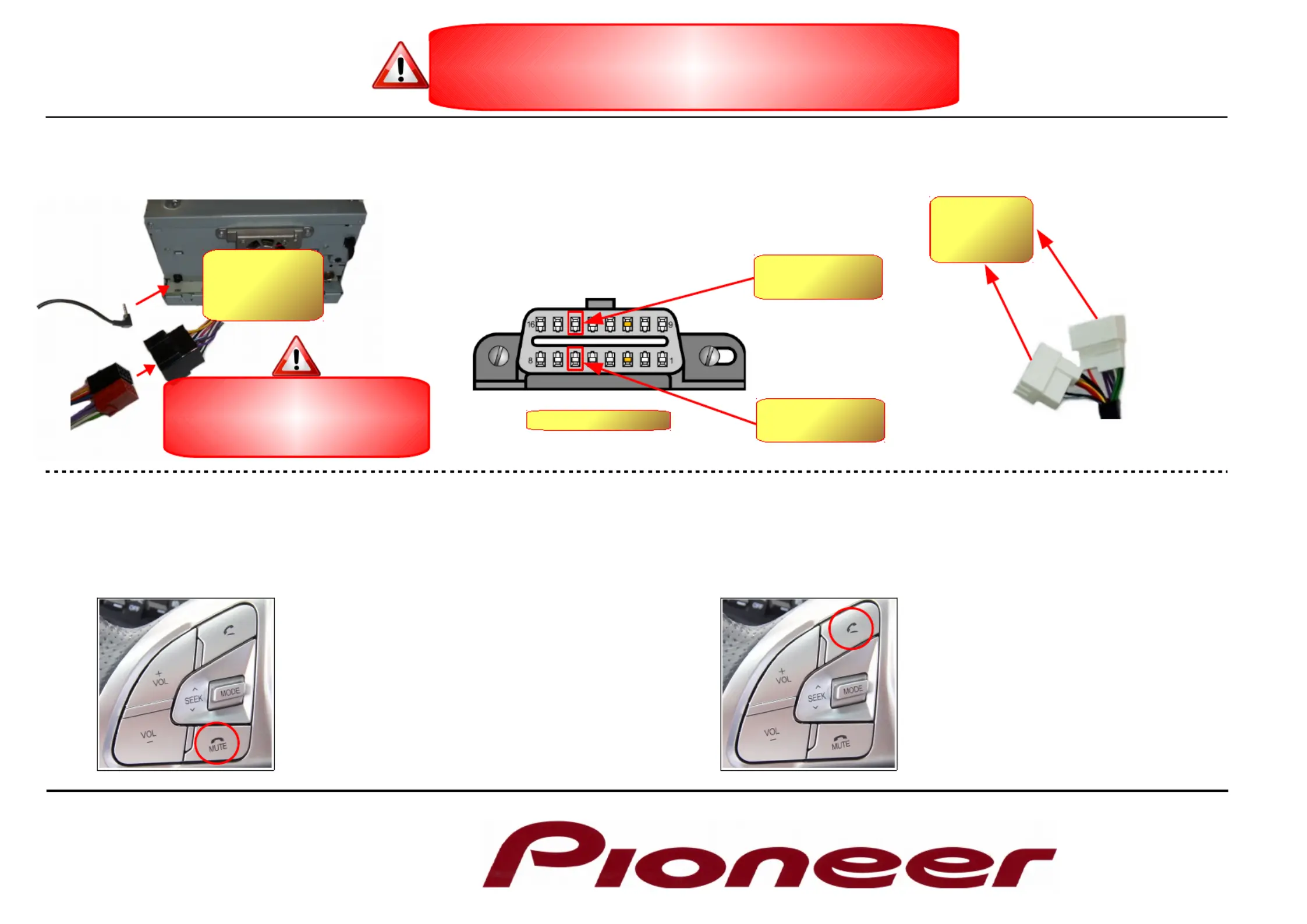

Installation Manual
Ssangyong Tivoli SWC
*IF SUPPORTED BY THE RADIO
Installation must be performed by a qualified professional installer only, with appropriate equipment. The manufacturer is not liable for any kind of incidental or indirect damages.
07/2015 All rights reserved. No liability for misprints
3 Plug-in all connections. Verify the
proper functioning of the system.
2 Connect the grey-red (CAN-H) and the
grey-blue (CAN-L) cables to the vehicle's
OBD connector (which is located under the
steering wheel, follow the numbers on the
connector for connecting wires).
1) If you the MUTE BUTTON, the function will be:long press
HOOK ON*.
If you the MUTE BUTTON, the function will be:short press
MUTE*.
1 Remove the original head unit. Connect the
ISO to the radio harness, the SWC Jack, and
all other needed connectors.
2) If you the TEL BUTTON, the function will be: long press
SPEECH*.
If you the TEL BUTTON, the function will be: short press
HOOK OFF*.
DOCUMENTS TO BE ATTACHED TO THE CUSTOMER'S VEHICLE -- STEERING WHEEL INSTRUCTION
RADIO
HARNESS
CAR
HARNESS
PIN 6 → CAN-H
(Grey/Red)
PIN 14 → CAN-L
(Grey/Blue)
OBD CONNECTOR
CONNECTOR'S FRONT VIEW
In order to prevent ESD damage, the
SWC Jack must be connected before
plugging the connectors on car side
(see point 3)
BEFORE INSTALLING THE KIT, PLEASE CAREFULLY
CHECK WHICH WIRING HARNESS IS REQUIRED BY
YOUR CAR AMONG THOSE SUPPLIED.
CA-R-SST.00C
