List of Parts
1
Remote Control & Batteries (AAA x 2)
2
Power Cord
3
Cover-Bottom
4
Data Cable
5
Stand & Screw (M4xL16)
6
• Owner’s Instructions
• Safety Guide
7
Guide Stand (32inch model only)
8
Cover Neck (32inch model only)
9
Screws (32inch model only)
0
Stand (32inch model only)
To register this product please visit
www.samsung.com/register.

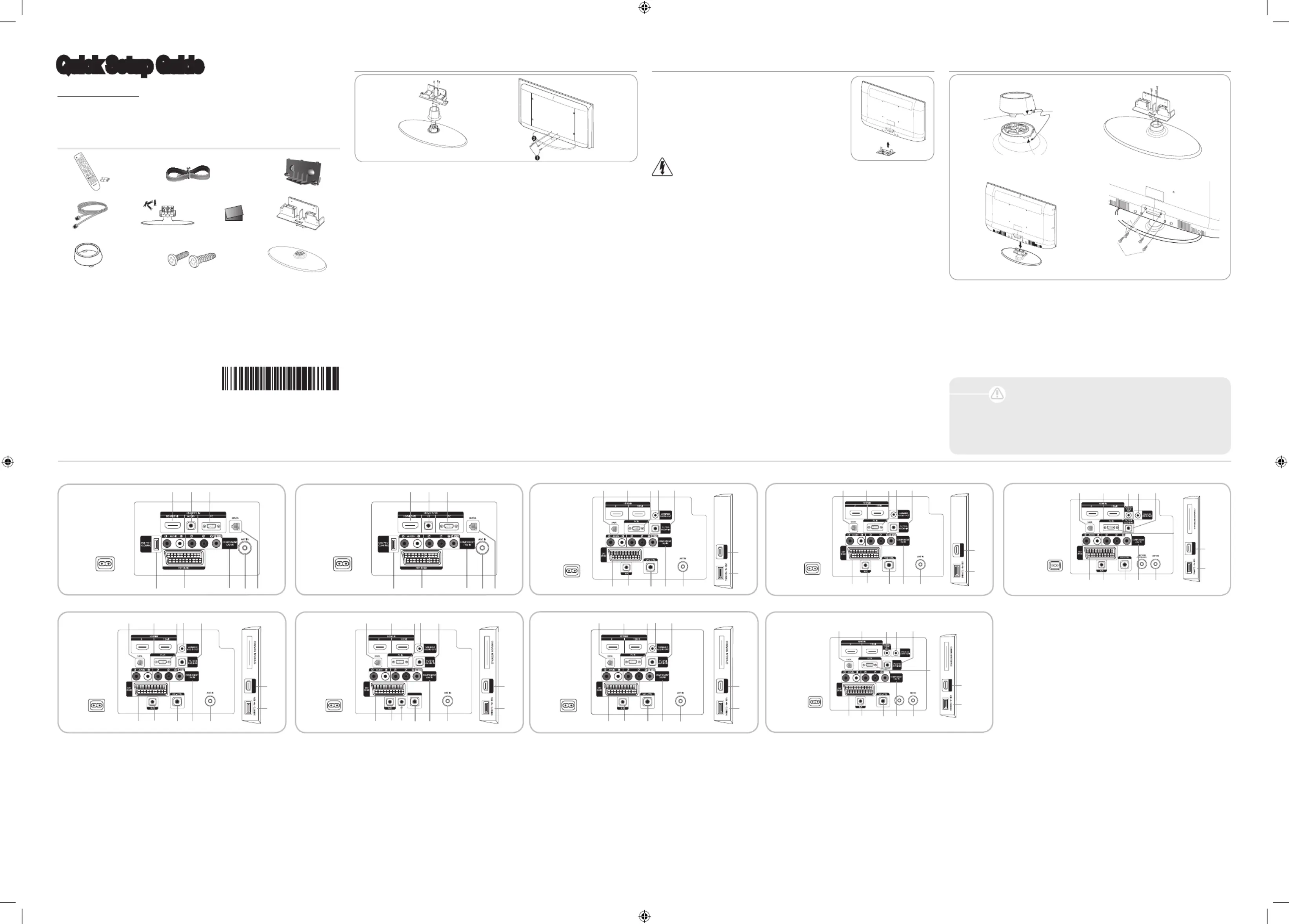

Quick Setup Guide
Installing the Stand
➣Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using
the screws. Applicable to 32 inch model only.
1. Attach your LCD TV to the stand.
➣Two or more people should carry the TV.
➣Make sure to distinguish between the front and back of the stand when
attaching it.
➣To make sure the TV is installed on the stand at a proper level, do not apply
excess downward pressure to the upper left of right sides of the TV.
2. Fasten two screws at position and then fasten two screws at position .1 2
➣Stand the product up and fasten the screws. If you fasten the screws with the
LCD TV placed down, it may lean to one side.
➣The stand is installed for models with the screen size of 37 inch and above.
Installing the Wall Mount Kit
Wall mount items (sold separately) allow you to mount
the TV on a wall. For detailed information on installing
the wall mount, see the instructions provided with the
Wall Mount items. Contact a technician for assistance
when installing the wall mounted bracket. Samsung
Electronics is not responsible for any damage to the
product or injury to yourself or others if you select to
install the TV on your own.
Do not install your Wall Mount Kit while your TV
is turned on. It may result in personal injury due to electric shock.
➣Remove the stand and cover the bottom hole with the cover.
➢ Make sure to distinguish between the front and back of each
component when assembling them.
➢ Make sure that at least two persons lift and move the LCD TV.
➢ Stand the product up and fasten the screws.
If you fasten the screws with the LCD TV placed down, it may lean
to one side.
Caution
Installing the LCD TV Stand (32inch model only)
1. Insert the Cover Neck into the groove of the stand. Assemble the LCD TV stand
by aligning the triangle figures indicated by the arrow marks.
2. Place the Guide Stand onto the stand which is assembled in step1 and fasten it
using the three screws.ⓐ
3.
Connect your LCD TV and the stand.
4.
Fasten two
ⓑ
screws at position
1
and then fasten two
ⓑ
screws at position
2
.
1
Front
Back
2
Front
Back
3
Position
2
Position
1
4
Viewing the Connection Panel
➣The product color and shape may vary depending on the model.
➣Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
➣When connecting an external device, match the color of the connection terminal to the cable.
1 VARIABLE AUDIO OUT
2
VOL-CTRL
3 ANT IN
4 HDMI IN 1(DVI), 2, 3
5 5V DC/2.5A
(12V DC/1.5A)
6 PC/DVI AUDIO IN
7 PC IN
8 USB / CLONING
9 DATA
0 RJP
! COMPONENT IN / AV IN
@ EXT
# HEADPHONE JACK
$ HP-ID
93!8
@
74 6
Power Input
LE22D460C9H
LE22D463C8H
LE22D467C9H
93!8
@
74 #
Power Input
LE22D460C9L
LE22D463C8L
HDMI IN3
4
8
14 7 69
0 2 !
@
3
Power Input
HDMI IN3
4
8
14 7 69
0 # !
@
3
HP-ID
$
Power Input
LE26D460C9H
LE26D463C8H
LE26D460C9L
LE26D463C8L
HDMI IN3
4
8
14 7 69
0 2 !
@
3
LA26D467C9H
HDMI IN3
4
8
14 7 69
0 2 !
@
3
Power Input
LE32D460C9H
LE32D463C8H
LE32D580K2H
LE37D580K2H
HDMI IN3
4
8
14 7 69
0 2 !
@
3
Power Input
LA32D467C9H
LA37D467C9H
LA40D467C9H
HDMI IN3
4
8
4
7
69 1 5
ANT 2IN
(SATELLITE)
!
@
0 2 3
Power Input
LE32D467C9H
LE37D467C9H
LE40D467C9H
HDMI IN3
4
8
4
7
69
@
1 5
0 ! 32
Power Input
LE26D467C9H
BN68-03592A-02
Power Input
1
5
2
3
6 7
9
0
8
4
[QSG]BN68-03592A-ENG.indd 1 2011-10-05 �� 10:56:09
