1] Remove all parts from package. Damaged
or missing parts can be quickly obtained
by contacting Sanus Customer Service
at (800) 359-5520 or www.sanus.com.
2] Group the top plate and base with the pil-
lars. The speaker cable hole in the base
and the bolt mounting hole in the top plate
should be to the rear of the pillar.
3] Using the 2.25” base screws, align
countersunk holes in the base plate with
corresponding holes in either end of each
pillar. Tighten screws with a large tipped
Phillips screw driver. A little hand soap on
the threads may make the screws easier
to turn. Using the 1.25” top plate screws,
align countersunk holes in the top plate
with corresponding holes in each pillar
and tighten. Make sure that each screw
is following the pilot hole. To avoid strip-
ping the screw holes, donʼt use a power
screwdriver.
4] Two forms of speaker mounts are pro-
vided, adjustable speaker studs and
rubber pads. If you do not wish to angle
the speaker upwaerd, twist a rubber pad
into each corner of the top plate. To angle
the speaker use the adjustable speaker
studs in the front corners of the top plate
and rubber pads in the rear corners. When
the required angle is achieved, lock the
stud in place by threading a nut against
the bottom of the top plate. Place a cap
over each stud.
Page 2 Page 3 * PLEASE READ THE NOTE ON PAGE 4 OF THIS MANUAL!
a
Top Plate & Pillars
a] Adjustable Front
Studs
b] Lock Nuts
c] Top Plate
d] Rear Rubber Pads
e] Pillars
d
c
b
Front View NFC18c
a] Plastic Feet
b] Base
c] Pillar
d] Top Plate
d
a
b
c
a
g
f
e
d
c
b
h

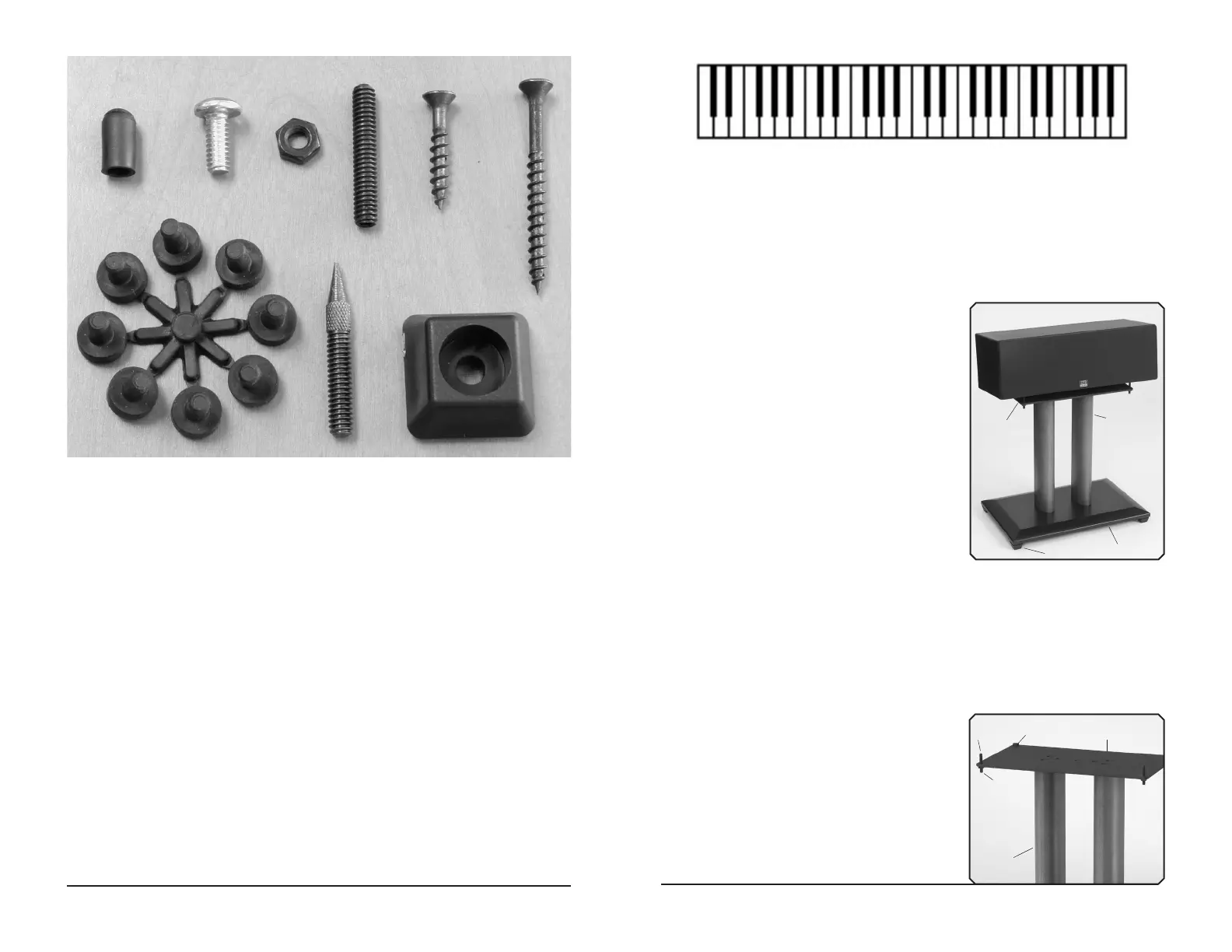

Parts List
NFC18
Adjustable Speaker Stud Cap -a 2
5/8” Pan Head 1/4-20 Bolts -b 4
Lock Nuts -c 6
Adjustable Speaker Stud -d 2
1.25” Base Screws -e 4
2.25” Base Screws -f 4
Rubber Pads (wheel of 8) -g 2
Adjustable Spiked Feet -h 4
Plastic Isolation Feet (set of 4) -c 1
Steel Top Plate 1
Wood Base Plate 1
Pillars 2
13.5” Wire Cover 2
a
b
c
d
e
i
