FD134030

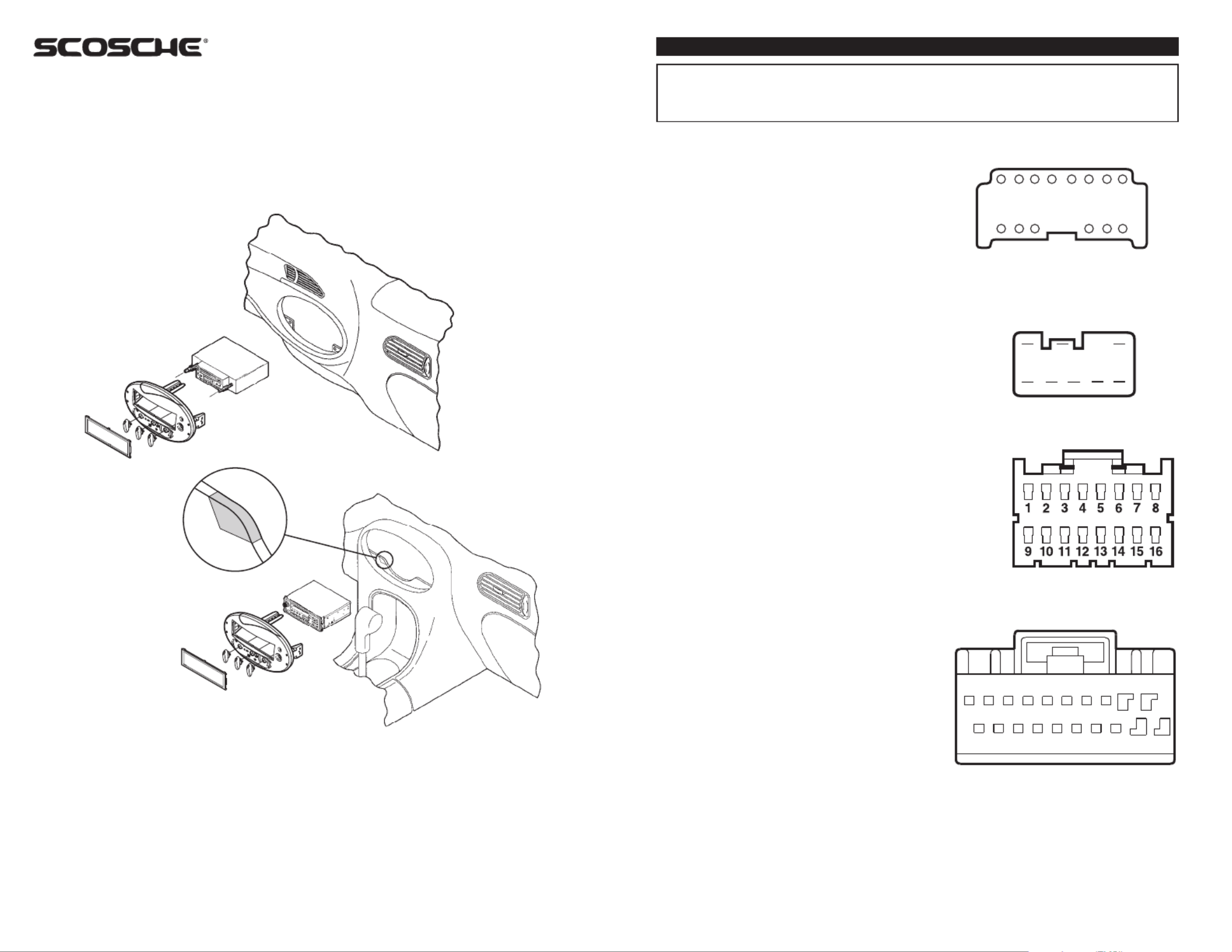

IN-DASH INSTALLATION KIT FOR
1996-99 FORD TAURUS
1996-99 MERCURY SABLE
WITH ROTARY CLIMATE CONTROLS
Minor modification may be
necessary on console model.
See shaded area.
NOTE: •All wire codes are viewed as looking at the front of the plug with the wires
exiting the rear.
•Use these wiring codes as a guide. Your vehicle might differ.
BLACK 16-PIN
9 = Open
10 = Momentary Defrost on
11 = Open
12 = Open
13 = Not Used
14 = Open
15 = Not Used
16 = Not Used
Not Used = Substitute
"Not for aftermarket use"
1 = Led Defrost On +12V
2 = Open
3 = Not Used
4 = Not Used
5 = Not Used
6 = Not Used
7 = Not Used
8 = Not Used
1 = Illumination
2 = Ground
3 = Battery +12V
4 = Open
5 = Open
6 = Ground
7 = Open
8 = Accessory +12V
GRAY PLUG 8-PIN
8 = RF+
9 = Open
10 = Power Antenna
11 = Open
12 = Ground
13 = Ground
14 = Battery +12V
BLACK 14- SPEAKER INPUT *
1 = LR-
2 = LR+
3 = RR-
4 = RR+
5 = LF-
6 = LF+
7 = RF-
*Located in trunk
1996-97 VEHICLES
1998-UP VEHICLES
POWER AND SPEAKER
1. = White/Pink = Not Used
2. = Blue/White = Not Used
3. = Black = Not Used
4. = Green/Violet = Defroster on Indicator
5. = Black/Pink = +12V Accessory
6. = Empty
7. = Light Green/Black = Not Used
8. = Empty
9. = Light Blue/Black = Not Used
10. = Black (Larger Gauge) = -12V Chassis Ground
11. = Brown/Light Green = Not Used
12. = Gray = Not Used
13. = Empty
14. = Blue/Orange = Defroster Switch Wire
(Momentary Ground)
15. = Red/Yellow = Not Used
16. = Gray/Red = Not used
17. = Tan = Not Used
18. = Light Blue/Pink = Not Used
19. = Black/Light Green = Not Used
20. = White = +12V Constant
1 2 3 4 5 6 7 8
9 10 11 12 13 14
1 2 3
4 5 6 7 8
201918171615
1413
1211
1 1098765
4
32
FACTORY WIRING CODES
