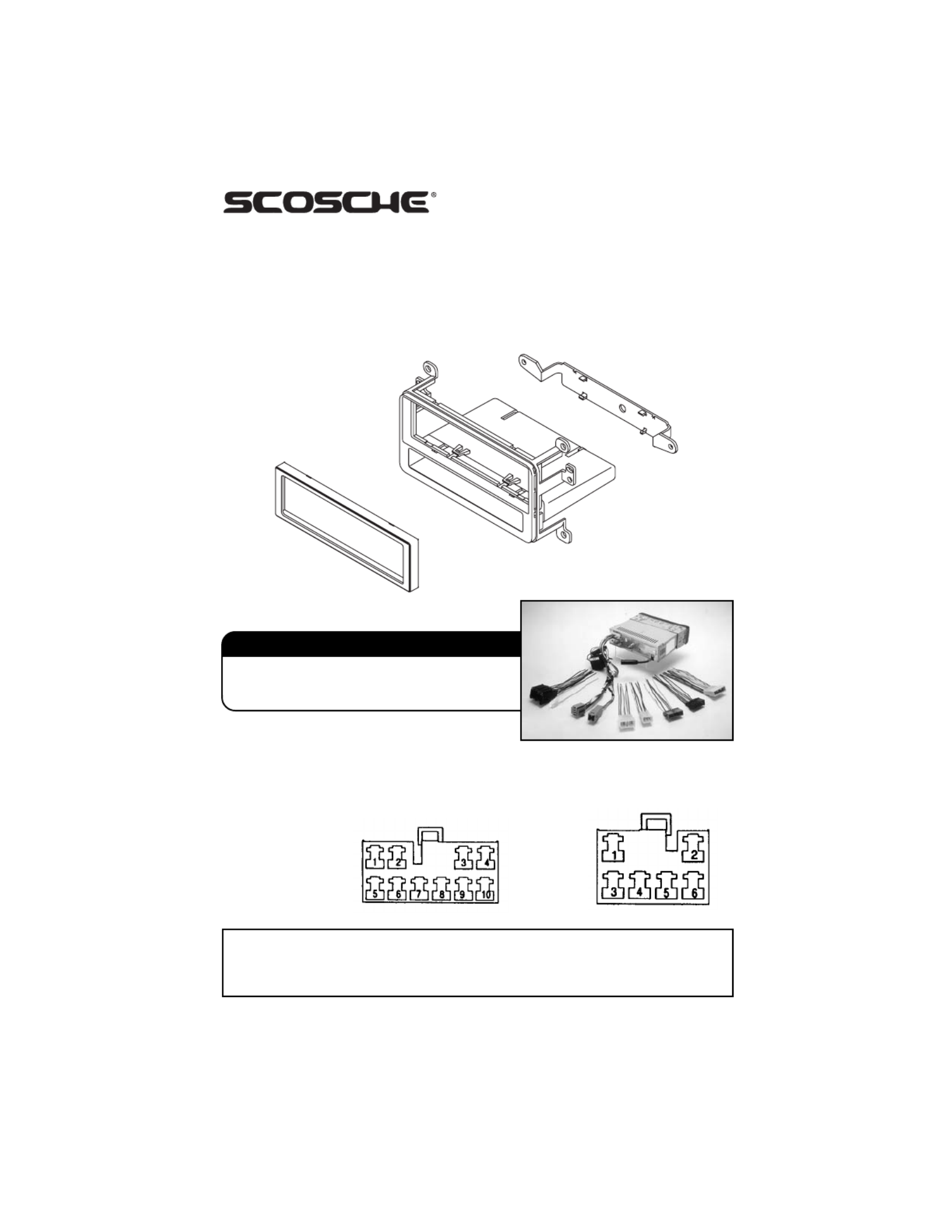

IN-DASH INSTALLATION KIT FOR
2001-UP TOYOTA RAV4 /
2000-UP MR2 SPYDER
1987-UP TOYOTA VEHICLES
Rear Speaker Plug
1 = Right Rear Negative
2 = Left Rear Negative
3 = Right Rear Positive
4 = Empty
5 = Empty
6 = Left Rear
Positive
CAR STEREO CONNECTOR
PROVIDE EASY CONNECTION
OF YOUR CAR STEREO
TO FACTORY WIRING
HARNESS.
TA02
1987-up Toyota
©2001 SCOSCHE INDUSTRIES, INC. SI 9/01-142TA2047B (3000005)
If you have any further questions, call TECH HELP 1-800-621-3695, ext. 3
142TA2047B
RAV4
MOUNTING
BRACKET
142TA2047B
POCKET
142TA2047B
TRIM RING
142TA2047B
MOUNTING
PANEL
Front Speaker and PowePlug
1 = Right Front Negative
2 = Left Front Negative
3 = Accessory +12V
4 = +12V Constant, Battery
5 = Right Front Positive
6 = Left Front Positive
7 = Chassis Ground
8 = Empty
9 = Empty
10 = Illumination +12V
LIABILITY DISCLAIMER
This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harness/codes and
information pertaining to installation of this kit (142TA2047B) in 2001-UP Toyota RAV4 / 2000-UP MR2 Spyder vehicles. Scosche
Industries, Inc. can not be held responsible for discrepancies/inconsistencies that may occur due to the automobile manufacturing
changes or options, or damage that may occur in the automobile during the installation of components while using this booklet.
