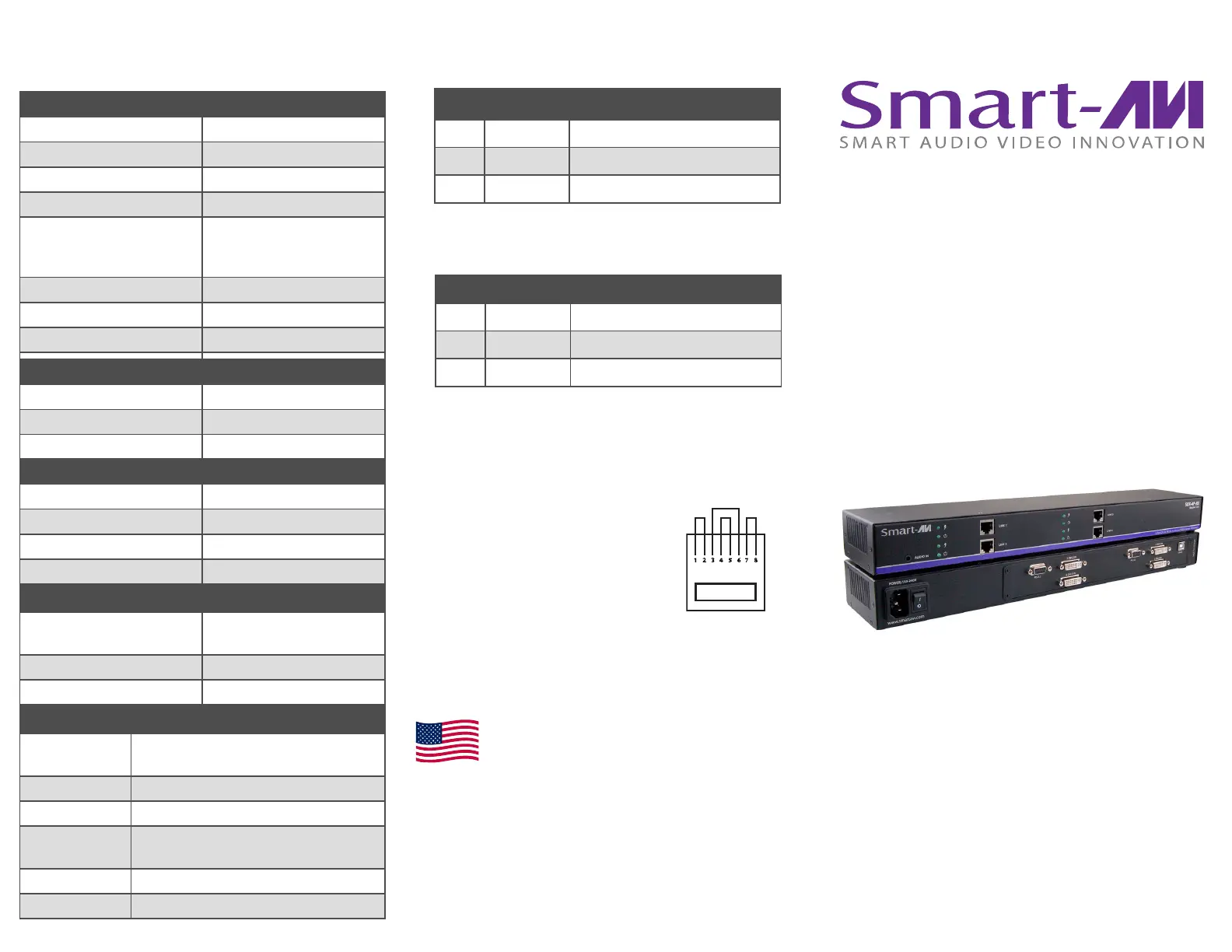

USER MANUAL
SDX-4P
EXTEND QUAD DVI-D, QUAD RS232,
USB KEYBOARD, MOUSE AND AUDIO
UP TO 400 FEET OVER FOUR
CAT5/5E/6 CABLE
VIDEO
Format (4) DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (4) DVI-D 29-pin (Female)
Output Interface (RX) (4) DVI-D 29-pin (Female)
Resolution Up to 1920x1200 @60Hz
and
3840x2160 @30Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
DVI-D Cable Max Length Up to 20 ft.
Output DVI-D Cable Length Up to 20 ft.
RS232
Input Interface (2) DB9 (Female)
Output Interface (2) DB9 (Male)
Speed Up to 115 Kbps
OTHER
Power Internal 100-240 VAC/5VDC4A
@20W
Dimensions 17 in W x 1.7 in H x 3.2 in D
Weight 4 lbs.
Operating
Temp.
0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
Signal Type Stereo Audio
Bandwidth 15MHz, 0dB
Impedance 100 Ohm
Connector 3.5 mm jack, Female
AUDIO
TECHNICAL SPECIFICATIONS
SUPER RANGE HDBaseT
QUAD DVI-D, DUAL RS232,
AUDIO, AND USB
KEYBOARD AND MOUSE
EXTENDER
USB
Signal Type USB 1.1 (Keyboard and
Mouse Only)
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (2) USB Type A (Female)
RECEIVE ON DB9 MALE
PIN # NAME DESCRIPTION
2 RxD Receive Data on DB9 Male
3 TxD Transmit Data on DB9 Male
5 SGND Ground
PIN # NAME DESCRIPTION
2 TxD Transmit Data on DB9 Female
3 RxD Receive Data on DB9 Female
5 SGND Ground
TRANSMIT ON DB9 FEMALE
PREPARING AND CONNECTING SYSTEM
CAT5 CABLE
Following is the wiring standard for terminating CAT 5
cable using RJ-45 connector:
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
Connectors: RJ-45
Capacitance: 14 pf/ft (46.2 pf/m)
Conductor Gauge: 24 AWG
Impedance: 100 +/- 15 ohms
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
Designed and Manufactured in the USA
