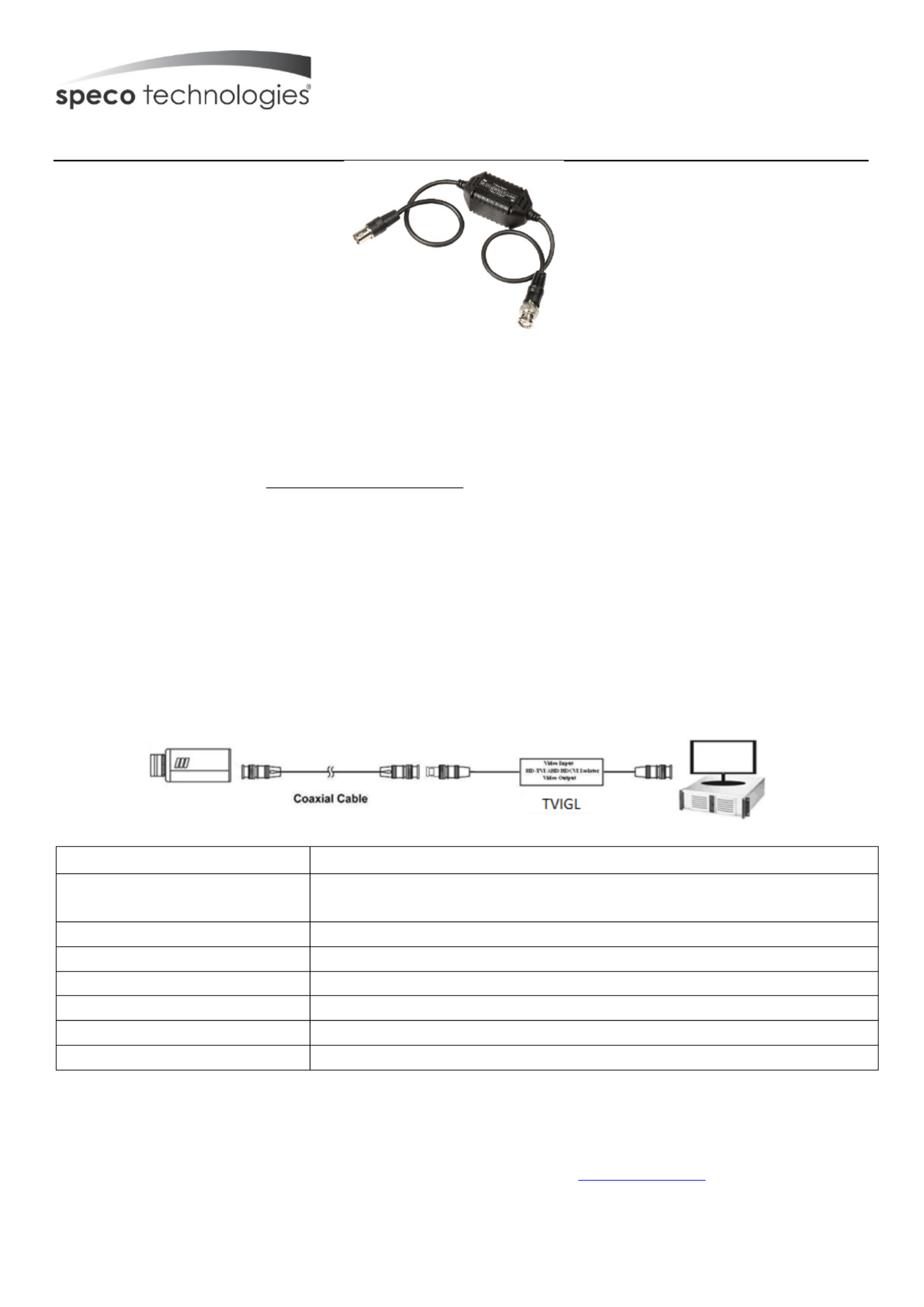

TVIGL Passive HD-TVI/ADH/HD-CVI Ground Loop Isolator
Thank you for your purchase of the TVIGL video ground loop isolator. This unit is designed for eliminating ground loop issues
with high-definition cameras and can easily install in a new or existing system where a video signal is transmitted via one cable
between two points with different ground potentials. Differences in ground potentials are typically caused by unbalanced
power load lines.
FEATURES
• IMPORTANT: The TVIGL does not support UTC function. Please make any adjustments between camera and
recorder prior to installation of the TVIGL. UTC commands WILL NOT work after this has been installed.
• Prevents video- signal distortion caused by video ground loops.
• Prevents power cables from interfering with the HD camera signal.
• Eliminates picture tearing, cross- talk and rolling.
• BNC male to BNC female with a 6” cable on each side.
• Passive, no power required.
• Supports resolutions up to 4K.
• Bandwidth: 25HZ to 50MHz (- 3dB)
• Maximum distance: 7874’ (200M)
INSTALLATION VIEW
SPECIFICATIONS
Frequency Response
25Hz ~ 50MHz (0～3dB)
Coaxial Input/Output
Resistance
75 Ohms
Ground Isolation
>90dB @ >50Hz
Isolation Voltage
500VAC / 600VDC
Insulation Resistance
>1M Ohm
CMRR
> 60dB
Dimensions
2.9 1.1 1” x x with 6” x 2 Cable
Weight
3 oz.
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com
Rev. 12/08/20
