Quick-Start Guide
Manual Revision: 08/16/2018
Product Design
Actual product may vary from photos

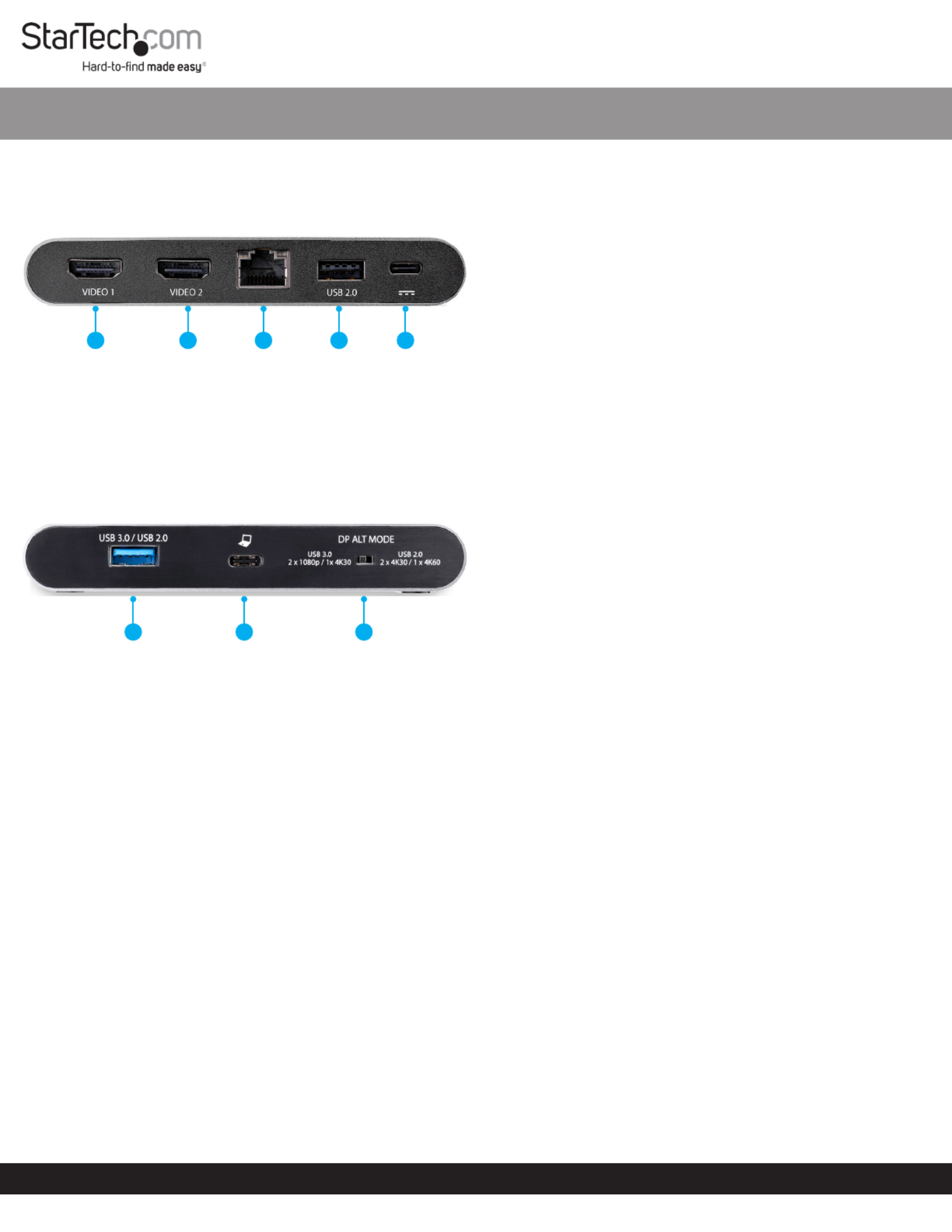

Front View
1. HDMI Video 1 Port
2. HDMI Video 2 Port
3. Ethernet Port
4. USB 2.0 Port
5. USB-C Power Delivery Port (DC Power Input Only)
Rear View
1. USB 3.0 / 2.0 Selectable Port
2. USB-C Host Port
3. DP Alt Mode Switch
Package Contents
• Multiport Adapter x 1
• USB-C Cable x 1
• Quick-Start Guide x 1
Requirements
Operating System
• Windows® 10 (32/64 bit), 8.1 (32/64-bit), 7 (32/64-bit)
Host
• Host Laptop with an available USB-C port x 1
Note: For full functionality the Host USB-C Port must support
USB Power Delivery 3.0 and DP Alt Mode.
• USB-C Power Adapter x 1
• Wall Outlet x 1
Peripherals
• HDMI Enabled Display Device x 2
• HDMI Cable x 2
• Network Device x 1
• Ethernet Cable x 1
• (Optional) USB 2.0 Peripheral Device x 2
SKU #: DK30C2HAGPD
Dual Monitor USB-C™ Multiport Adapter - Dual HDMI - 2x USB-A - GbE - 100W PD
Installation
Connect the Host Computer
1. Connect the USB-C Cable to the USB-C Host Port on the Multiport
Adapter.
2. Connect the other end of the USB-C Cable to your Laptop.
Connect the Displays
1. Connect an HDMI Cable to the HDMI Video 1 Port on the
Multiport Adapter.
2. Connect the other end of the HDMI Cable to the HDMI port on
your HDMI Enabled Display Device.
3. Repeat steps 1-2 for the HDMI Video 2 Port.
Connect a Network Device
1. Connect an Ethernet Cable to the Ethernet Port on the Multiport
Adapter.
2. Connect the other end of the Ethernet Cable to your Network
Device (e.g. Router, Switch, Modem, etc.).
(Optional) Connect USB Peripherals
1. Connect a USB 3.0 or USB 2.0 Cable to the USB 3.0 / 2.0 Selectable
Port on the Multiport Adapter.
Or
Connect a USB 2.0 Cable to the USB 2.0 Port.
2. Connect the other end of the USB Cable to your USB 3.0 or USB
2.0 Peripheral Device.
Operation
Charge Your Laptop
1. Connect a USB-C Power Adapter to the USB-C Power Delivery
Port on the Multiport Adapter.
2. Connect the other end of the USB-C Power Adapter to a Wall
Outlet.
DP Alt Mode Switch
Select the active based on your desired USB peripheral DP Alt Mode
performance and display resolution.
1. Disconnect the USB-C Host Port and USB-C Power Delivery Port
connections.
2. Toggle the DP Alt Mode Switch to the left for USB 3.0
performance (up to 5Gbps) and 2 x 1080p displays at 60Hz or 1 x
4K display at 30Hz.
Or
Toggle the DP Alt Mode Switch to the right for USB 2.0
performance (up to 480Mbps) and 2 x 4K displays at 30Hz or 1 x
4K display at 60Hz.
3. Reconnect the USB-C Host Port and USB-C Power Delivery Port
connections.
For the latest information, specications, and support visit www.startech.com/DK30C2HAGPD.
• (Optional) USB 2.0 Cable x 2
• (Optional) USB 3.0 Peripheral Device x 1
• (Optional) USB 3.0 Cable x 1
1
1 2 3 4 5
2 3
Probleemoplossing StarTech.com DK30C2HAGPD
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Grijs |
| Gewicht: | 281 g |
| Breedte: | 60 mm |
| Diepte: | 120 mm |
| Hoogte: | 19 mm |
| Breedte verpakking: | 145 mm |
| Diepte verpakking: | 208 mm |
| Hoogte verpakking: | 38 mm |
| Materiaal behuizing: | Kunststof |
| Connectiviteitstechnologie: | Bedraad |
| Ethernet LAN: | Ja |
| Meegeleverde kabels: | USB Type-C |
| Geïntegreerde geheugenkaartlezer: | Nee |
| Snelstartgids: | Ja |
| Aantal USB 2.0-poorten: | 1 |
| Aantal HDMI-poorten: | 2 |
| Microfoon, line-in ingang: | Nee |
| Aantal Ethernet LAN (RJ-45)-poorten: | 1 |
| Certificering: | CE, FCC, REACH |
| Resolutie (maximum digitaal): | 3840 x 2160 Pixels |
| Duurzaamheidscertificaten: | RoHS |
| Ethernet LAN, data-overdrachtsnelheden: | 10,100,1000 Mbit/s |
| Netwerkstandaard: | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Temperatuur bij opslag: | -20 - 70 °C |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A: | 1 |
| Ondersteunt Mac-besturingssysteem: | Mac OS X 13.0 Ventura |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C: | 2 |
| Hostinterface: | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Auto MDI/MDI-X: | Ja |
| USB Power Delivery: | Ja |
| USB Power Delivery tot max.: | 100 W |
| Full duplex: | Ja |
| Chipset: | VIA/VLI - VL102, VIA/VLI - VL170, VIA/VLI - VL817, MegaChips - STDP4320, MegaChips - MCDP2900, RealTek - RTL8153 |
| (Buitenste) hoofdverpakking hoogte: | 275 mm |
| (Buitenste) hoofdverpakking breedte: | 305 mm |
| (Buitenste) hoofdverpakking lengte: | 435 mm |
| Hoeveelheid per (buitenste) hoofdverpakking: | 24 stuk(s) |
| Overdrachtssnelheid: | 5 Gbit/s |
| Bedrijfstemperatuur (T-T): | 0 - 50 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 0 - 95 procent |
| Code geharmoniseerd systeem (HS): | 84733020 |
| UASP-ondersteuning: | Ja |
