Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
Manual Revision: December 14, 2023

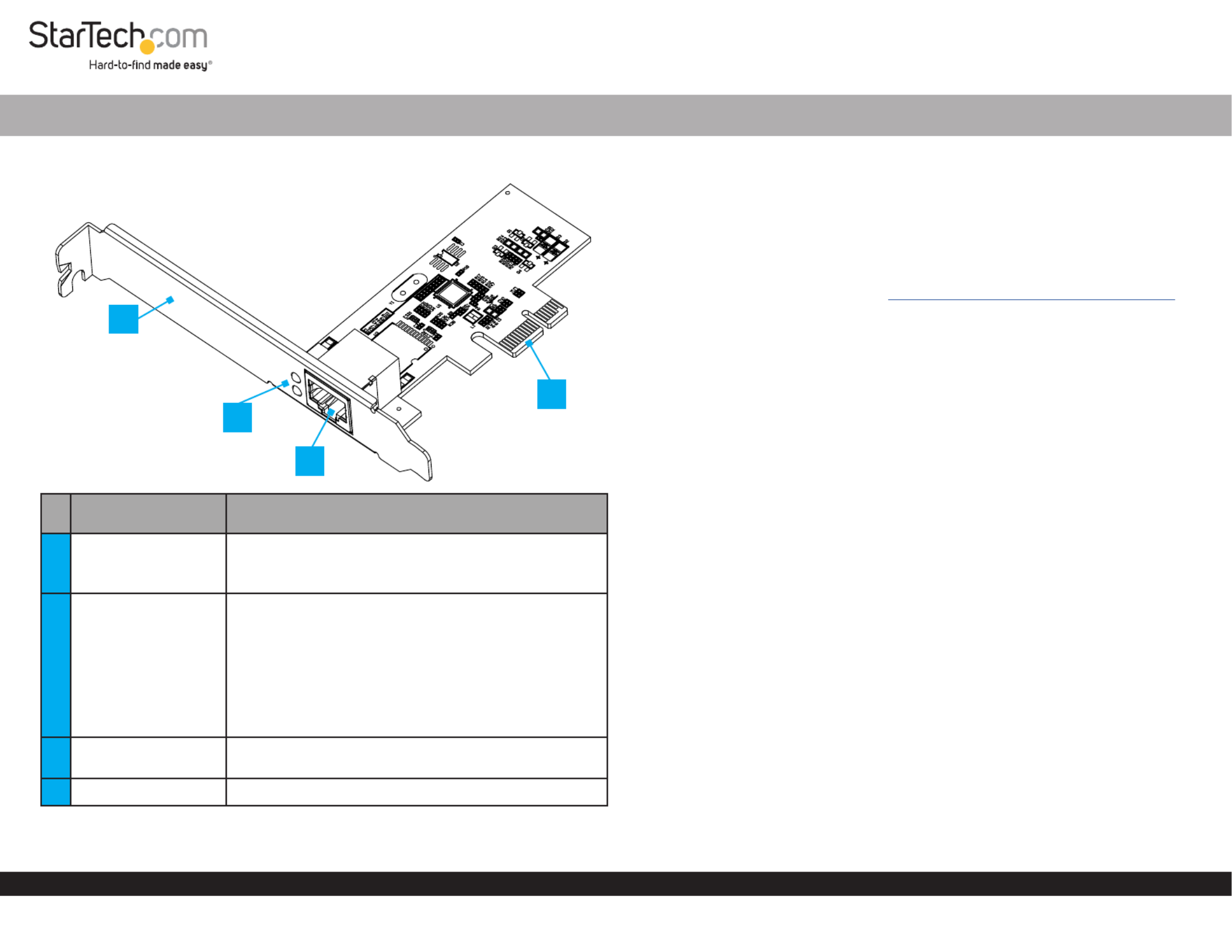

Product Diagram (PR12GI-NETWORK-CARD)
Port/LED/Connector Function
1 Bracket
• Secures the card to the Host Computer Case
• The Full Prole Bracket comes pre-installed
• The Low Prole Bracket is included
2
LED Indicators
(As seen on image)
• Top LED Indicator is 1000/100/10 Mbps Link
Activity
• Solid Green: 1000/100/10 Mbps
• Flashing Green: Activity
• Bottom LED Indicator is 2.5 Gbps Link /Activity
• Solid Green: 2.5 Gbps
• Flashing Green: Activity
3 Ethernet Port
• Connect a Network Cable to the Network Card
• Supports 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
4 PCIe 2.0 p1-x1 Connector • Insert into a PCI Express Slot on the Host Computer
1-Port PCIe 2.5G Ethernet Network Adapter Card - Intel
Package Contents
• 1-Port PCIe 2.5 Gbps Network Card x 1
• Low Prole Bracket x 1
• Quick-Start Guide x 1
Requirements
For the latest requirements, please visit www.startech.com/PR12GI-NETWORK-CARD
• Host computer with an available PCI Express 2.0 or greater slot (x1, x2, x4, x8, or x16)
Installation
Install the PCI Express Card
WARNING!
Static Electricity can severely damage PCI Express Cards. Ensure that you are
adequately Grounded before you open your Host Computer Case or touch the PCI
Express Card. You should wear an Anti-Static Strap or use an Anti-Static Mat when
installing any Host Computer component. If an Anti-Static Strap isn’t available,
discharge any built-up static electricity by touching a large Grounded Metal Surface
for several seconds. Only handle the PCI Express Card by its edges and don’t touch the
gold connectors.
1. Turn o the Host Computer and any Peripheral Devices that are connected to it
(e.g. printers, external hard drives, etc.).
2. Unplug the Power Cable from the back of the Host Computer.
3. Disconnect any Peripheral Devices that are connected to the Host Computer.
4. Remove the Cover from the Host Computer Case. Consult the documentation that
came with the Host Computer for details about doing this safely.
5. Locate an open PCI Express Slot and remove the corresponding Slot Cover Plate
from the back of the Host Computer Case.
Note: Consult the documentation that came with the Host Computer for details about
doing this safely.
This card works in PCI Express x1, x2, x4, x8, or p1-x16 Slots.
6. Gently insert the PCI Express Card into the open PCI Express Slot and fasten the
Bracket to the back of the Host Computer Case.
Note: If you install the PCI Express Card into a Small Form Factor or a Low Prole
Desktop System, it may be necessary to replace the pre-installed standard
4
1
*Product may vary from image
3
2
Probleemoplossing StarTech.com PR12GI-NETWORK-CARD
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Gewicht: | 100 g |
| Breedte: | 89 mm |
| Diepte: | 121 mm |
| Hoogte: | 15 mm |
| Breedte verpakking: | 170 mm |
| Diepte verpakking: | 142 mm |
| Hoogte verpakking: | 30 mm |
| LED-indicatoren: | Ja |
| Connectiviteitstechnologie: | Bedraad |
| Aantal Ethernet LAN (RJ-45)-poorten: | 1 |
| Interface: | Ethernet |
| Ethernet LAN, data-overdrachtsnelheden: | 10,100,1000,2500 Mbit/s |
| Netwerkstandaard: | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Temperatuur bij opslag: | -10 - 70 °C |
| Intern: | Ja |
| Ondersteunt Linux: | Ja |
| Snelle installatiehandleiding: | Ja |
| Hostinterface: | PCI Express |
| Maximale overdrachtssnelheid van gegevens: | 2500 Mbit/s |
| Ondersteunde server operating systems: | Windows Server 2019, Windows Server 2022 |
| Montagebeugels meegeleverd: | Ja |
| Jumbo Frames ondersteuning: | Ja |
| Full duplex: | Ja |
| Chipset: | Intel I225-V |
| Component voor: | Pc/server |
| (Buitenste) hoofdverpakking hoogte: | 325 mm |
| (Buitenste) hoofdverpakking breedte: | 605 mm |
| (Buitenste) hoofdverpakking lengte: | 385 mm |
| Hoeveelheid per (buitenste) hoofdverpakking: | 80 stuk(s) |
| Auto MDIX IEEE: | Ja |
| Auto-negotiation: | Ja |
| Wake-on-LAN: | Ja |
| Bedrijfstemperatuur (T-T): | 5 - 50 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 5 - 90 procent |
| Jumbo frames: | 9000 |
| PCI versie: | 2.0 |
