Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 02/07/2012

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1xDVIExtenderLocalUnit

• 1xDVIExtenderRemoteUnit

• 2xPowerAdapter

• 1xInstructionManual

System Requirements

• DVIenabledvideosourcedevice(i.e.computer,PVR/DVR,etc)

• DVIenabledvideodisplaydevice(i.e.monitor,projector,etc)

• AvailableACelectricaloutatlocal/remotelocations

ST121UTPDVI / ST121UTPDVGB / ST121UTPDVEU

DVI Video Extender over CAT5 UTP

Installation

1.Turnothevideosource(i.e.computer)andtheintendeddisplay

device(i.e.monitor).

2.PositiontheRemoteUnitneartheintendeddisplay.

3.PositiontheLocalUnitnearthevideosource.

Please notethatbothunitswillrequireapowerconnection,so

pleaseensurethateachunitissituatednearanavailablepower

outlet.

4.Connectthevideosourcetothe“DVIIn”portontherearpanelof

theLocalUnit,usingaDVI-Dmale/malecable.

5.Connecttheintendeddisplaytothe“DVIOut”portlocatedonthe

rearpaneloftheRemoteUnitusingaDVI-Dmale/malecable.

6.ConnecttheLocalUnittotheRemoteUnit,usingstandardRJ45

terminatedCAT5cable(seePreparingYourSite).

7.Connectthepoweradapters(provided)tobothLocalandRemote

Units.

8.Turnonthedisplaydevicerst,followedbythevideosource.

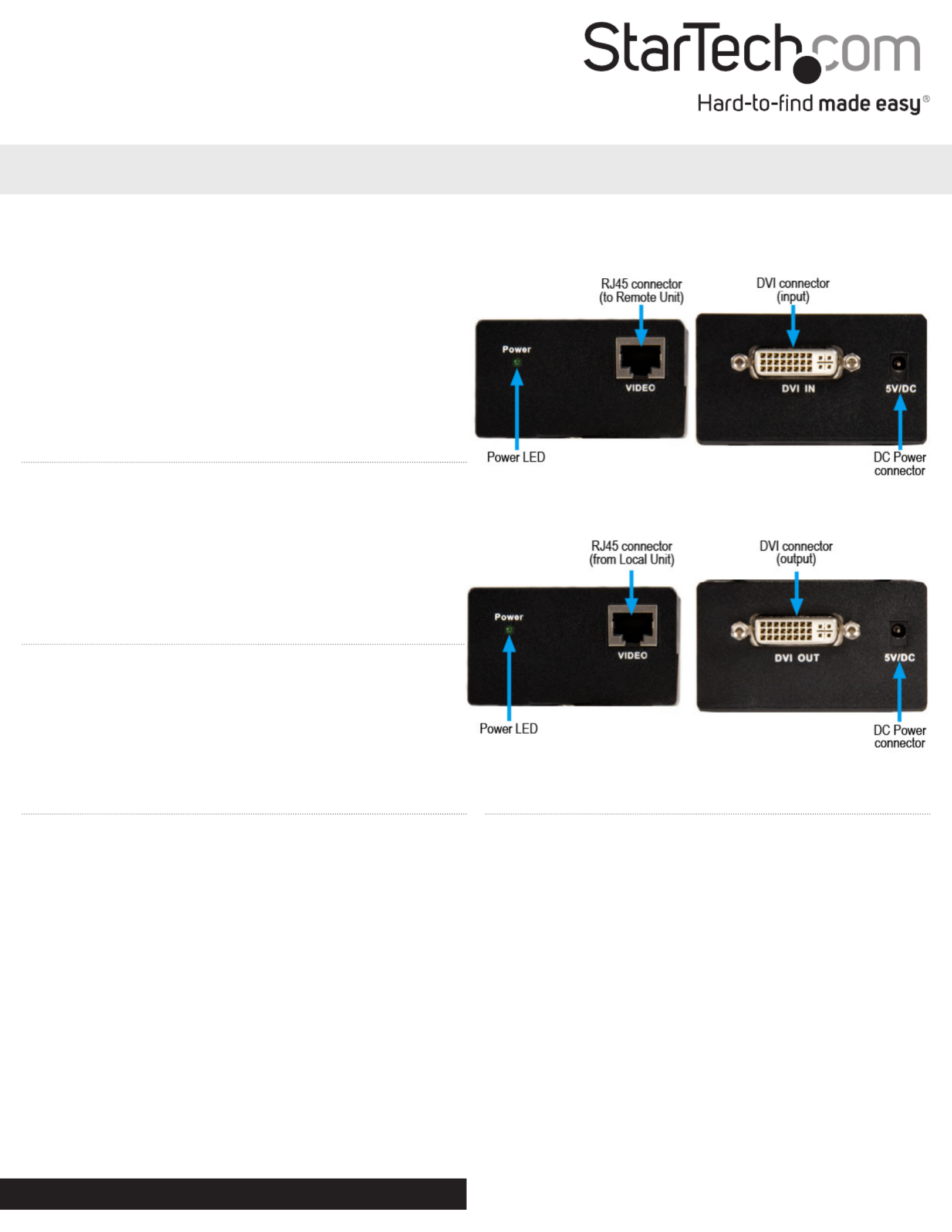

Local Unit

Remote Unit

Preparing Your Site

1.Determinewherethelocalvideosource(i.e.computer)willbe

locatedandsetupthedevice.

2.Determinewheretheremotedisplaywillbelocatedandplace/

mountthedisplayappropriately.

3.Ifyouareusingsurfacecabling,ensureyouhaveenoughCat5

unshieldedtwistedpair(UTP)Ethernetcablingtoconnectthe

LocalUnittotheRemoteUnit’slocation,andthateachendis

terminatedwithaRJ45Ethernetconnector.Thecablingshouldnot

gothroughanynetworkingequipment(i.e.router,switch).

Ifyouareusingpremisecabling,ensurethattheCat5unshielded

twistedpair(UTP)EthernetCablingbetweentheLocalUnitand

theRemoteUnithasbeenproperlyterminatedinawalloutletin

eachlocationandthereisapatchcablelongenoughtoconnect

theRemoteUnitandtheLocalUnittotheirrespectiveoutlets.The

cablingshouldnotgothroughanynetworkingequipment(i.e.

router,switch).

Probleemoplossing StarTech.com ST121UTPDVEU

Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp

Specificaties

Kleur van het product:	Zwart
Gewicht:	138 g
Gewicht verpakking:	660 g
Breedte verpakking:	67 mm
Diepte verpakking:	244 mm
Hoogte verpakking:	155 mm
Soort:	AV-zender
Gebruikershandleiding:	Ja
Stroom:	0.2 A
Maximum resolutie:	1600 x 1200 Pixels
Aansluiting voor netstroomadapter:	Ja
Externe adapter:	Ja
DVI input ports:	1
DVI output ports:	1
RJ-45 uitgang ports:	1
Afmetingen (B x D x H):	52 x 67 x 38 mm
RJ-45 invoer ports:	1
Operating voltage:	115 V
Maximaal bereik:	45 m
Ondersteundende kabel types:	Cat5
