Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 01/19/2023
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
• 1x 7-Port Industrial USB 3.0 Hub
• 1x USB 3.0 A - B Cable
• 1x DIN Rail Mounting Kit
• 1x Terminal Block Connector (2 Wire)
• 1x Instruction Manual
Installation
Connect the USB Ports
1. Connect up to seven USB peripherals to the USB 3.0 Hub Ports,
located on the USB Hub.
2. Use the included USB 3.0 A - B Cable, to connect a USB port,
located on the Host Computer USB 3.0 Host Portto the , located
on the USB Hub.
• The Computer will automatically detect the device and install
the required drivers for the USB Hub.
Power the Hub with an External Power Supply
The USB hub can operate with bus power alone, or with an external
7~48V DC Power Source 2-Wire Termal Block connected via the .
However, it is recommended that a DC Power Source be connected
to ensure sucient power is delivered to each USB 3.0 Port.
Congure the USB Hub to Accept an External Power Source
USB Bus Power must be disabled before the USB Hub can accept an
external power source. This is accomplished by adjusting a jumper,
located on one of the USB Hub’s PCBs. Follow the below steps to
disessemble the USB Hub and congure the jumper:
1. Using a Phillips-head screwdriver. Remove the four screws,
located on the top and bottom sides of the USB Hub (above each
of the mounting brackets), and the two screws located on the side
of the USB Hub (six screws in total).
2. Carefully remove the top metal panel from the USB Hub, and
remove the four screws, located on the upper PCB, using a Philips-
head screwdriver.
3. Carefully lift the upper PCB away from the bottom of the USB Hub,
reveiling the lower PCB. The pin culster is located USB BUS PWR
on the upper-right side of the lower PCB.
• Removing the upper PCB will disconnect the pins on either
side of the lower PCB that connects the two boards.
System Requirements
• Host Computer with an available USB port
• DC Power Source, 2-Wire 7~48V (Optional)
Product Overview

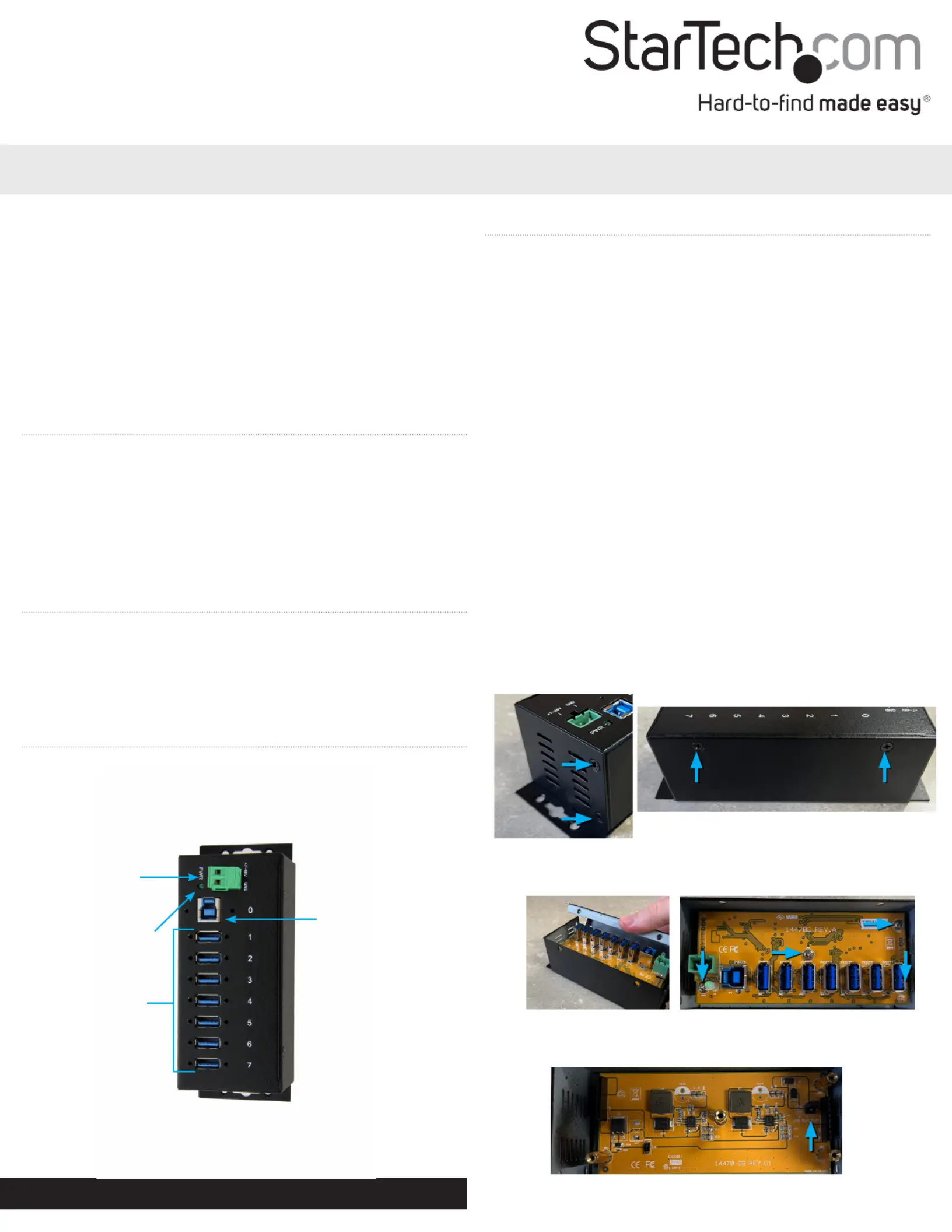

Front View
ST7300USBME
7-Port Industrial USB 3.0 Hub with ESD Protection
Power LED
USB 3.0 Host Port
USB 3.0 Hub Ports
2-Wire Terminal
Block-included
(7~48V DC Input)
