Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: December 9, 2019 12:12 PM

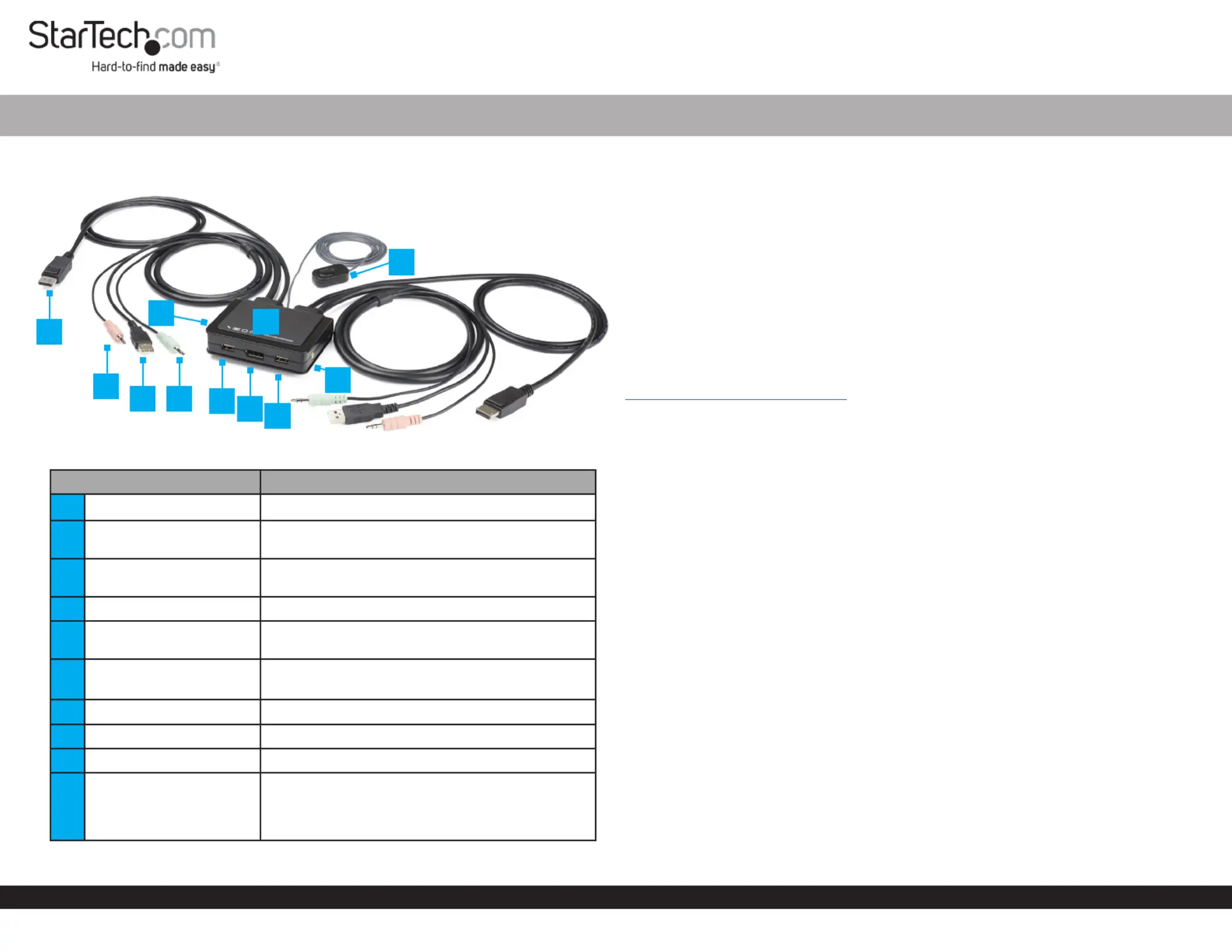

Product Diagram (SV211DPUA4K)
Component Function
1DisplayPort Connector • Connect a DisplayPort Enabled Computer
2
Microphone Audio
Connector
• Connect the to the Microphone Audio
Computer
3USB-A Connector
• Transmit the signal of a and Keyboard Mouse
from the to the KVM Switch Computer
4Microphone Audio Port • Connect a Microphone
5Stereo Audio Connector
• Connect the from the Speaker Audio
Computer
6USB HID Ports
• Connect a and Keyboard Mouse
• (Optional) Connect USB Peripherals
7DisplayPort Port • Connect a DisplayPort Display
8LED Indicators • Indicates selection and activityComputer
9Stereo Audio Port • Connect Stereo Speakers
10 Remote Switch
• A wired button used to switch between
Computer 1 2 and
• Press Release Remote Switch and the to
switch between and Computer 1 2
2-Port USB DisplayPort™ Cable KVM Switch w/ Audio and Remote Switch - 4K 60Hz
Requirements
• DisplayPort Enabled Computers x 2
• DisplayPort Display x 1
• USB HID Devices (Keyboard and Mouse) x 2
• (Optional) USB Peripherals x 2
• (Optional) Microphone x 1
• (Optional) Stereo Speakers or Headphones x1
• (Optional) Headset x 1
Note: A Headset may require the use of a Headset Adapter. Check with the
manufacturer of the Headset for more details.
• (Optional) 3.5 mm Audio Cables x 2
For the latest requirements and to view the full User Manual, please visit
www.startech.com/SV211DPUA4K.
Installation
Connect the Computers
1. Connect the built-in to the Computer 1 DisplayPort Connector DisplayPort Port
on .Computer 1
2. Connect the built-in to the on Computer 1 USB-A Connector USB-A Port
Computer 1.
3. (Optional) Connect the built-in (green) to the Computer 1 Stereo Audio Connector
3.5 mm Stereo Audio Port Computer 1 on .
4. (Optional) Connect the built-in (pink) Computer 1 Microphone Audio Connector
to the on .3.5 mm Microphone Audio Port Computer 1
5. Repeat steps 1-4 to install .Computer 2
Connect the Console
1. Connect the to the USB-A Devices (Keyboard, Mouse, or USB Peripherals) USB-A
Ports KVM Switch Keyboard Mouse USB Cables on the using the built-in and or
USB-A Cables (sold separately).
2. (Optional) Connect a from the or 3.5 mm Audio Cable Stereo Speakers
Headphones Speaker Audio Port KVM Switch to the (pink) on the .
3. (Optional) Connect a from the to the 3.5 mm Audio Cable Microphone
Microphone Audio Port KVM Switch (pink) on the .
1
2
3 5
6
7
6
4
9
10
8
Probleemoplossing StarTech.com SV211DPUA4K
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Ingebouwd display: | Nee |
| Gewicht: | 350 g |
| Breedte: | 82.2 mm |
| Diepte: | 97 mm |
| Hoogte: | 9 mm |
| Snoerlengte: | 1.2 m |
| Breedte verpakking: | 60 mm |
| Diepte verpakking: | 210 mm |
| Hoogte verpakking: | 160 mm |
| Materiaal behuizing: | Kunststof |
| LED-indicatoren: | Ja |
| USB-connectortype: | USB Type-A |
| Maximum resolutie: | 3840 x 2160 Pixels |
| Certificering: | CE, FCC, REACH |
| HD type: | 4K Ultra HD |
| Duurzaamheidscertificaten: | RoHS |
| Aantal DisplayPorts: | 1 |
| On Screen Display (OSD): | Nee |
| Temperatuur bij opslag: | -20 - 60 °C |
| Sneltoetsen: | Ja |
| Ondersteunt Mac-besturingssysteem: | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Rack-montage: | Nee |
| Snelle installatiehandleiding: | Ja |
| Mean time between failures (MTBF): | 1012884 uur |
| DisplayPort versie: | 1.2 |
| Console port: | DisplayPort |
| Ondersteunde server operating systems: | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Aansluiting video: | DisplayPort |
| (Buitenste) hoofdverpakking hoogte: | 345 mm |
| (Buitenste) hoofdverpakking breedte: | 440 mm |
| (Buitenste) hoofdverpakking lengte: | 345 mm |
| Hoeveelheid per (buitenste) hoofdverpakking: | 20 stuk(s) |
| Bedrijfstemperatuur (T-T): | 0 - 40 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 0 - 90 procent |
| Code geharmoniseerd systeem (HS): | 85176200 |
| Aansluiting toetsenbord: | USB |
| Aansluiting muis: | USB |
| Aantal computers: | 1 |
| Console-poorten: | USB A |
| Videobandbreedte: | 60 Hz |
| Audiokanalen: | 2.0 |
| Audio-aansluitingen: | Ja |
| Doorgelust: | Nee |
| Scaninterval: | 10, 20, 30, 40, 50, 60 s |
| Aantal USB-poorten console: | 2 |
| IP control: | Nee |
