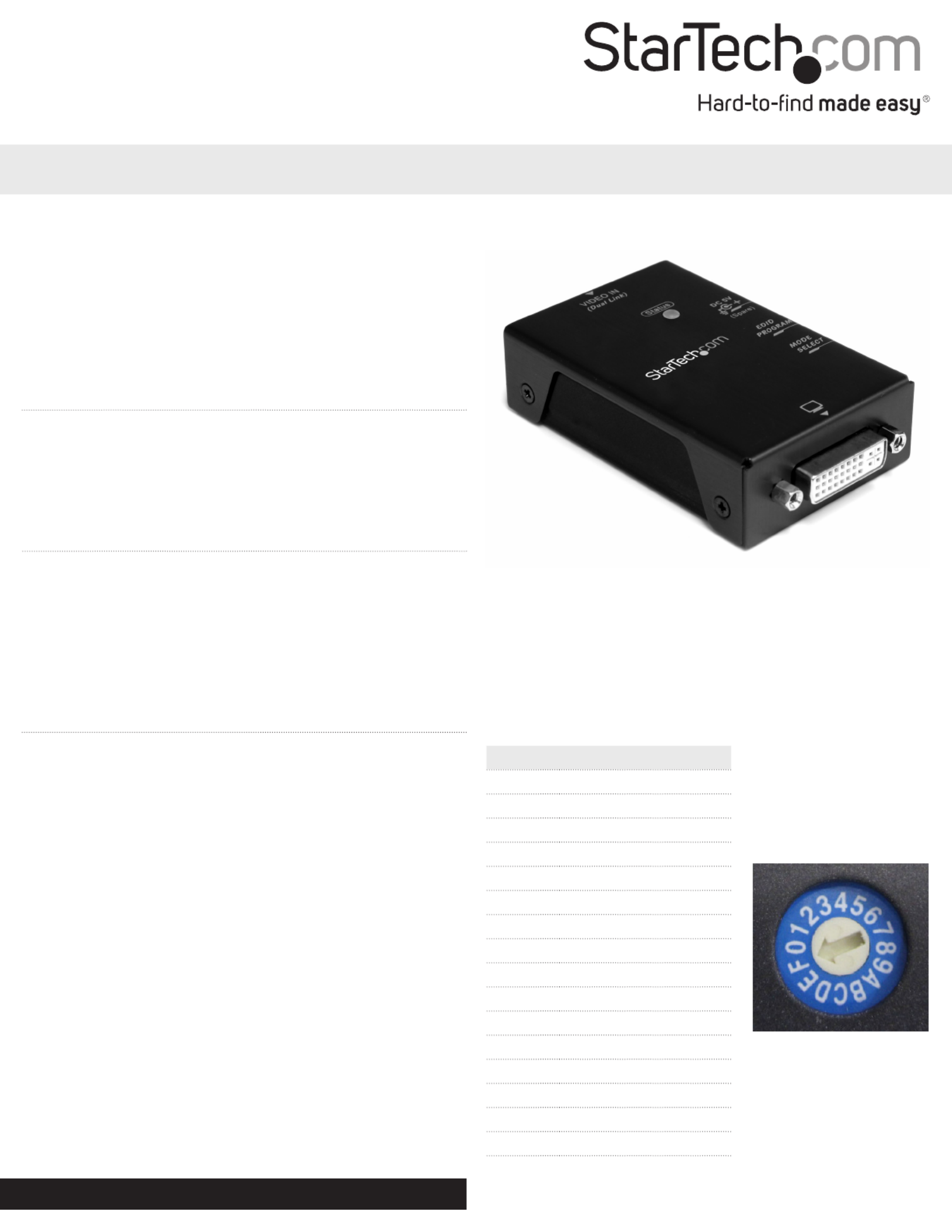

Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 05/16/2012
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
• 1 x DVI EDID Emulator
• 1 x USB to DC Power Cable
• 1 x Pack, Rubber Feet
• 1 x Instruction Manual
System Requirements
• DVI-D enabled display device (i.e. monitor, projector, etc.)
• DVI-D enabled video source (i.e. computer)
• Available USB port on video source (during Copy only)
• DVI-D video cable (from video source)
• DVI-D video cable (to display)
VSEDIDDVI
DVI EDID Emulator with EDID Copy
Installation
EDID information contains important display settings such as
maximum image size, color characteristics, factory pre-set timings,
frequency range limits, etc., and since most video extender systems
don’t oer EDID communication between the source and remote
display, the DVI EDID Emulator is a perfect workaround for ensuring
the optimum signal is provided to the display to help prolong the
life of your displays.
EDID Copy
To clone/copy the EDID from a display.
1. Set the rotary dial to position 1.
2. Connect the USB to DC power cable from the unit, to an available
USB port on the video source device (may need to be powered
on) or display device. The Status LED will light up blue.
3. Connect the EDID compliant display device to the Monitor port
on the EDID Emulator using the appropriate type of DVI cable
(DVI-D, dual or single link). Power on the display device.
4. Press and hold the EDID Program button until the Status LED
starts to ash green. The LED will ash green/red while copying.
5. Once the Status LED returns to blue, the EDID Copy has
completed successfully.
Preset EDID Emulation
If you are unable to clone the EDID from a display device, or are
using non-EDID compliant displays, basic preset EDIDs built into the
EDID Emulator can be used.
1. Set the rotary dial to the position for the maximum resolution you
wish to set.
Position Description
0 Pass through
1 EDID Copy
2 1024 x 768
3 1280 x 720
4 1280 x 1024
5 1366 x 768
6 1440 x 900
7 1600 x 900
8 1600 x 1200
9 1680 x 1050
A 1920 x 1080
B 1920 x 1200
C 1920 x 1440
D 2048 x 1152
E 2560 x 1440
F 2560 x 1600
*actual product may vary from photos
Probleemoplossing StarTech.com VSEDIDDVI
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Kleur van het product: | Zwart |
| Gewicht: | 123 g |
| Breedte: | 52 mm |
| Diepte: | 80 mm |
| Hoogte: | 22 mm |
| Gewicht verpakking: | 243 g |
| Breedte verpakking: | 102 mm |
| Diepte verpakking: | 157 mm |
| Hoogte verpakking: | 46 mm |
| Gebruikershandleiding: | Ja |
| Materiaal behuizing: | Staal |
| LED-indicatoren: | Error, Power |
| Meegeleverde kabels: | USB |
| Certificering: | FCC, CE, RoHS |
| Maximale videoresolutie: | 2560 x 1600 Pixels |
| Temperatuur bij opslag: | -20 - 60 °C |
| Intern: | Nee |
| Externe adapter: | Ja |
| Stroomvoorziening via USB: | Ja |
| Hostinterface: | DVI-I |
| Operating voltage: | 5 V |
| Aansluiting video: | DVI-I |
| (Buitenste) hoofdverpakking hoogte: | 170 mm |
| (Buitenste) hoofdverpakking breedte: | 174 mm |
| (Buitenste) hoofdverpakking lengte: | 432 mm |
| Hoeveelheid per (buitenste) hoofdverpakking: | 40 stuk(s) |
| Bedrijfstemperatuur (T-T): | 0 - 40 °C |
| Relatieve vochtigheid in bedrijf (V-V): | 0 - 80 procent |
| Output interface: | DVI-I |
| Extended display identification data (EDID): | Ja |
| Audio support: | Nee |
| Aantal video-uitgangen: | 1 |
| Aantal video-ingangen: | 1 |
