Thank you for purchasing TOA's Paging Microphone.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

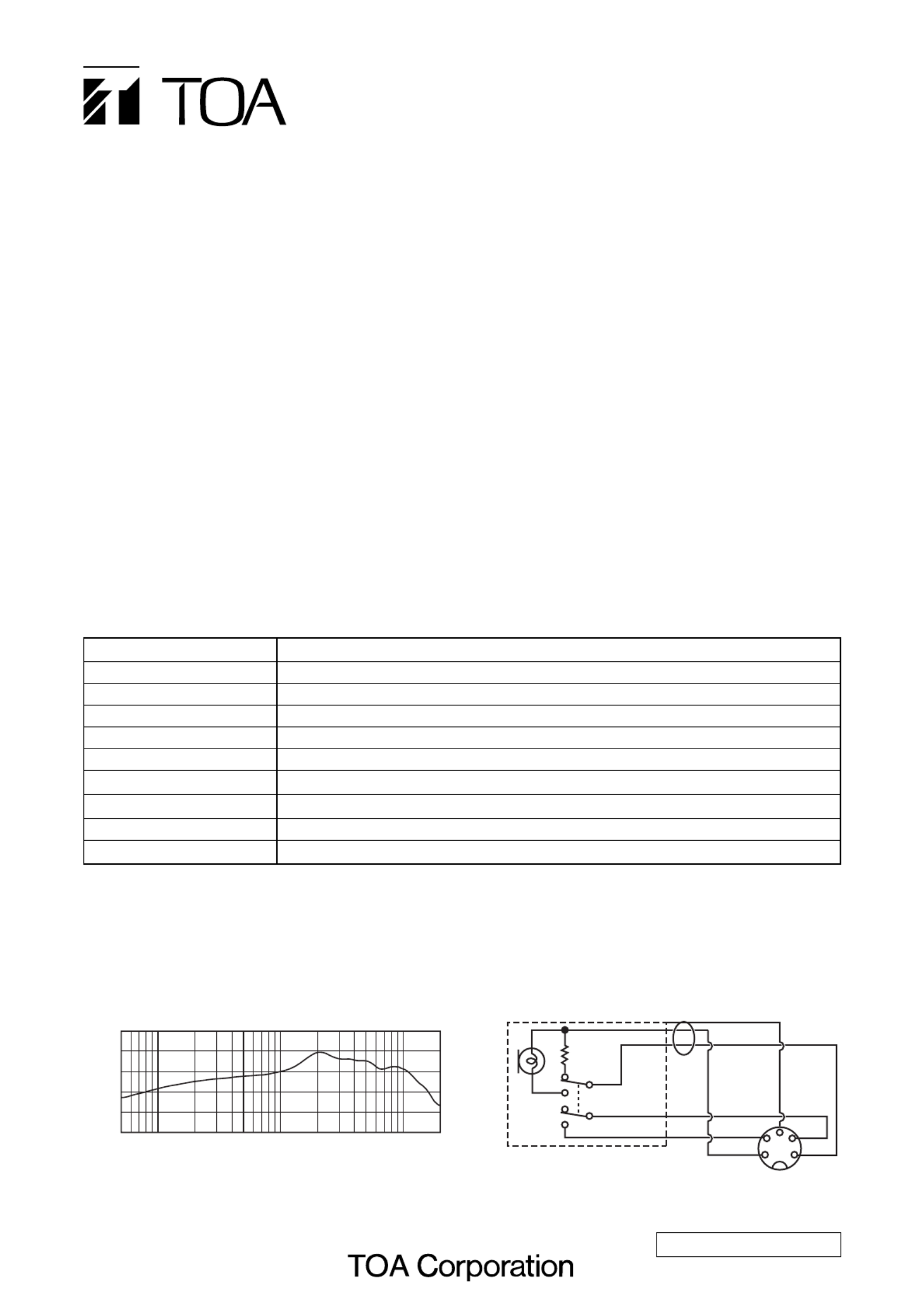

PM-306DPAGING MICROPHONE
INSTRUCTION MANUAL
1. FEATURES
• Paging microphone with push-to-talk switch and make output (for muting)
• Heavy-duty metallic body, durable microphone cable, and built-in push-to-talk switch to assure excellent
durability against rough handling
• High intelligibility thanks to ambient noise-, handling noise- and pop-free design
• Two-meter coiled cable with 5-pin DIN plug for use with the TOA amplifiers
• 600 , balanced outputΩ
2. HANDLING PRECAUTIONS
• Do not drop unit from high above the floor.
• To ensure a prolonged period of use, do not install this unit in areas where it may be splashed by water or
dust accumulates.
• Speak as close to the microphone as possible.
3. SPECIFICATIONS
Type Dynamic, hand-held
Polar Pattern Omnidirectional
Output Impedance 600 Ω, balanced (at 1 kHz)
Recommended Load More than 600 Ω
Output Level (at 1 kHz) –53 dB (0 dB = 1 V/Pa)
Frequency Response 80 – 16,000 Hz
Cable Coiled cable, ø6 mm x 2 m (at a maximum extended length)
Talk Switch Push-to-talk type
Remote Control Capacity Make output of 30 V DC, 0.1 A max.
Weight 330 g
Note: The design and specifications are subject to change without notice for improvement.
• Accessory
Microphone holder ..................................... 1
4. FREQUENCY RESPONSE 5. SCHEMATIC DIAGRAM
20
[dB]
10
0
–10
–20
–30 50 100 500 1k 5k 10k 20k [Hz]
Frequency
Relative response
Red
Blue
Black
Shield
White
5-pin DIN plug
2
5
3
4
1
–
+
4.7 kΩ
Push-to-talk
133-04-172-3C
