QUICK START GUIDE
Fin-Acapella/Conference/Play-20
Thank you for purchasing this system!
Package includes:
• 4X Digital-Quad Fixed Frequency Systems (900MHz)
• 1X Digital-Quad Selectable Frequency System (500MHz)
• 1X Benchmark Antenna Distributor w/ 2 Fin Antennas
• 5X XLR Quad Cables – 6’ Length

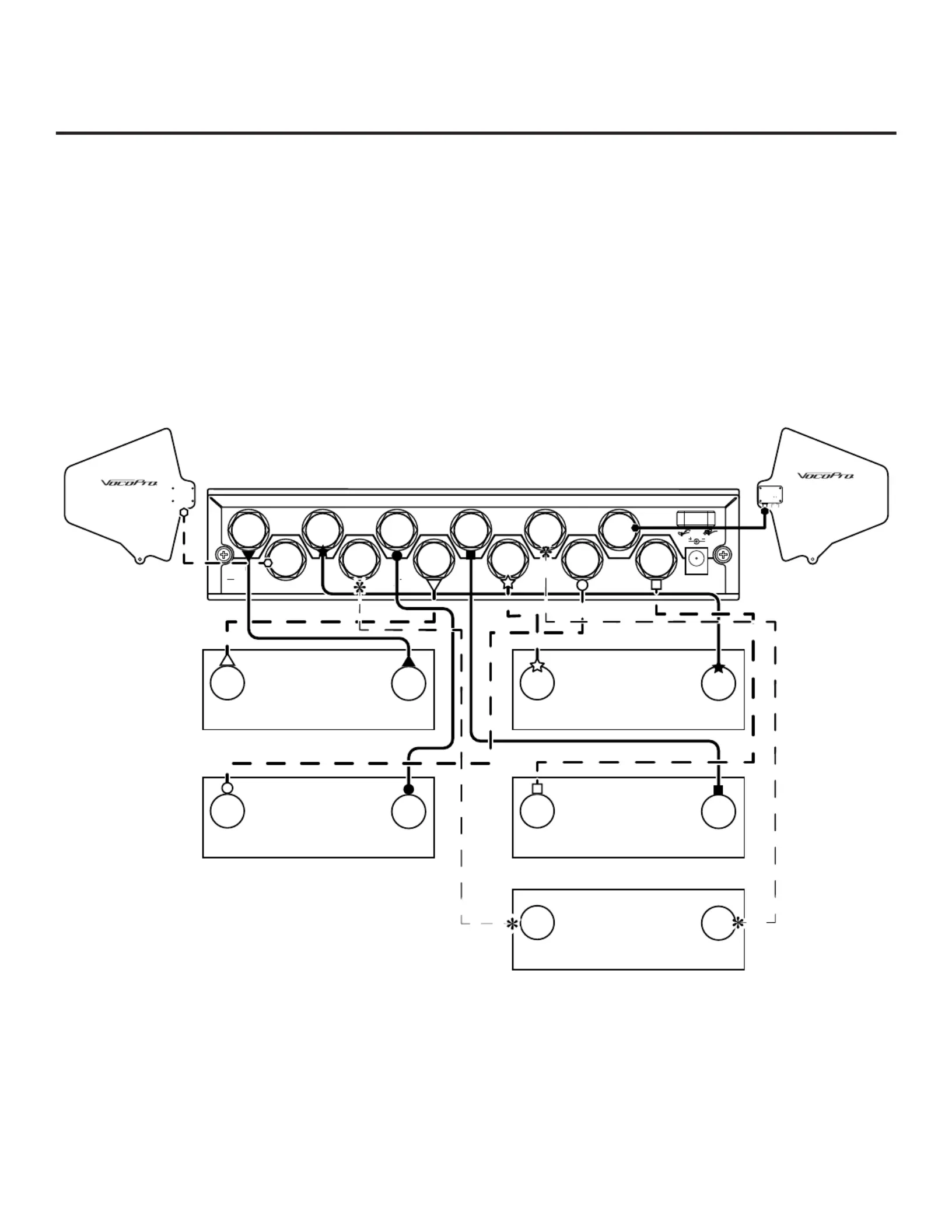

This diagram shows how to connect the Fin Antennas to the Antenna Distributor as well as how to
connect the Antenna Distributor to each of the ve receivers. Please see each item’s User Manual
for further details.
DCIN - -- 12 ~15V
ANTRF
INA
CASC AD EA4A3
A2A1
B1~ 4
ANT RF INB CAS ADE
DCOUT - 1 2~15V
3000m ~40 00 mA
3000mA ~4 00 0mA
DC O UT
---1 2~ 1 V/
1500 mA
A1 A2 A3
A4
RF
RF
B1
B2
B3
B4B
A
A1
B1
L R
RECEIVER
1
A2
B2
L R
RECEIVER
2
A3
B3
L R
RECEIVER
3
A4
B4
L R
RECEIVER
4
A5
B5
L R
RECEIVER
5
DIR ECT IONA L
ANT ENN A
470 -98 0MHz
0dB
+10dB
0dB +10dB
• Use the BNC cables to connect from the Antenna A sockets on each receiver to the A1, A2,
A3, and A4 sockets on the top row of the Distributor. Connect from the Antenna B sockets on
each receiver to the B1, B2, B3, and B4 sockets on the Distributor. For the fth receiver, use
Cascade A and Cascade B to connect to the receiver’s Antenna Inputs.
• Connect from the Antenna RF in A and Antenna RF in B to each of the Directional Antennas.
