Specifications are subject to change without notice.
© 2020 VTech Communications, Inc. All rights reserved.
08/20. BM4700_QSG_V1.
1
Connect the baby monitor
2 Power on or off the baby monitor
What’s in the box
Basic operation - Parent unit
Overview - Parent unit
Overview - Baby unit
Frequency control Crystal controlled PLL synthesizer
Transmit frequency Baby unit: 2405 - 2475 MHz
Parent unit: 2405 - 2475 MHz
Channels 32
LCD 5” Color LCD
(WQVGA 480x272 pixel)
Nominal effective range Actual operating range may vary according to environmental
conditions at the time of use.
Power requirements Parent unit: 3.6V Ni-MH battery
Baby unit power adapter: Output: 5V DC @ 1A
Parent unit power adapter: Output: 5V DC @ 1A
Technical specifications
Credits:
The Background Noise sound file was created by Caroline Ford, and is used under the Creative Commons license.
The Stream Noise sound file was created by Caroline Ford, and is used under the Creative Commons license.
The Crickets At Night sound file was created by Mike Koenig, and is used under the Creative Commons license.
The Heart Beat sound file was created by Zarabadeu, and is used under the Creative Commons license.
The applied nameplate is located at the bottom of the
baby unit’s base.
When using your equipment, basic safety precautions
should always be followed to reduce the risk of fire,
electric shock and injury, including the following:
1. Follow all warnings and instructions marked on the
product.
2. Adult setup is required.
3. CAUTION: Do not install the baby unit at a height
above 2 meters.
4. This product is not a substitute for adult supervision of the
infant. Supervising the infant is the parent’s or caregiver’s
responsibility. This product could cease operating, and
therefore you should not assume it will continue working
properly for any given period of time. Further, this is not
a medical device and should not be used as such. This
product is intended to assist you in supervising your baby.
5. Do not use this product near water. For example, do
not use it next to a bath tub, wash bowl, kitchen sink,
laundry tub or swimming pool, or in a wet basement
or shower.
6. CAUTION: Use only the battery provided. There may be a
risk of explosion if a wrong type of battery is used for the
parent unit. The battery cannot be subjected to high or low
extreme temperature and low air pressure at high altitude
during use, storage or transportation. Disposal of battery
into fire or a hot oven, or mechanically crushing or cutting or
the battery can result in an explosion. Leaving the battery in
an extremely high temperature surrounding environment
can result in an explosion or the leakage of flammable liquid
of gas. Battery subjected to extremely low air pressure may
result in an explosion or the leakage of flammable liquid or
gas. Dispose of used battery according to the information in
The RBRC® seal.
7. Use only the adapters included with this product.
Incorrect adapter polarity or voltage can seriously
damage the product.
Baby unit power adapter: Output: 5V DC 1A;
Parent unit power adapter: Output: 5V DC 1A.
8. The power adapters are intended to be correctly
oriented in a vertical or floor mount position. The
prongs are not designed to hold the plug in place if it
is plugged into a ceiling, under-the-table or cabinet
outlet.
9. For pluggable equipment, the socket-outlet shall
be installed near the equipment and shall be easily
accessible.
10. Unplug this product from the wall outlet before cleaning.
Do not use liquid or aerosol cleaners. Use a damp cloth
for cleaning.
11. Do not cut off the power adapters to replace them with
other plugs, as this causes a hazardous situation.
12. Do not allow anything to rest on the power cords. Do
not install this product where the cords may be walked
on or crimped.
13. This product should be operated only from the type
of power source indicated on the marking label. If you
are not sure of the type of power supply in your home,
consult your dealer or local power company.
14. Do not overload wall outlets or use an extension cord.
15. Do not place this product on an unstable table, shelf,
stand or other unstable surfaces.
16. This product should not be placed in any area where
proper ventilation is not provided. Slots and openings
in the back or bottom of this product are provided for
ventilation. To protect them from overheating, these
openings must not be blocked by placing the product
on a soft surface such as a bed, sofa or rug. This product
should never be placed near or over a radiator or heat
register.
17. Never push objects of any kind into this product
through the slots because they may touch dangerous
voltage points or create a short circuit. Never spill liquid
of any kind on the product.
18. To reduce the risk of electric shock, do not
disassemble this product, but take it to an authorized
service facility. Opening or removing parts of the
product other than specified access doors may
expose you to dangerous voltages or other risks.
Incorrect reassembling can cause electric shock
when the product is subsequently used.
19. You should test the sound reception every time you
turn on the units or move one of the components.
20. Periodically examine all components for damage.
21. There is a very low risk of privacy loss when using
certain electronic devices, such as baby monitors,
cordless telephones, etc. To protect your privacy,
make sure the product has never been used before
purchase, reset the baby monitor periodically by
powering off and then powering on the units, and
power off the baby monitor if you will not use it for
some time.
22. Children should be supervised to ensure that they do
not play with the product.
23. The product is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
SAVE THESE INSTRUCTIONS
Cautions
1. Use and store the product at a temperature between
0oC and 40oC.
2. Do not expose the product to extreme cold, heat
or direct sunlight. Do not put the product close to a
heating source.
3. Batteries should not be exposed to excessive heat such
as bright sunshine or fire.
4. Make sure the baby unit(s) and the
adapter cord(s) are always out of reach
of the baby, at least 3 feet away from
the baby or crib, to avoid a possible
strangulation hazard.
5. Never place the baby unit(s) inside the baby’s crib or
playpen. Never cover the baby unit(s) or parent unit
with anything such as a towel or a blanket.
6. Other electronic products may cause interference
with your baby monitor. Try installing your baby
monitor as far away from these electronic devices
as possible: wireless routers, radios, cellular
telephones, intercoms, room monitors, televisions,
personal computers, kitchen appliances and
cordless telephones.
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless
devices):
Wireless Technology Research, LLC (WTR), an independent
research entity, led a multidisciplinary evaluation of the
interference between portable wireless devices and
implanted cardiac pacemakers. Supported by the U.S. Food
and Drug Administration, WTR recommends to physicians
that:
Pacemaker patients
• Should keep wireless devices at least six inches from the
pacemaker.
• Should NOT place wireless devices directly over the
pacemaker, such as in a breast pocket, when it is turned
ON.
WTR’s evaluation did not identify any risk to bystanders with
pacemakers from other persons using wireless devices.
Electromagnetic fields (EMF)
This VTech product complies with all standards regarding
electromagnetic fields (EMF). If handled properly and
according to the instructions in this user’s manual, the
product is safe to be used based on scientific evidence
available today.
Important safety instructions
1
2
4
5
6
7
8
3
10
9
14
11
12
13
1LED lights
2LCD display
3Microphone
4POWER
5TALK
6MENU/SELECT
Need help?
For operations and guides to help you using your video monitor, and for latest
information and supports, go and check the online help topics and online FAQs.
Use your smartphone or mobile device to access our online help.
• Go to https://auphones.vtech.com/baby-safe-and-sound/
video-monitors/478; OR
Scan the QR code on the right. Launch the camera app or
QR code scanner app on your smartphone or tablet. Hold
the device’s camera up to the QR code and frame it. Tap
the notification to trigger the redirection of the online help.
- If the QR code is not clearly displayed, adjust your
camera’s focus by moving your device closer or
further away until it is clear.
You can also call our Customer Support at 1300 369 193.
S
m
BM4700
Full Color Pan and Tilt
Video Monitor
Go to auphones.vtech.com
for the latest VTech product news.
NOTESNOTE
• The rechargeable battery in the parent unit is built-in.
• Use only the power adapters supplied with this product.
• Make sure the baby monitor is not connected to a switch-controlled electric outlet.
• Connect the power adapters in a vertical or floor mount position only. The adapters’ prongs are not
designed to hold the weight of baby monitor, so do not connect them to any ceiling, under-the-table,
or cabinet outlets. Otherwise, the adapters may not properly connect to the outlets.
• Make sure the parent unit, the baby units and the power adapter cords are out of reach of children.
Slide the switch to power on or off your baby unit.
Press and hold POWER to power on or off your parent unit.
Adjust speaker volume
Press / to adjust your parent unit
speaker volume.
Zoom
Press to zoom in or out.
Talk to your baby unit
Press and hold TALK and speak to your
parent unit. Your voice is transmitted to
the baby unit. Release TALK when finish
talking and hear your baby again.
63ē
Turn off the screen
Press and hold LCD ON/OFF to switch off
the screen. You can still hear sound from the
baby unit.
Tip
• Press any keys on the parent unit to turn on the
screen again.
Press and hold
Use the menu
Press to enter the menu, choose a menu item, or save a
setting. You can use the parent unit for advanced settings or
operations, such as to play or stop the baby unit lullaby, or to
adjust the baby unit sound sensitivity.
While in the menu:
• Press or to scroll among the menu options.
• Press to select an item, or to save a setting.
• Press or to scroll among the sub-menus,
or to adjust a setting.
• Press to return to the previous menu options without
changing the current setting.
• Press to return to live video./EXIT
Quick start guide
x 2 x 2
4 Status check
3 Positioning the baby monitor
Caution
• The default volume of your parent unit is level
4 7, and the maximum volume is level . If you
experience high-pitched screeching noise from
your baby monitor while positioning:
- Make sure your baby unit and parent unit are more
than 1 metre apart, OR
- Lower the volume of your parent unit.
Note
• To avoid interference from other electronic devices,
place your baby monitor at least 1 metre away from
devices such as wireless routers, microwaves, cell
phones and computers.
Parent unit icons
63ē
ē
63ē
≥
< 3ft (1m)
3ft (1m)
63ē
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏
﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
﹏﹏﹏﹏﹏
Long press
Caution
• Keep the baby unit out of the reach of baby. Never place or mount the baby unit inside the your
baby’s cot or playpen.
> 3ft (1m)
>
<
3ft (1m)
3ft (1m)
63ē
63 ē
Once you power on both your
baby unit and parent unit, your
parent unit displays image from
the baby unit, and the LED LINK
light turns on.
The LED light of baby unit ON
turns on.
Main
menu Sub-menu
Brightness
• Adjust the parent unit’s LCD
brightness.
Camera settings
Baby unit speaker volume
• Adjust the baby unit’s
speaker volume.
Monitoring mode (For pairing with
BM5710 only)
• Single mode
• Split mode
• Patrol mode
Add a baby unit (For pairing with
BM5710 only).
Delete a baby unit.
Lullaby
/ Play/Stop lullaby
• Select one of the soothing sounds, or
white noise.
• Select one of the five melodies.
• Play all melodies.
• Set timer to stop playing the selected
melody or soothing sound.
Main
menu Sub-menu
Night light
/ Turn on/off night light
• Select one of the night light colors.
• Set timer to turn the night light off.
• Set to auto turn on the night light when
baby unit detects sound. It will turn off
after 15 minutes of no sound detection.
You can set VOX sensitivity level to
detect sounds that exceed certain
levels. See Sound sensitivity and sound
activation section.
Projection light
/ Turn on/off projection light
• Set timer to turn the projection light off.
• Set to auto turn on the projection light
when baby unit detects sound. It will
turn off after 15 minutes of no sound
detection. You can set VOX sensitivity
level to detect sounds that exceed
certain levels. See Sound sensitivity and
sound activation section.
Alert settings
• Set the parent unit to beep when
the battery is low.
• Set the parent unit to beep when
the link between the parent unit
and the baby unit is lost.
• Set the confirmation tone on or
off when selecting an option in
the menus.
• Set the parent unit to beep
when the baby unit detects
sounds while in mode (For Split
pairing with BM5710 only).
/
• Turn on/off the alert vibration.
Main
menu Sub-menu
Temperature
/
• Turn on/off temperature alert tone.
• Set the parent unit to beeps whenever
the room temperature detected by
the baby unit falls outside of the set
temperature range.
• Set the minimum temperature.
• Set the maximum temperature.
• Set temperature display in Fahrenheit
(oF) or Celsius (oC)
Sound activation - screen and audio
/ Turn on/off sound activation
• Set sound activation on or off.
• When it is on, and the baby unit
detects no sound, the parent unit
screen stays off to save power. Once
a sound is detected, the parent
unit screen and speaker turns on
automatically, and you can see and
hear your baby. The parent unit will
then turn off again after 50 seconds of
no sound detection.
Note
• When the parent unit screen is off
and it receives alerts, for example, link
lost between parent unit and baby
unit, or battery is low, the parent unit
screen and speaker will turn on for 10
seconds.
VOX (Voice Activated Alert) Sensitivity
• You can set VOX sensitivity level to
activate parent unit screen and sound
when baby unit detects sounds that
exceed certain levels. See Sound
sensitivity and sound activation
section.
Main menu icons
7Arrow keys
• While viewing image from
the baby unit, press to
pan and tilt the baby unit
leftward, upward, rightward
or downward.
8 Volume
9VIEW /LCD ON/OFF
10 /EXIT
11 Antenna
12 RESET
13 Stand
14 Power jack
P onower
P fower of
5
3
4
2
1
6
7
8
9
12
10
11
14
13
1Light sensor
2Camera lens
3Microphone
4Night light
5On/Off switch
6On/Off LED light
• On when the baby unit is
turned on and is paired to the
parent unit.
• Flashes when the baby unit is
not being viewed;
or when the link to the parent
unit is lost.
7Projection light
8Speaker
9 Projection light on/off key
10 Night light on/off key
11 Power jack
12 Temperature sensor
13 PAIR key
14 Slots for wall mounting
Long press
Power off
Long press
Power on

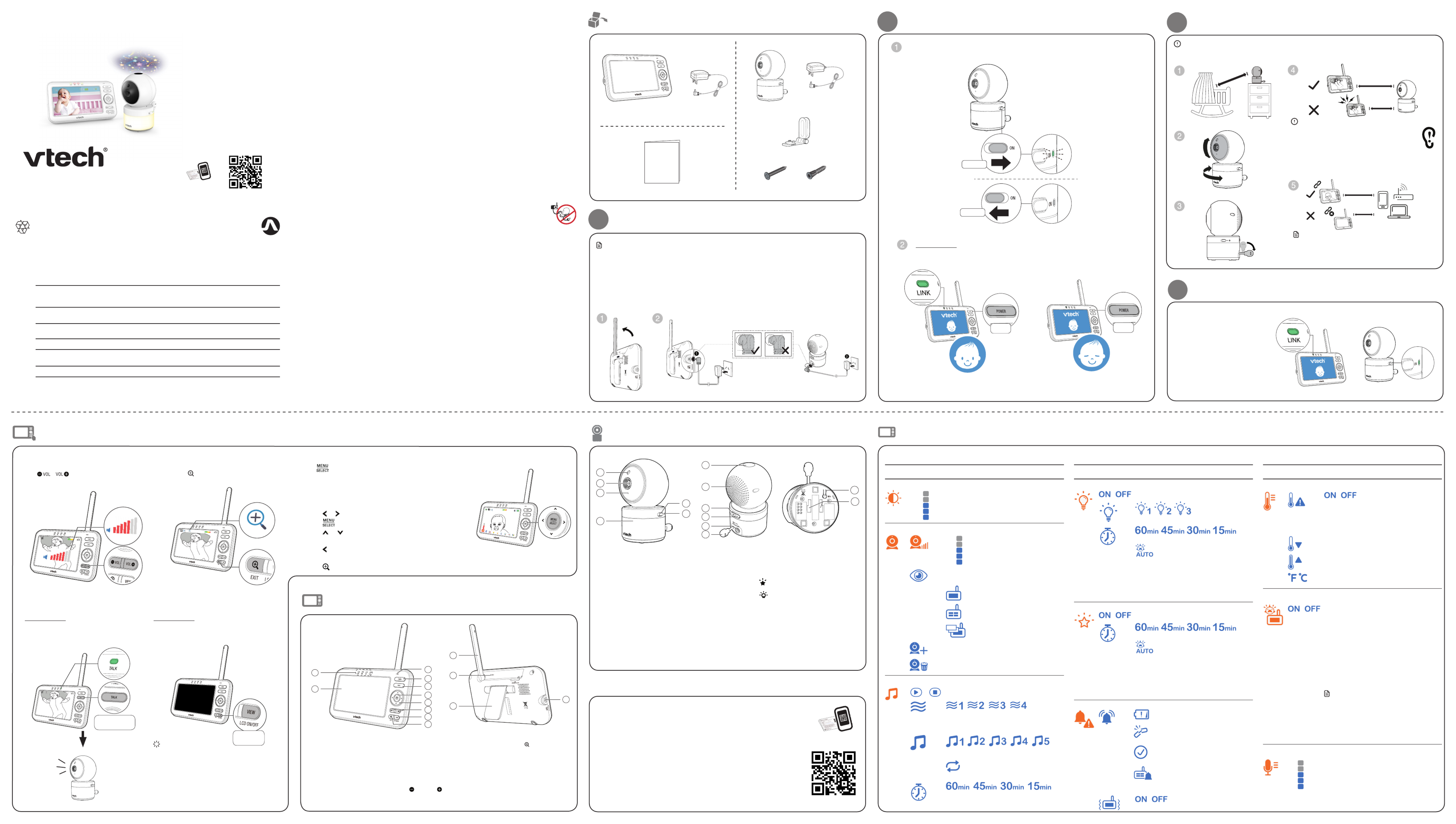

Quick start guide
For more support information
S
m
Probleemoplossing VTech BM4700
Als je de handleiding al zorgvuldig hebt gelezen maar geen oplossing voor je probleem hebt gevonden, vraag dan andere gebruikers om hulp
Specificaties
| Merk: | VTech |
| Categorie: | Babyfoon |
| Model: | BM4700 |
