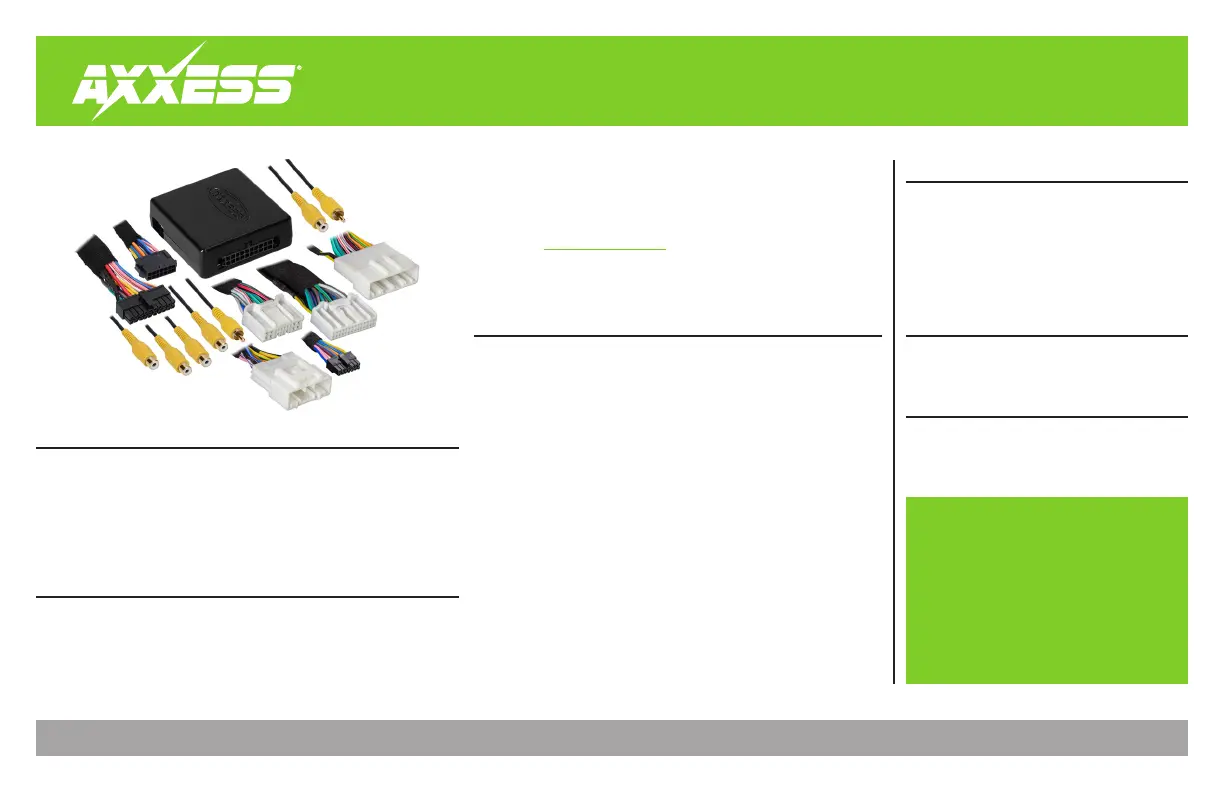

AXAC-MZ2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 7/14/25 INSTAXAC-MZ2
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
TOOLS REQUIRED
INTERFACE COMPONENTS
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction ...........................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................6
• Add multiple CAN-activated cameras with 4 camera inputs
• Includes AXAC camera interface and vehicle-specific harness
• Programmable 12-volt 5-amp switched output (configured through
the Axxess Updater program)
• Reverse signal trigger generated via CAN bus communication of
the vehicle
•
Turn signal trigger generated via CAN bus communication of
the vehicle
• 4 programmable camera control wires (configured through the
Axxess Updater program)
•
Can also be manually controlled and used along with an
aftermarket radio
• Retains backup camera
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
• AXAC-MZ2 interface
• AXAC-MZ2 interface harness
• AXAC-MZ2 vehicle harness (qty. 2)
• 18-pin T-harness
• 28-pin T-harness (cam harness)
Update Cable: AXUSB-MCBL (sold separately)
Axxess Updater Program
Camera Data Interface with Pre-Wired Harness
Fits Select Mazda Models 2013-2018
APPLICATIONS
Mazda
CX-9 ............................................................2013-2016
Mazda 3 ...................................................... 2014-2018
INTERFACE FEATURES
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
